DTC P1001: Data Link Connector Malfunction

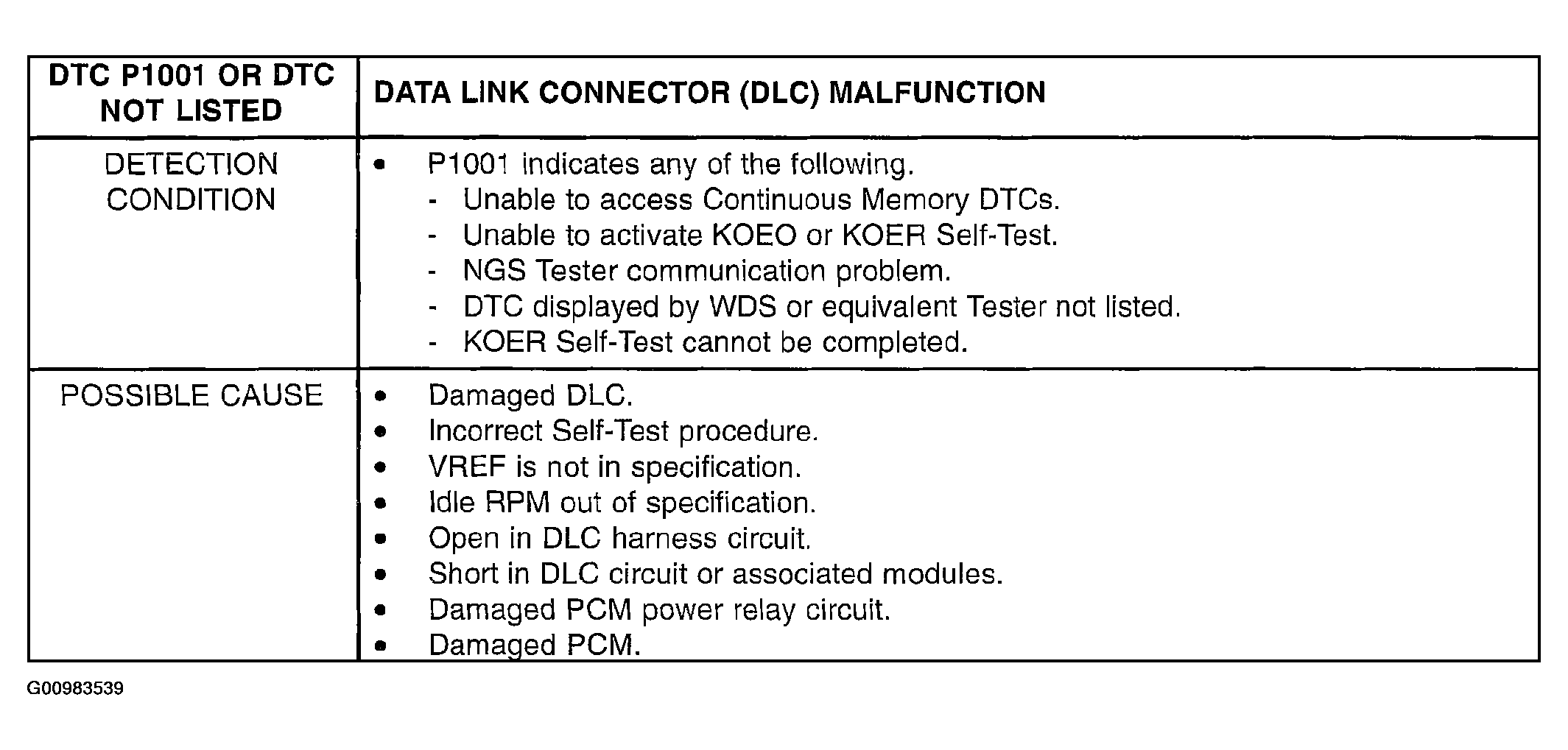

Fig 1: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: Detection Condition & Possible Cause

Courtesy of MAZDA MOTORS CORP.

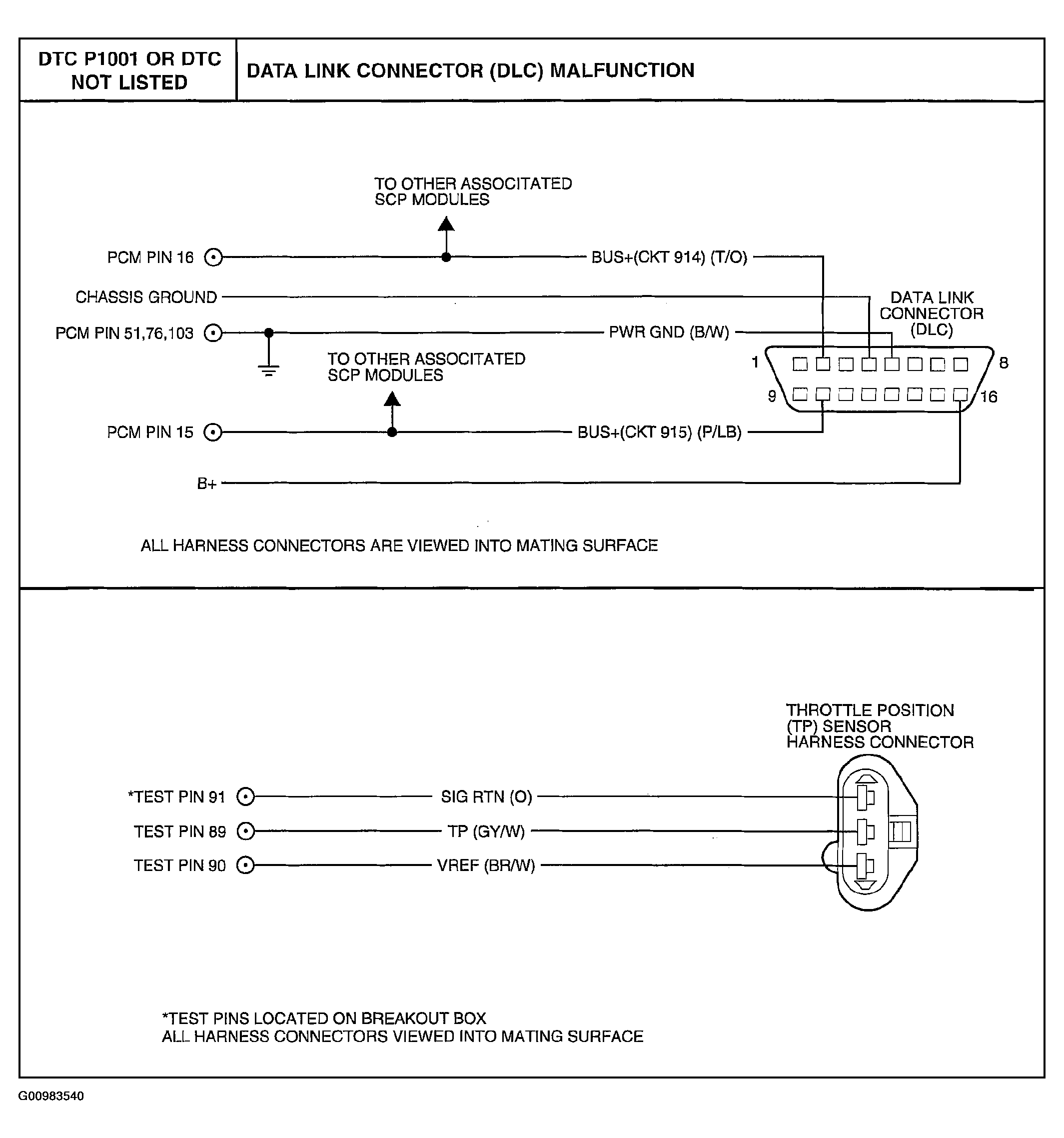

Fig 2: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: DLC & Throttle Position Sensor Harness Connector Views

Courtesy of MAZDA MOTORS CORP.

Fig 3: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

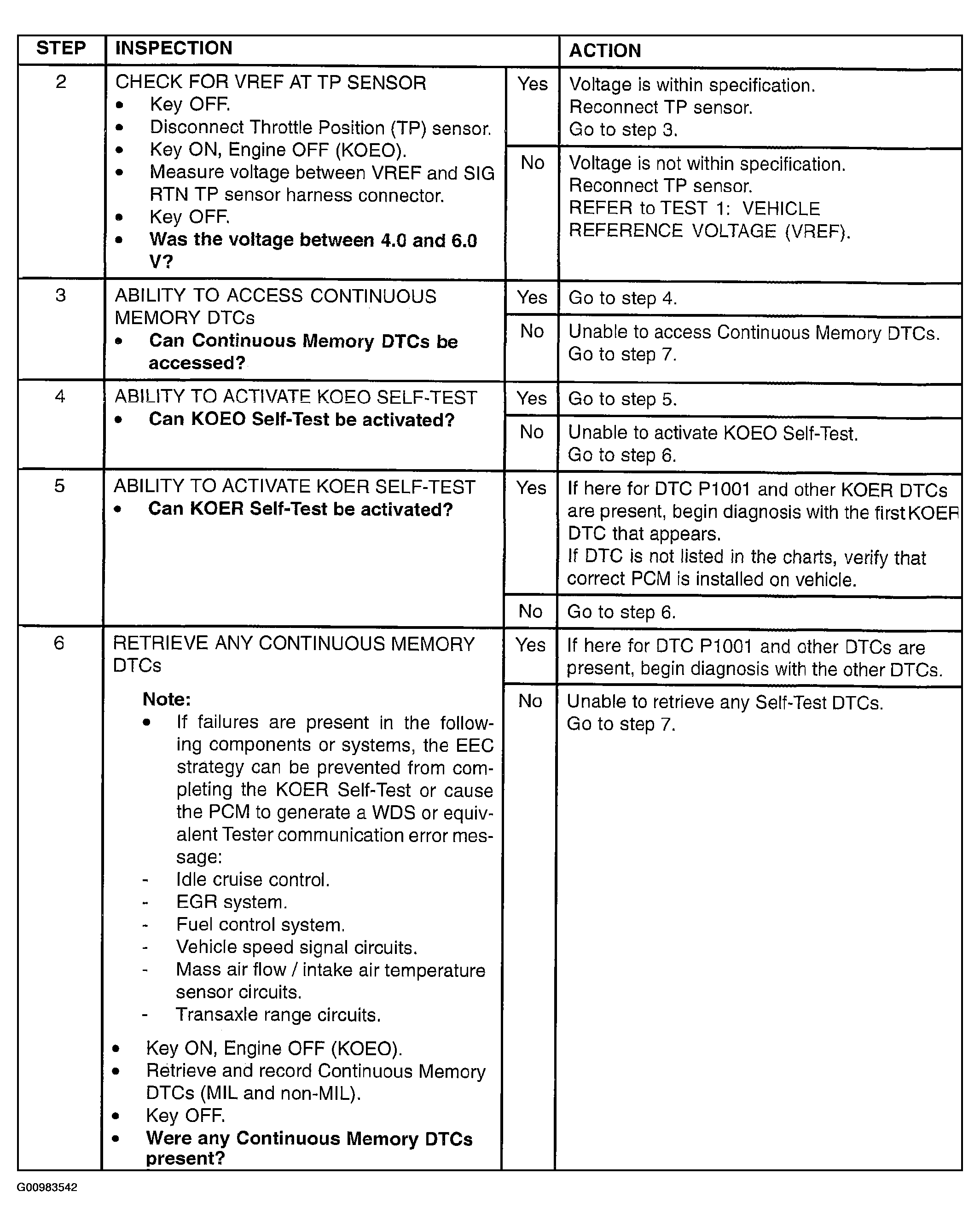

Fig 4: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: Inspection (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

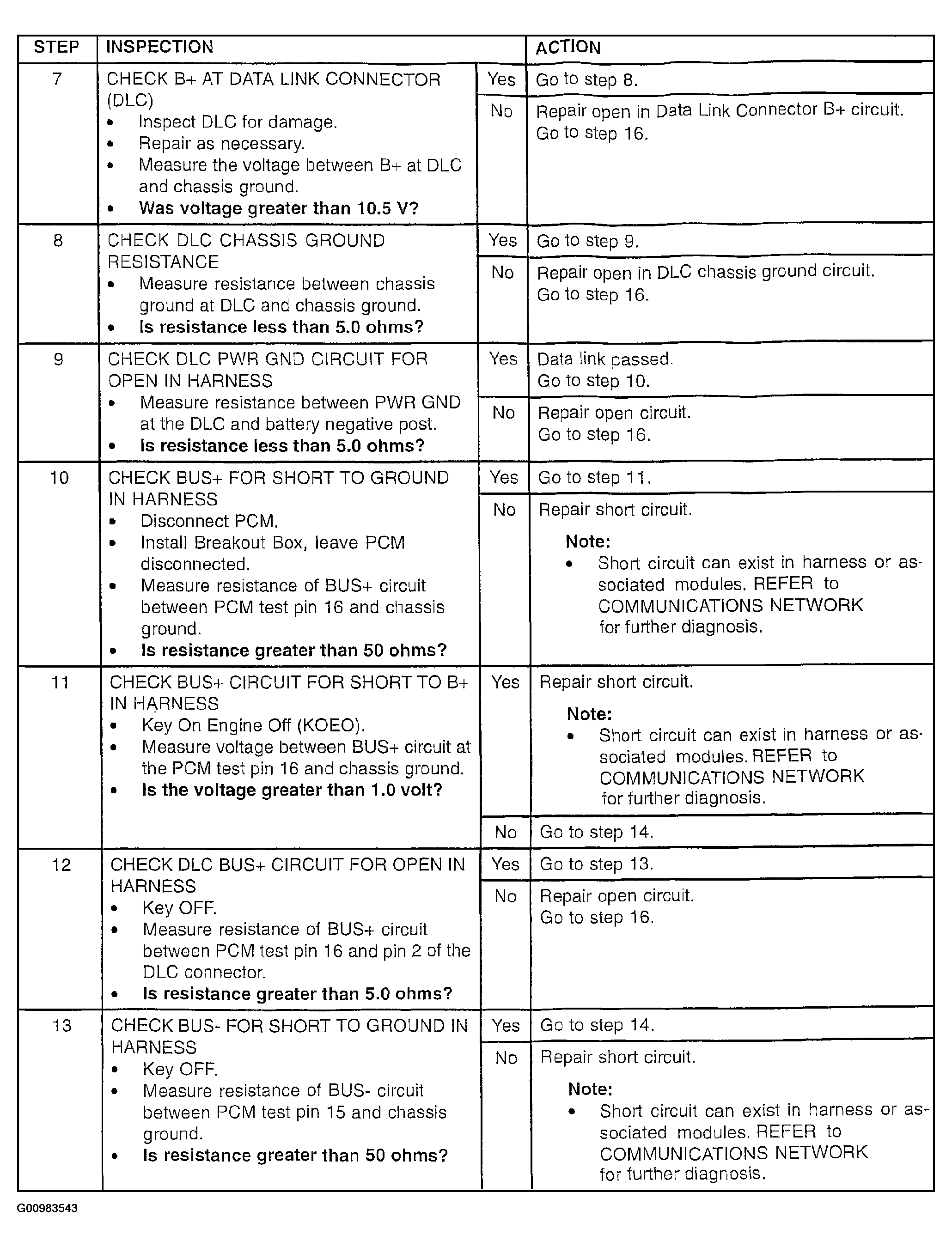

Fig 5: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: Inspection (Steps 7-13)

Courtesy of MAZDA MOTORS CORP.

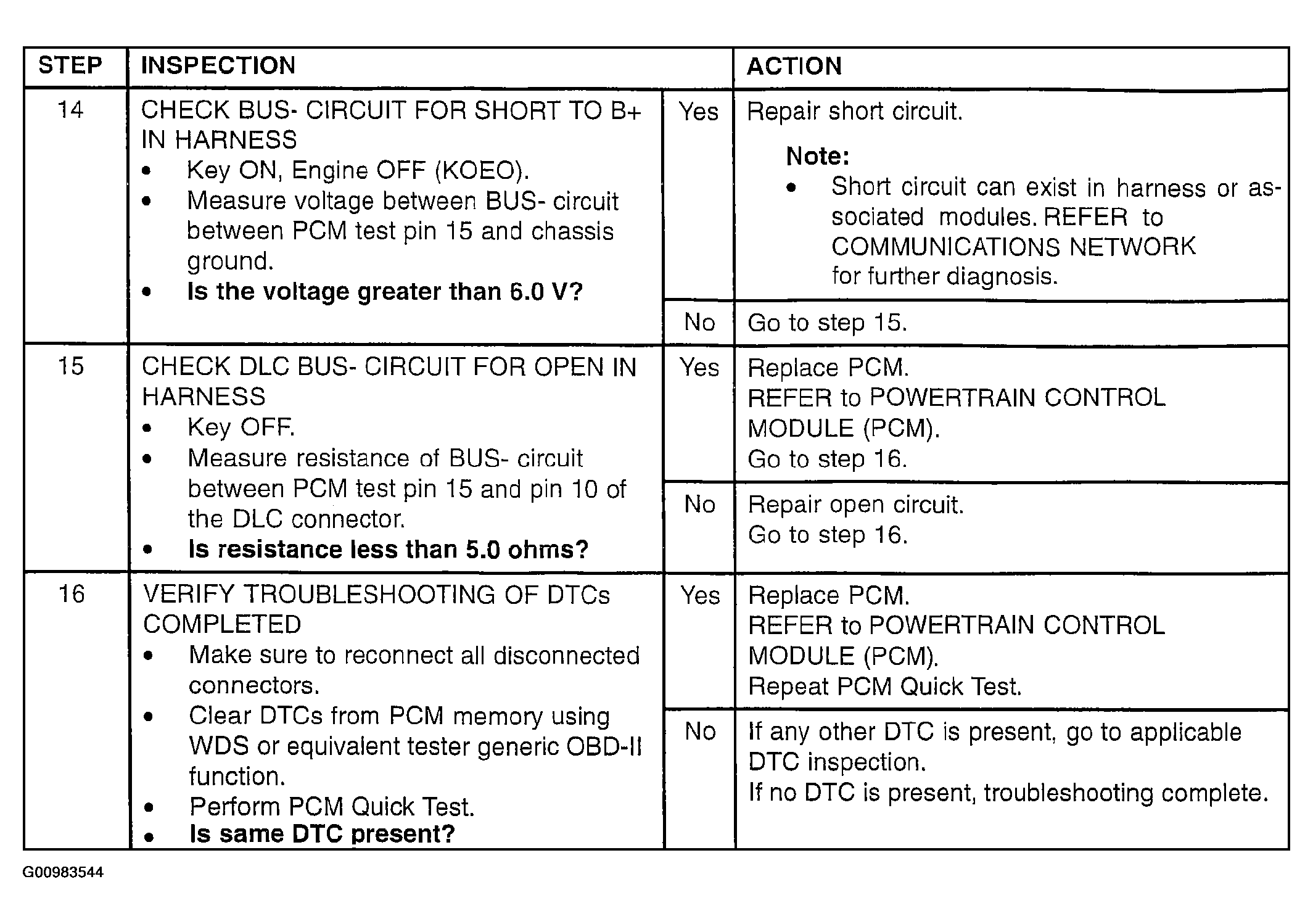

Fig 6: DTC P1001, Or DTC Not Listed Data Link Connector Malfunction: Inspection (Steps 14-16)

Courtesy of MAZDA MOTORS CORP.
