DTC P0402: EGR System Malfunction

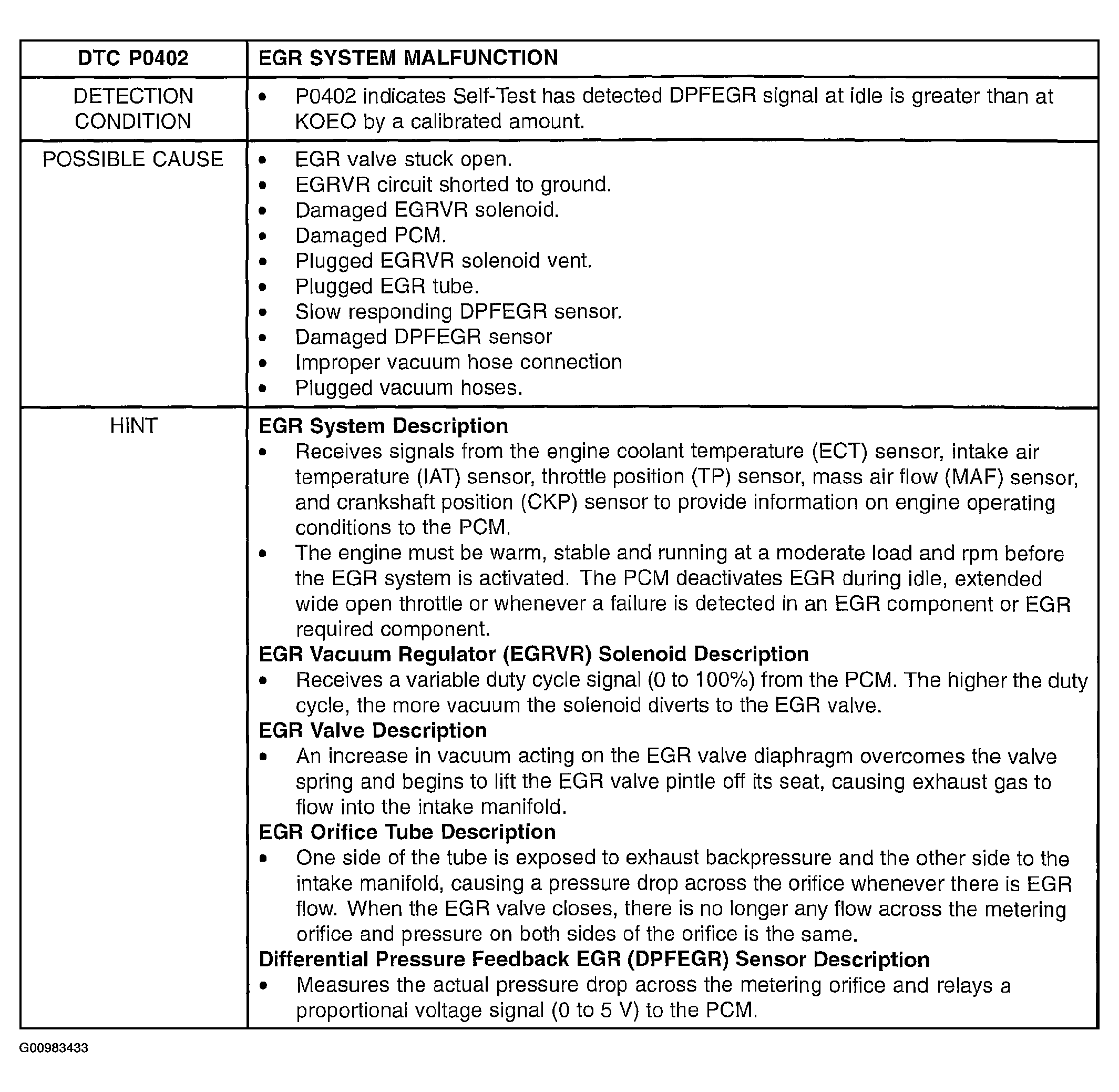

Fig 1: DTC P0402 EGR System Malfunction: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

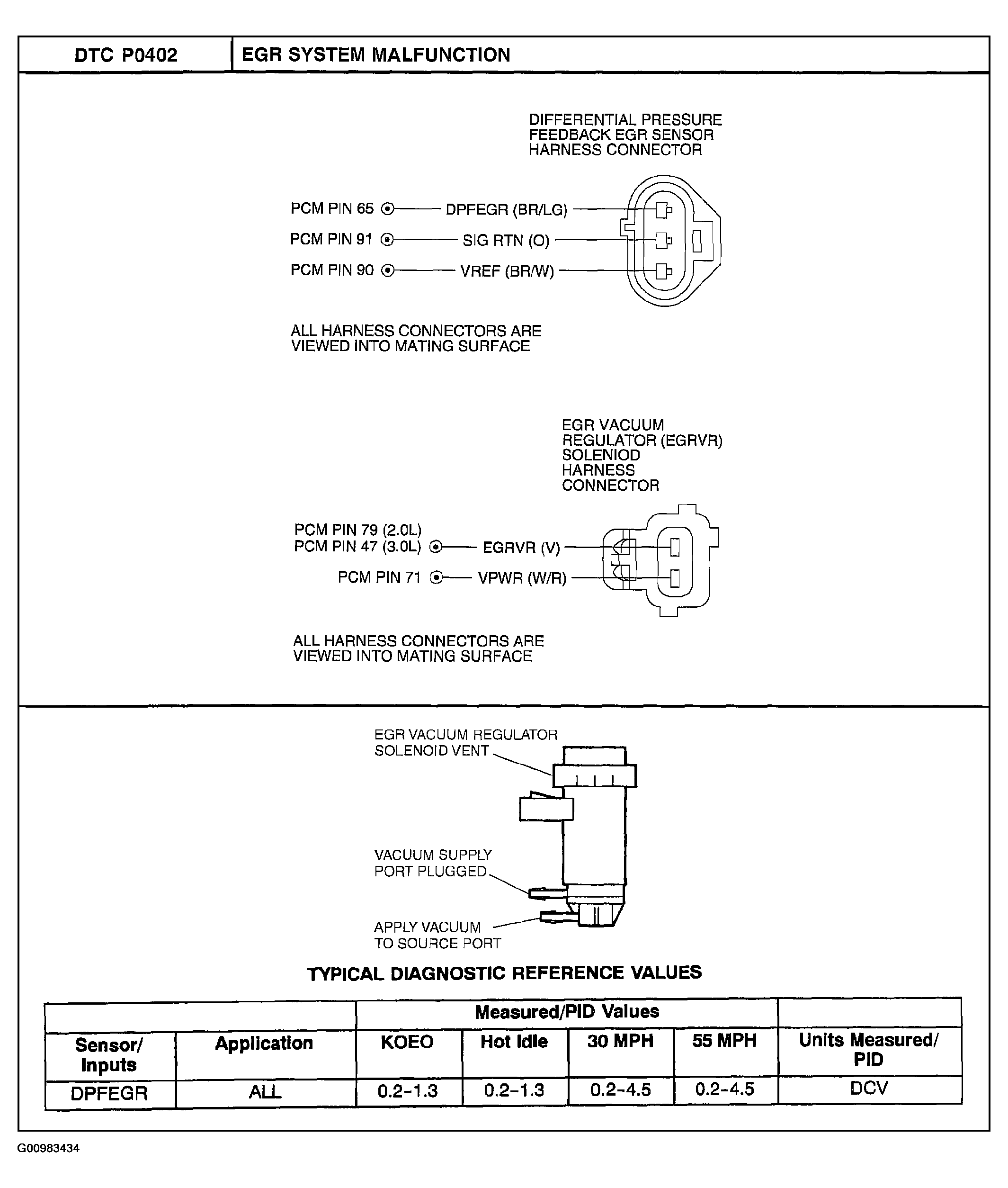

Fig 2: DTC P0402 EGR System Malfunction: EGR Pressure Feedback, Vacuum Regulator Solenoid Harness Connector Views & Typical Diagnostic Reference Values

Courtesy of MAZDA MOTORS CORP.

Fig 3: DTC P0402 EGR System Malfunction: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

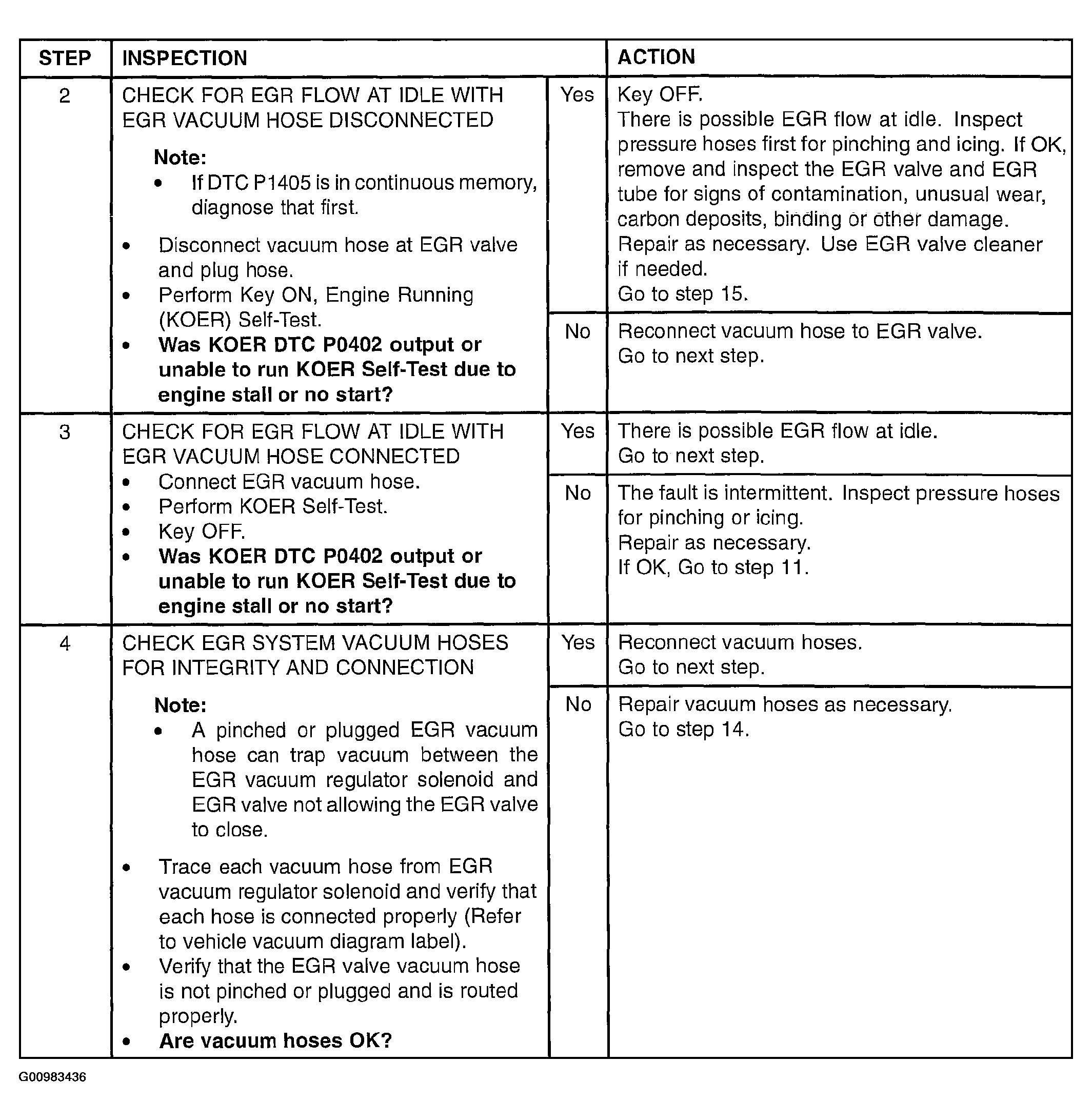

Fig 4: DTC P0402 EGR System Malfunction: Inspection (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.

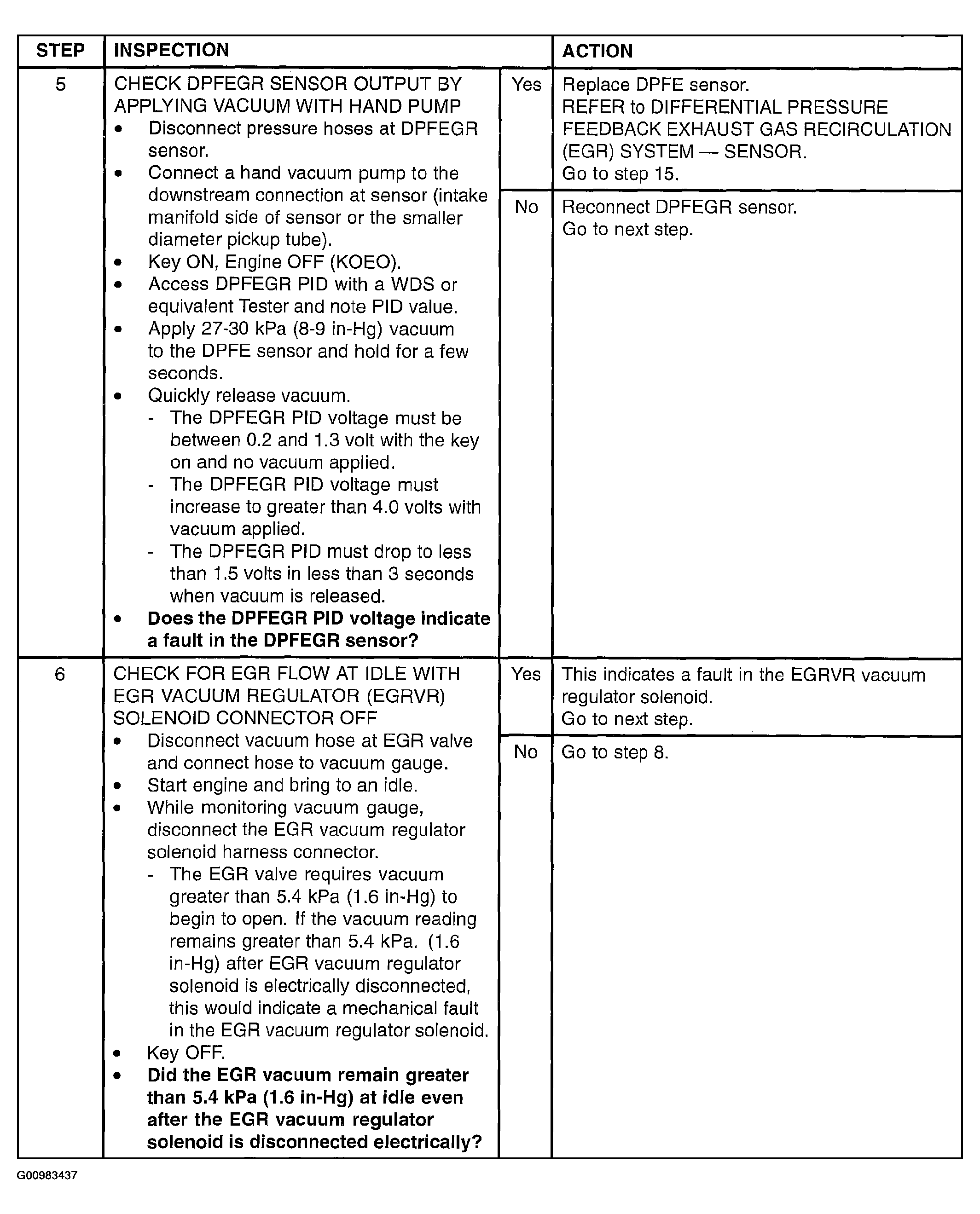

Fig 5: DTC P0402 EGR System Malfunction: Inspection (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

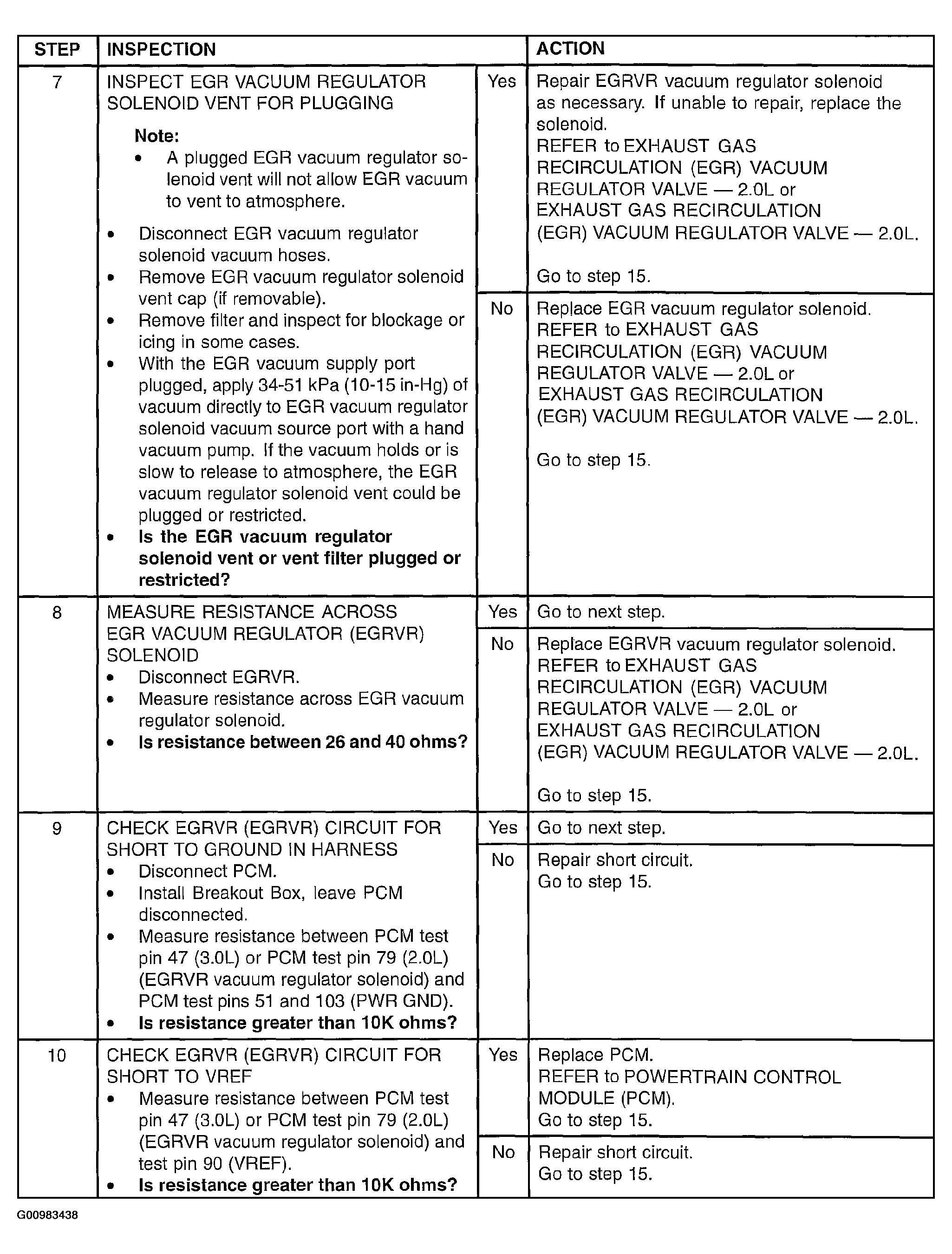

Fig 6: DTC P0402 EGR System Malfunction: Inspection (Steps 7-10)

Courtesy of MAZDA MOTORS CORP.

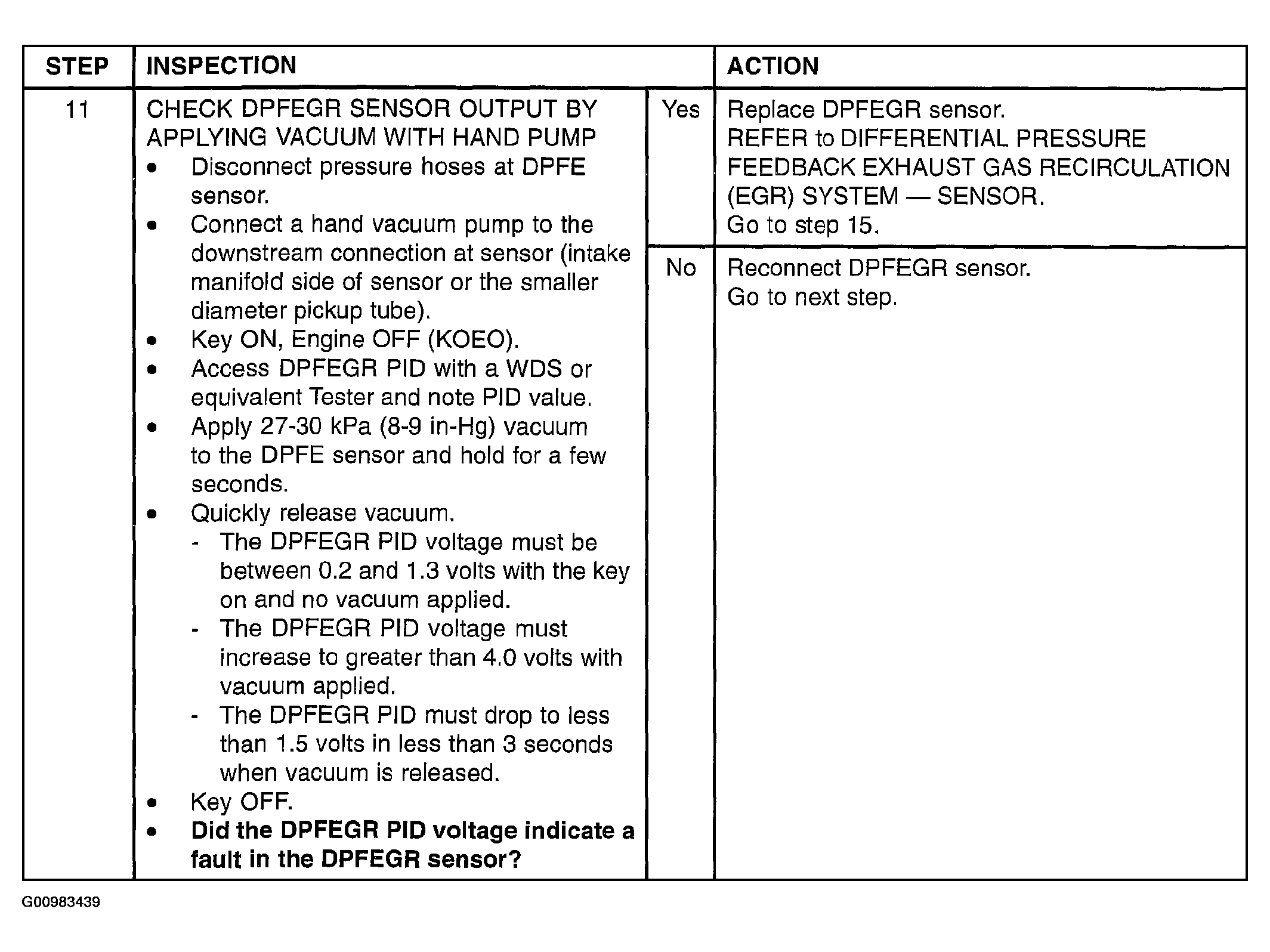

Fig 7: DTC P0402 EGR System Malfunction: Inspection (Step 11)

Courtesy of MAZDA MOTORS CORP.

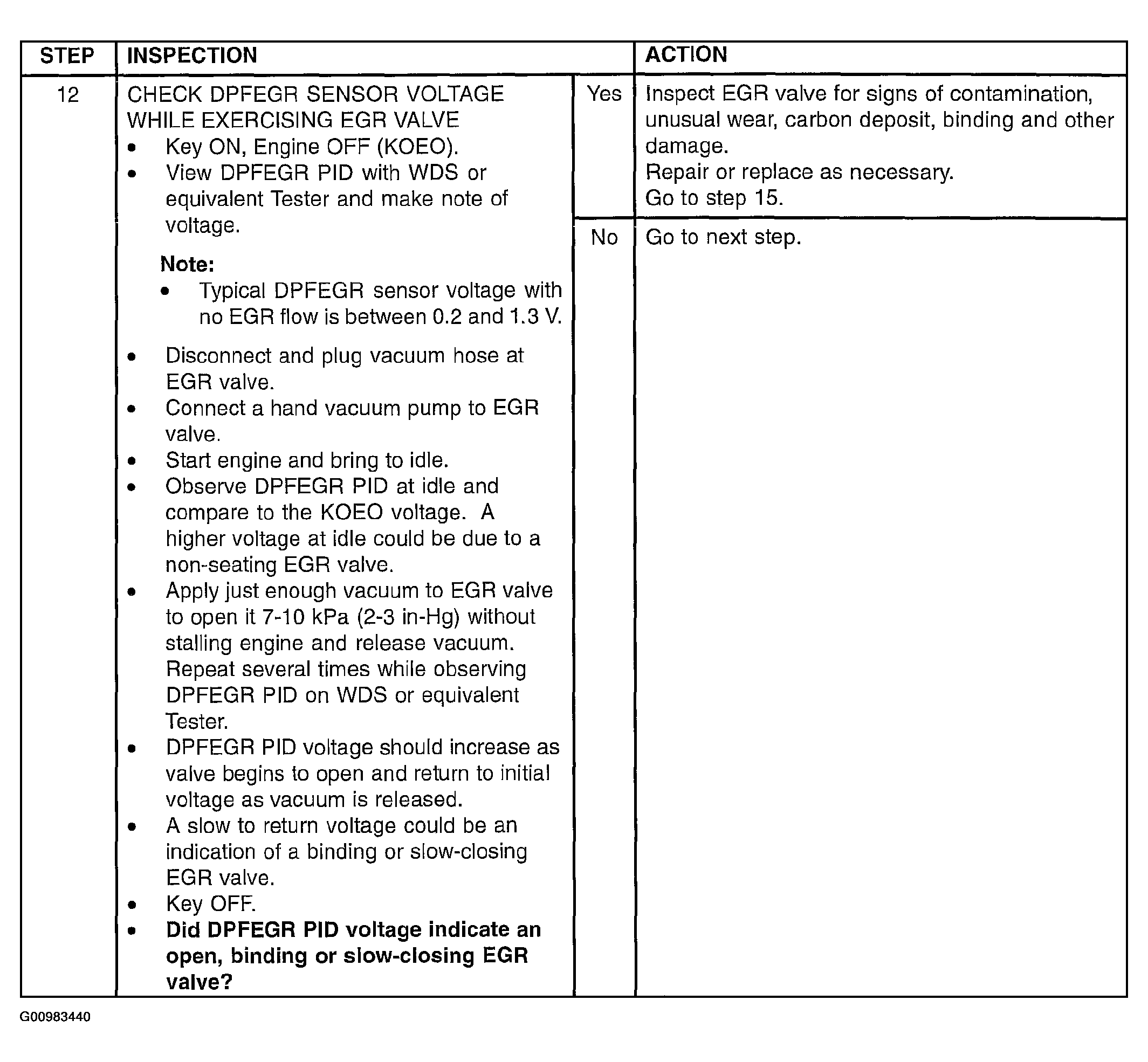

Fig 8: DTC P0402 EGR System Malfunction: Inspection (Step 12)

Courtesy of MAZDA MOTORS CORP.

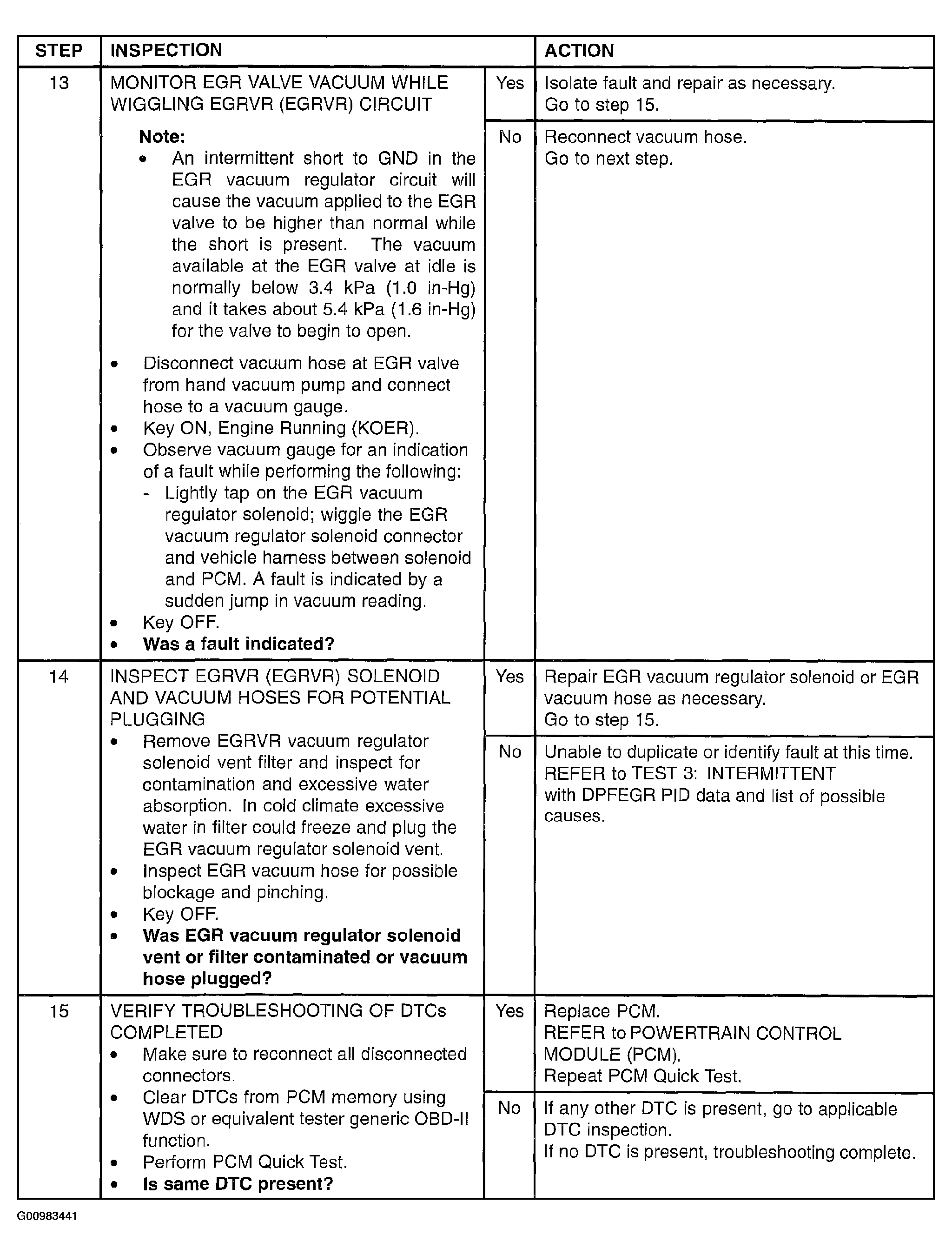

Fig 9: DTC P0402 EGR System Malfunction: Inspection (Steps 13-15)

Courtesy of MAZDA MOTORS CORP.
