Removal and Installation

All vehicles

1. Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

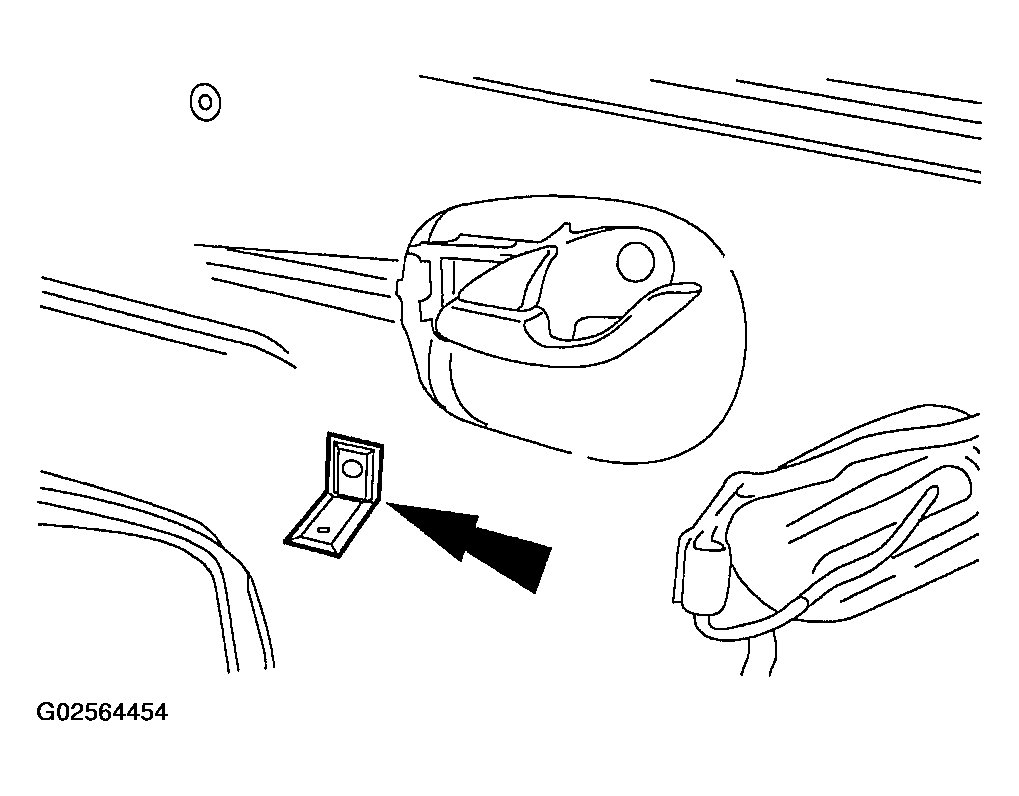

   Fig 1: Removing Screw And Front Door Trim Panel Bracket

   Courtesy of MAZDA MOTORS CORP.
2. Remove the screw and the front door trim panel bracket.
3. Position the water shield aside.
   Fig 2: Connecting Window Control Switch Electrical Connector

   Courtesy of MAZDA MOTORS CORP.

   Vehicles with power windows

4. Connect the window control switch electrical connector.
5. Connect the battery. Refer to BATTERY DISCONNECT .

   All vehicles

6. Lower the front door window glass to gain access to the screws.

   Vehicles with power windows

7. Disconnect the battery. Refer to BATTERY DISCONNECT .
8. Disconnect the window control switch electrical connector.

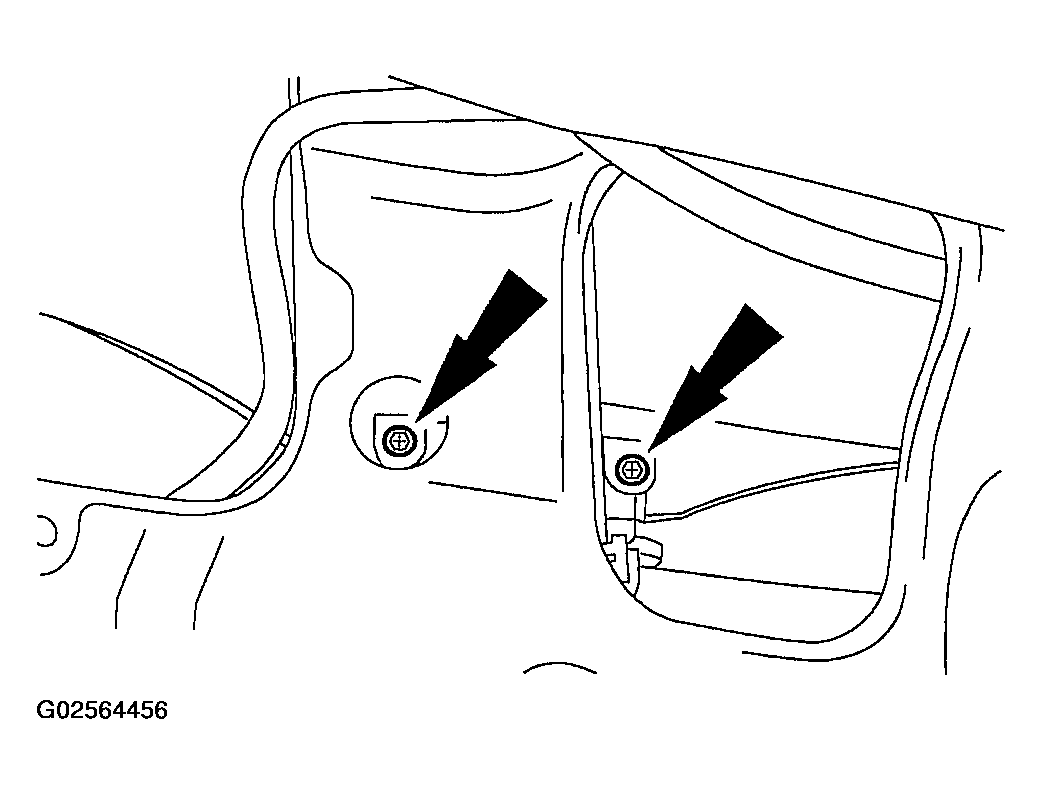

   Fig 3: Removing Front Door Window Glass Screws

   Courtesy of MAZDA MOTORS CORP.

   All vehicles

9. Remove the front door window glass screws.
10. Support the front door window glass in the full up position.

    Vehicles with power windows

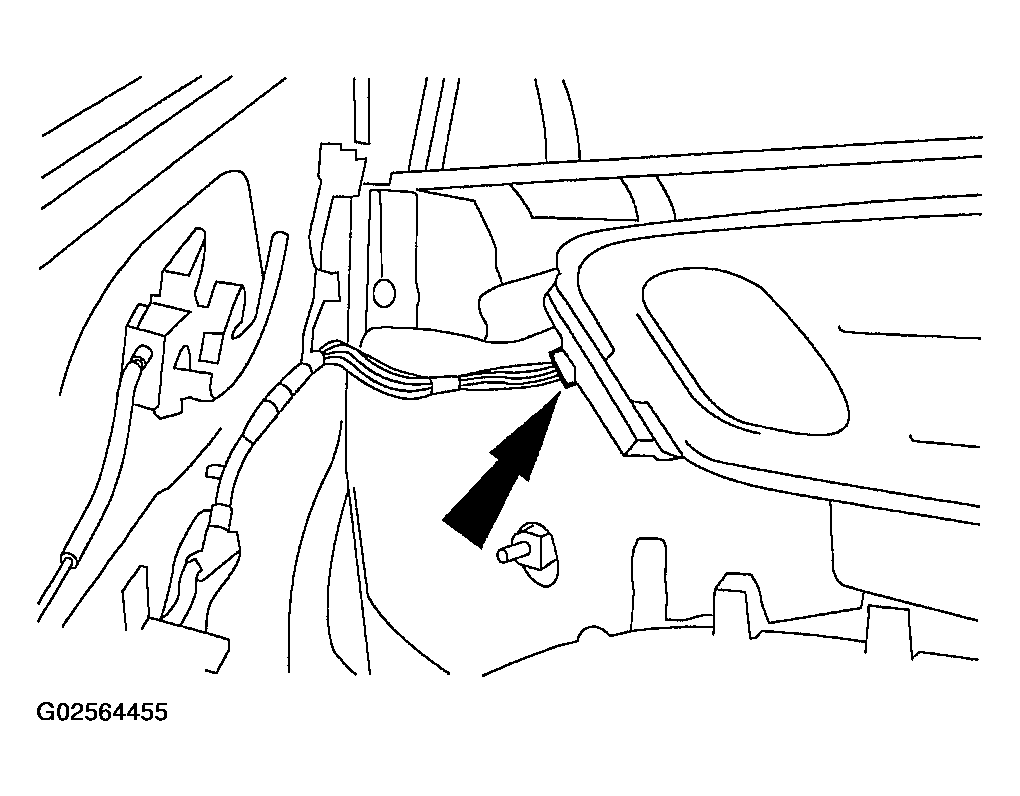

    Fig 4: Disconnecting Front Door Power Window Regulator Motor Electrical Connector

    Courtesy of MAZDA MOTORS CORP.
11. Disconnect the front door power window regulator motor electrical connector.

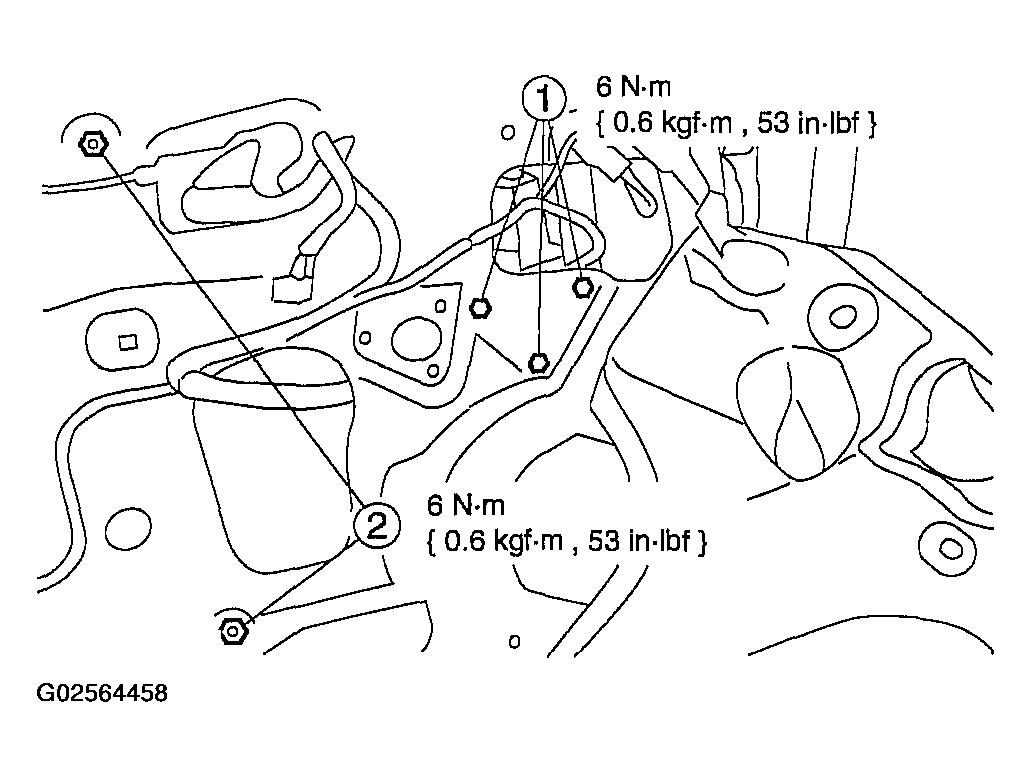

    Fig 5: Removing Front Door Power Window Regulator Assembly

    Courtesy of MAZDA MOTORS CORP.
12. Remove the front door power window regulator assembly.
    1. Remove the bolts.
    2. Remove the nuts.

       Vehicles with manual windows

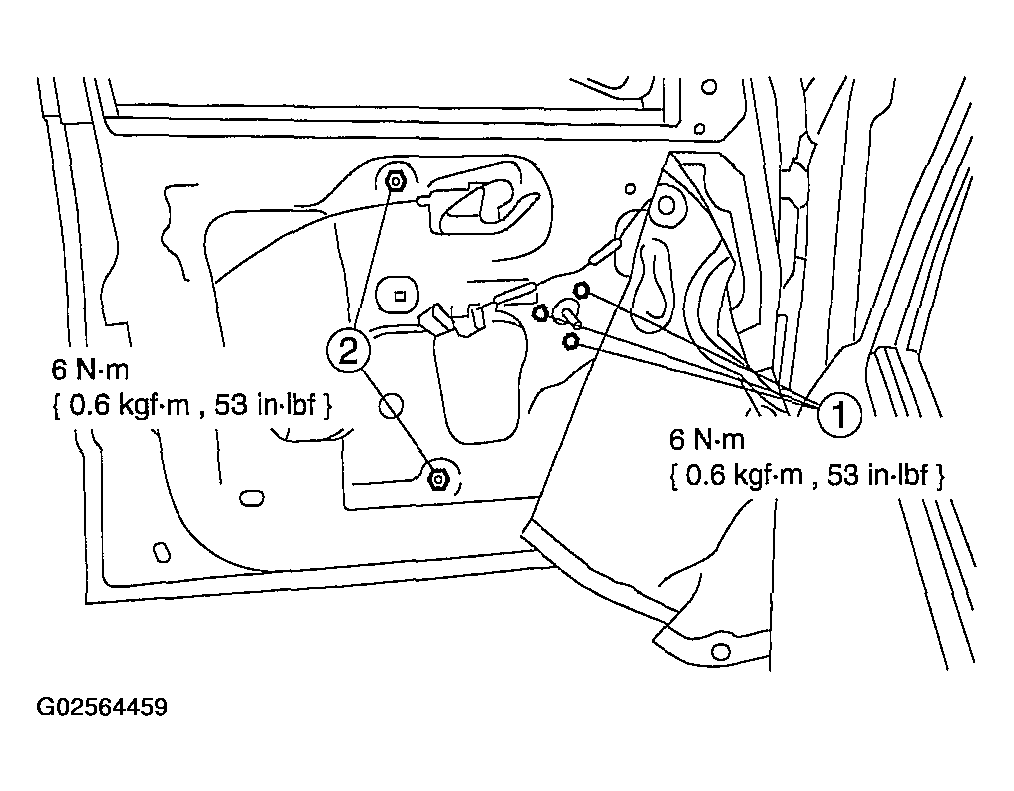

    Fig 6: Removing Front Door Window Regulator Assembly

    Courtesy of MAZDA MOTORS CORP.
13. Remove the front door window regulator assembly.
    1. Remove the bolts.
    2. Remove the nuts.

    All vehicles

14. To install, reverse the removal procedure.
    • Cycle the door window glass to make sure of correct door window glass engagement.
