Part-Side Connector

The viewing direction of part-side connectors is from the terminal side.

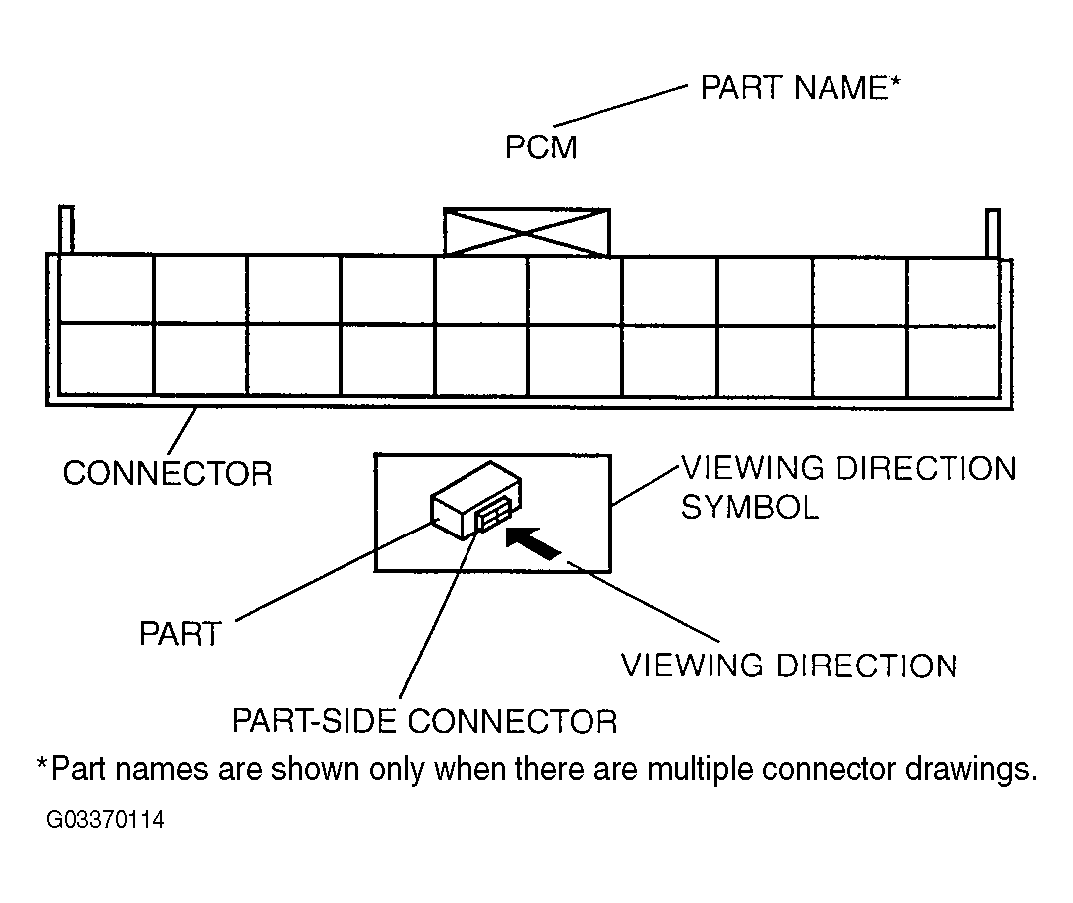

Fig 1: View of Part-side Connectors

G03370114

Courtesy of MAZDA MOTORS CORP.
