No. 27 Fuel Refill Concerns

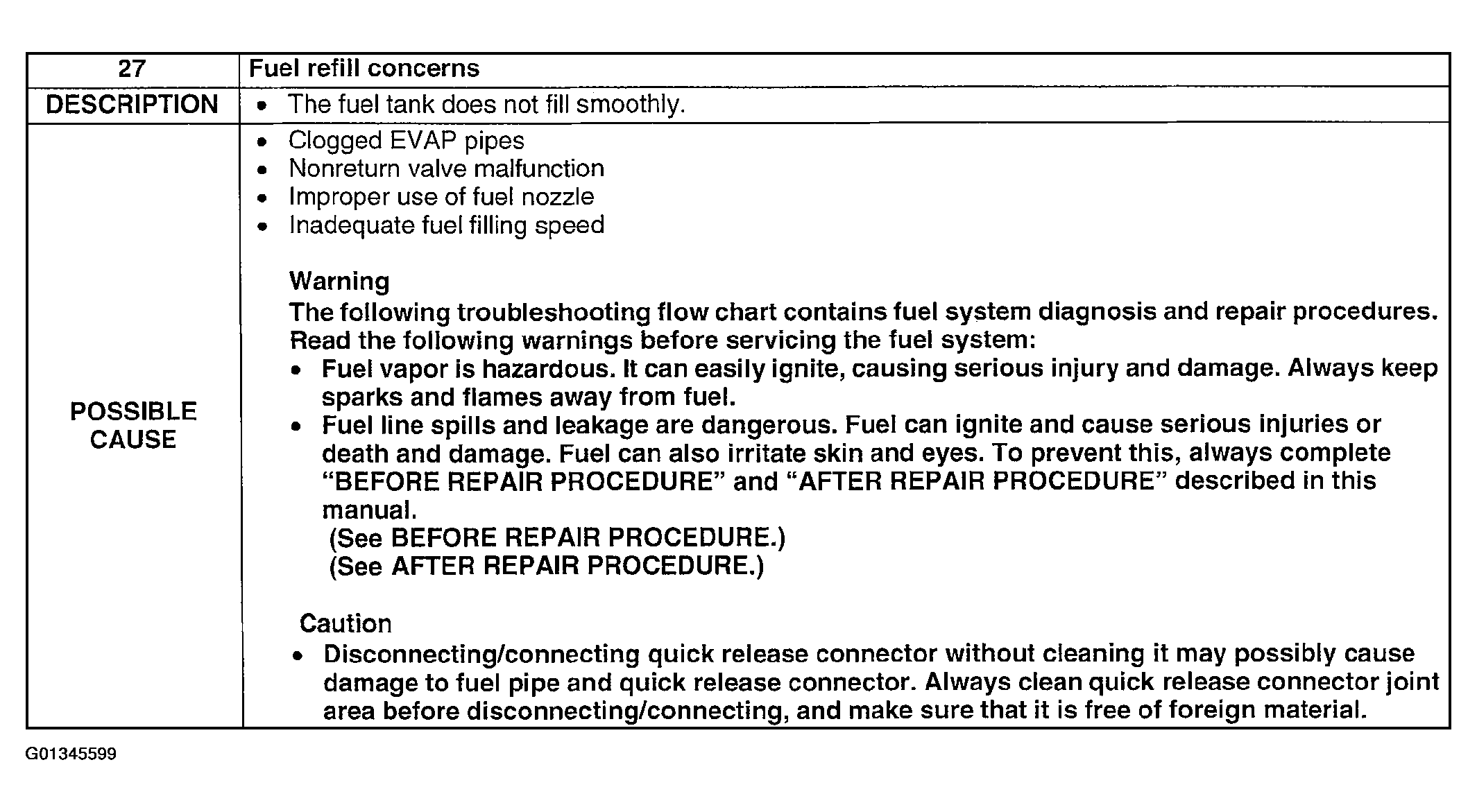

Fig 1: Possible Cause - No. 27 Fuel Refill Concerns

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

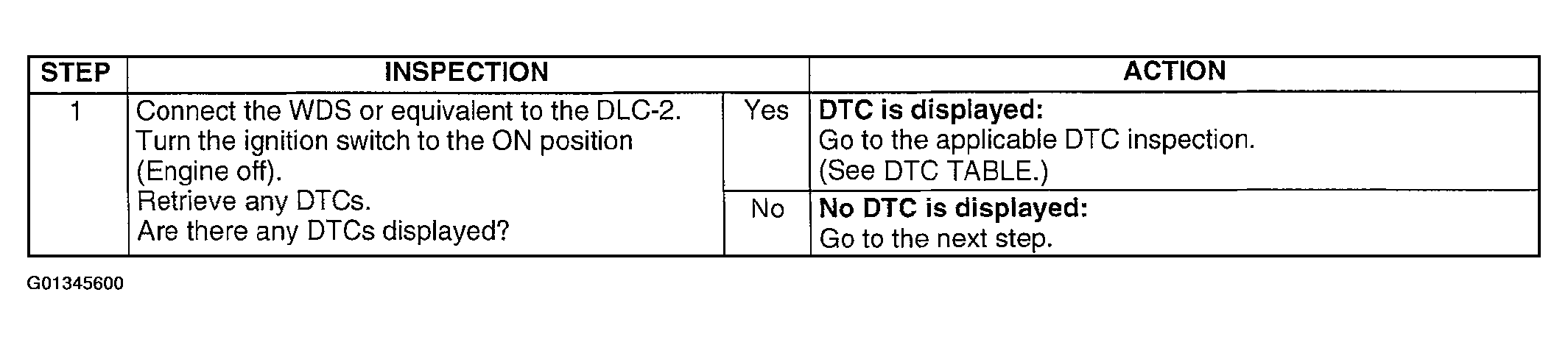

Fig 2: Diagnostic Procedure - No. 27 Fuel Refill Concerns (Step 1)

Courtesy of MAZDA MOTORS CORP.

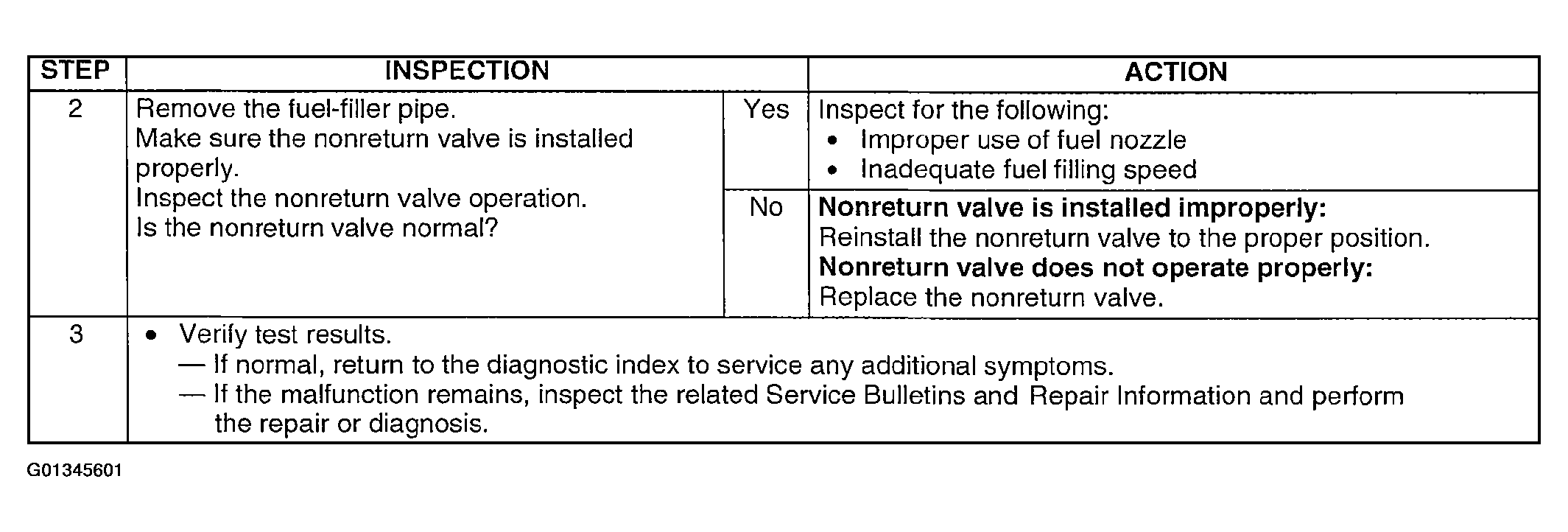

Fig 3: Diagnostic Procedure - No. 27 Fuel Refill Concerns (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.
