Pending Trouble Code Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Retrieve the pending trouble codes using the WDS or equivalent.

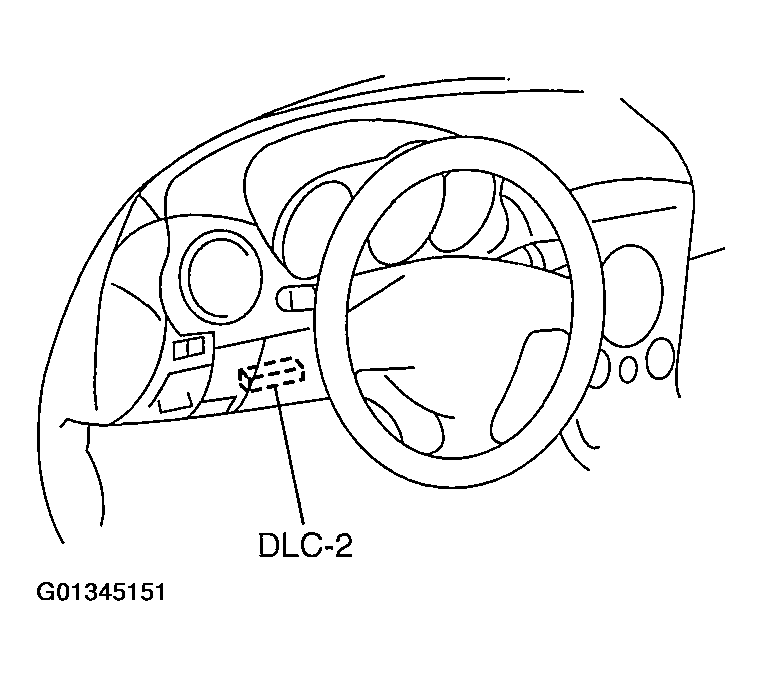

    Fig 1: Accessing Pending Trouble Codes
    G01345151Courtesy of MAZDA MOTORS CORP.
