Freeze Frame PID Data Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Record the freeze frame PID data using the WDS or equivalent.

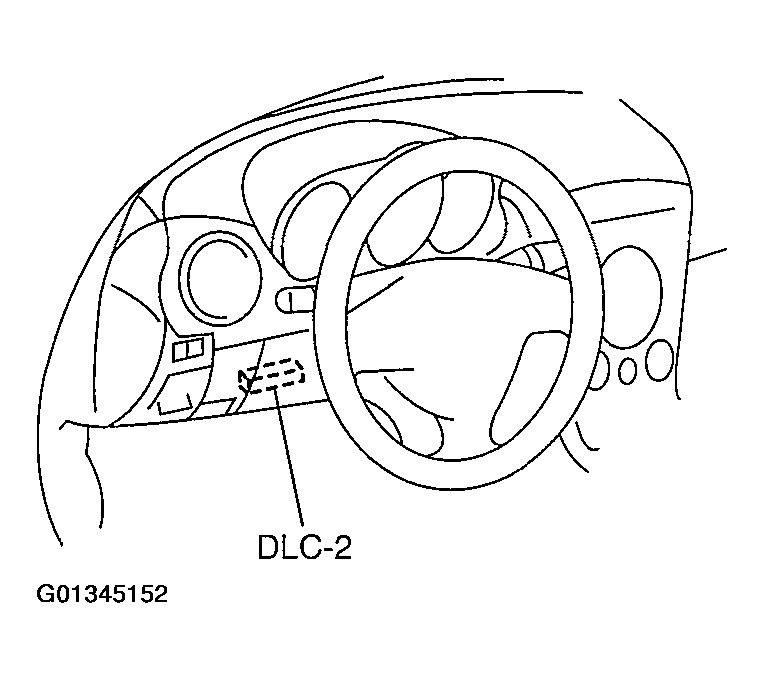

    Fig 1: Accessing Freeze Frame PID Data
    G01345152Courtesy of MAZDA MOTORS CORP.
