DTC P2407: EVAP System Leak Detection Pump Sense Circuit Intermittent/Erratic Problem

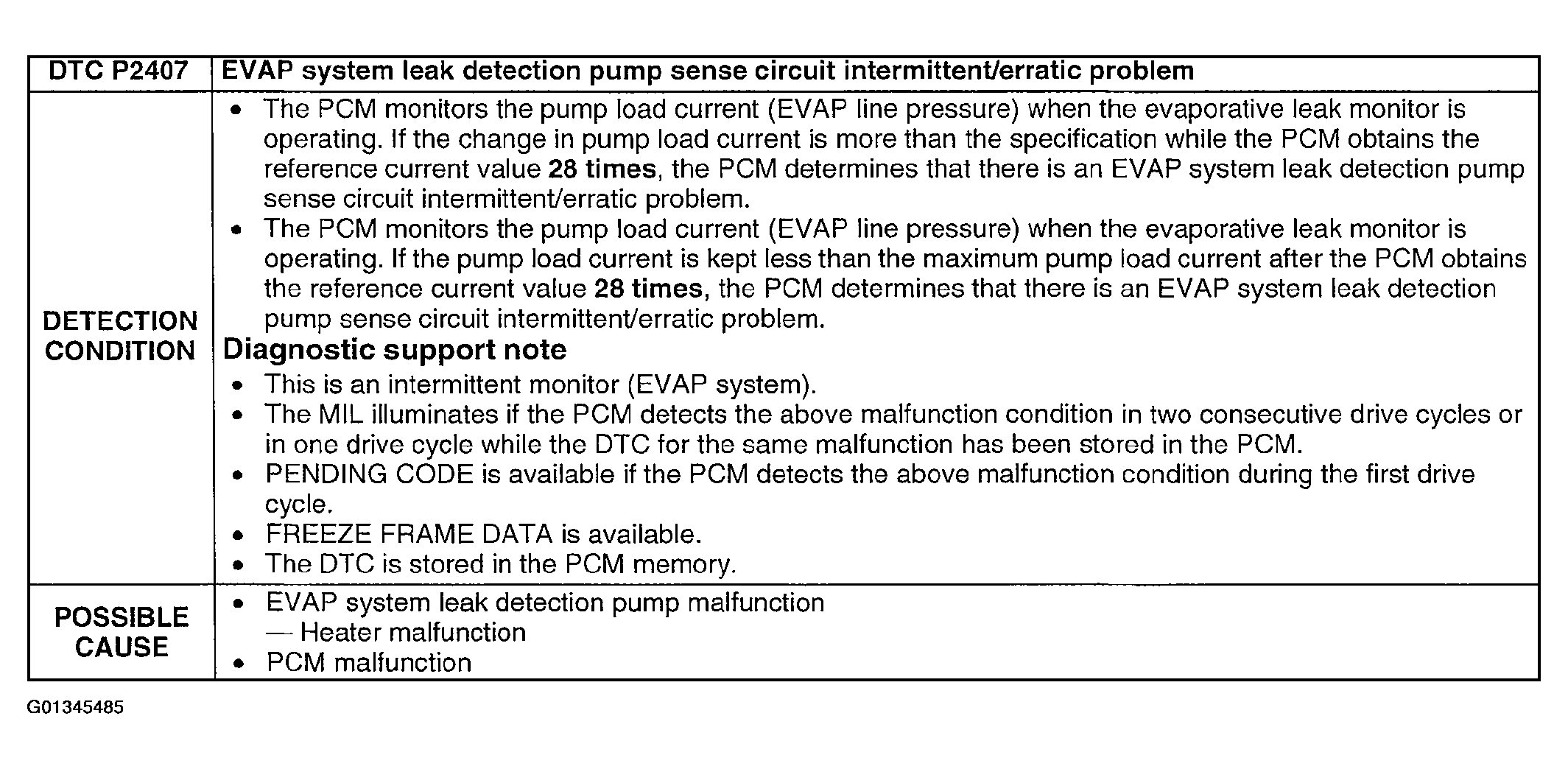

Fig 1: DTC P2407 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

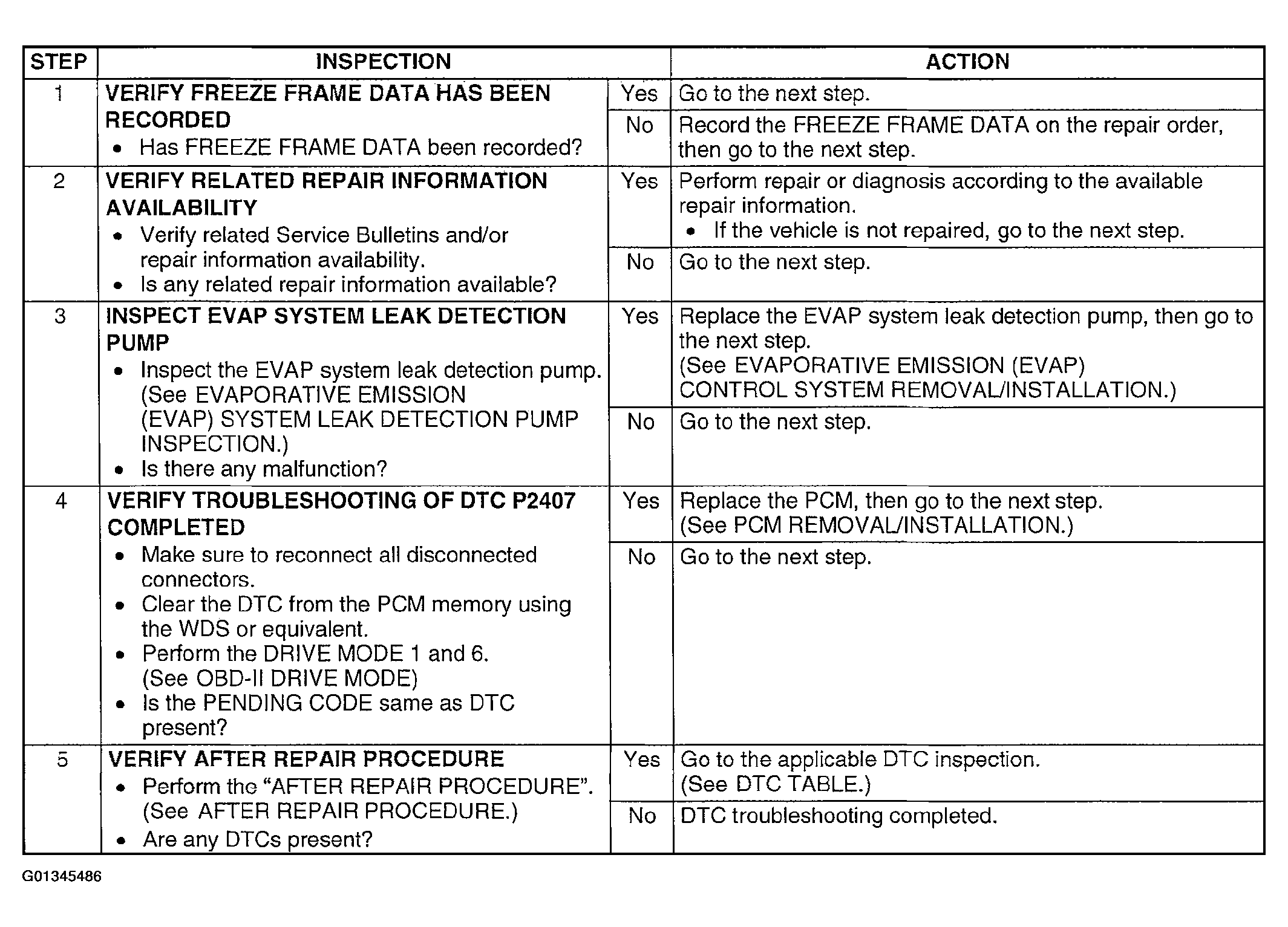

Fig 2: DTC P2407 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
