DTC P2008: APV Motor Control Circuit/Open

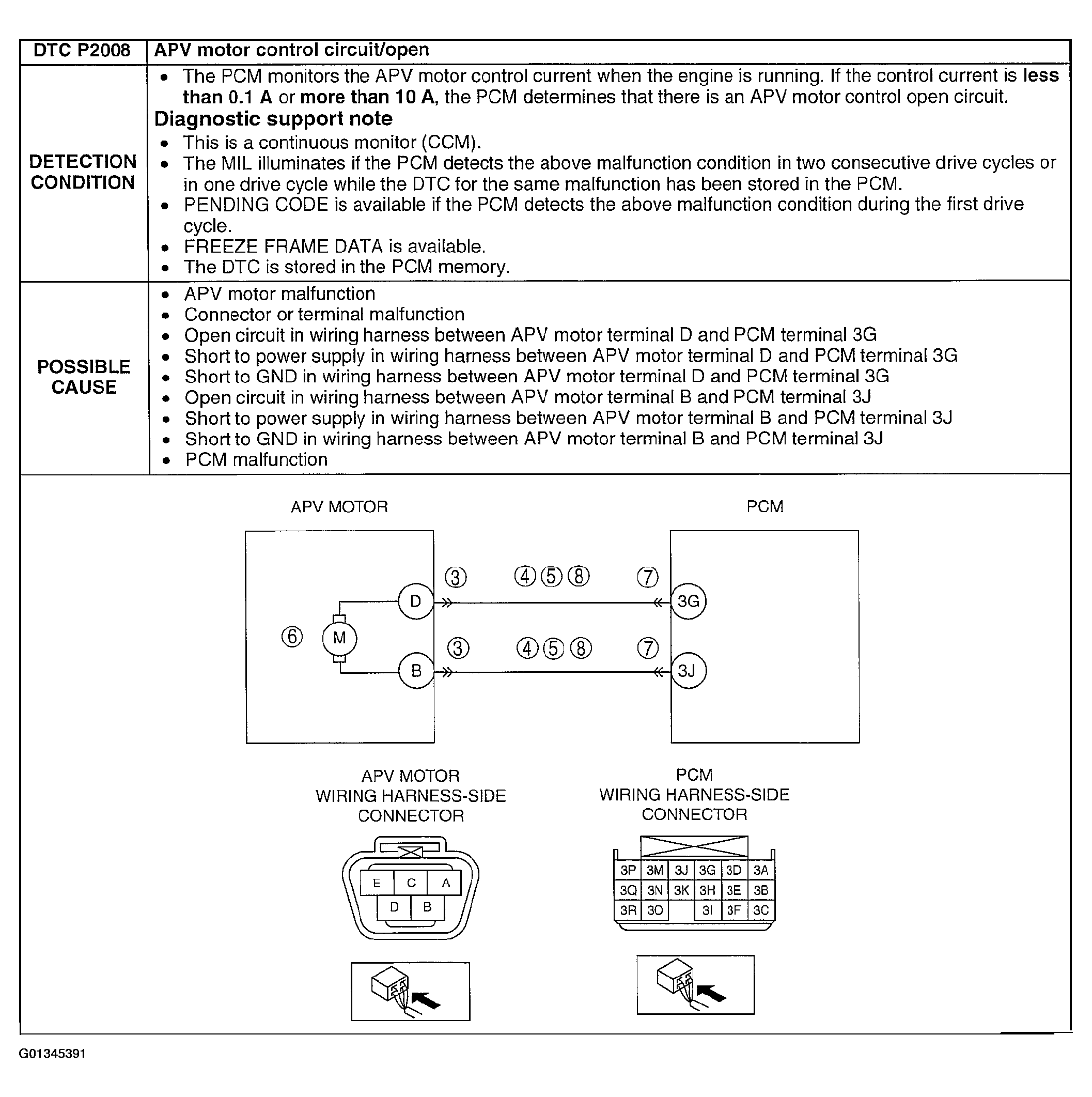

Fig 1: DTC P2008 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

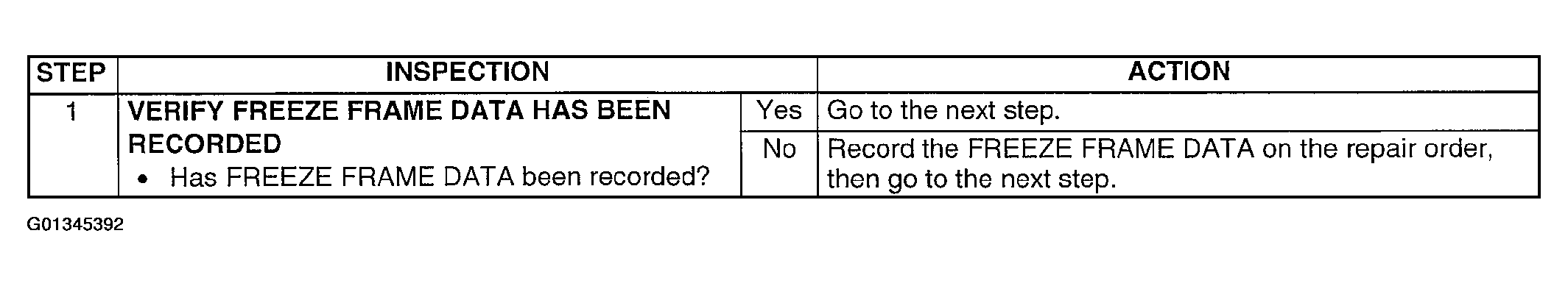

Fig 2: DTC P2008 Diagnostic Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

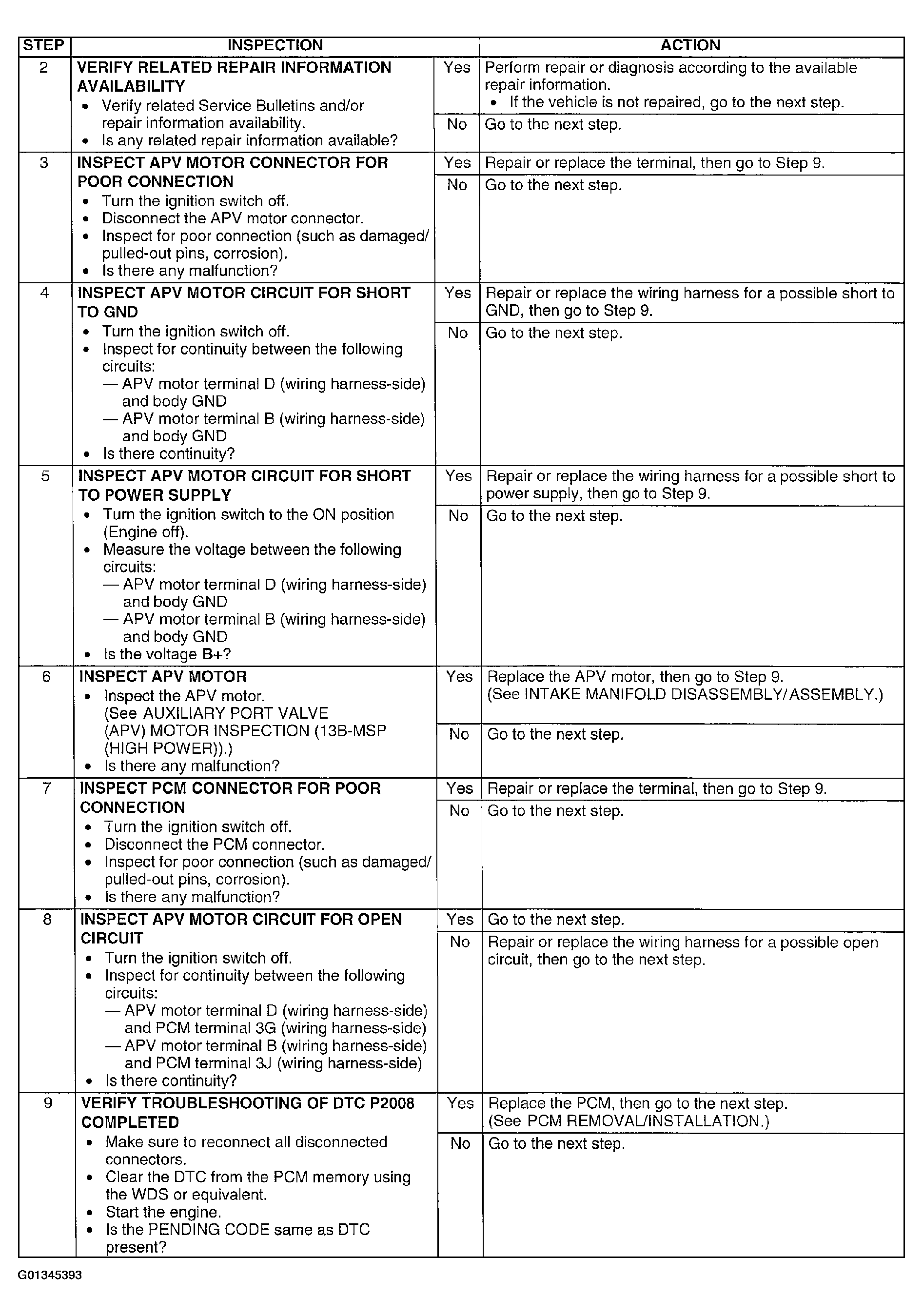

Fig 3: DTC P2008 Diagnostic Procedure Chart (Step 2-9)

Courtesy of MAZDA MOTORS CORP.

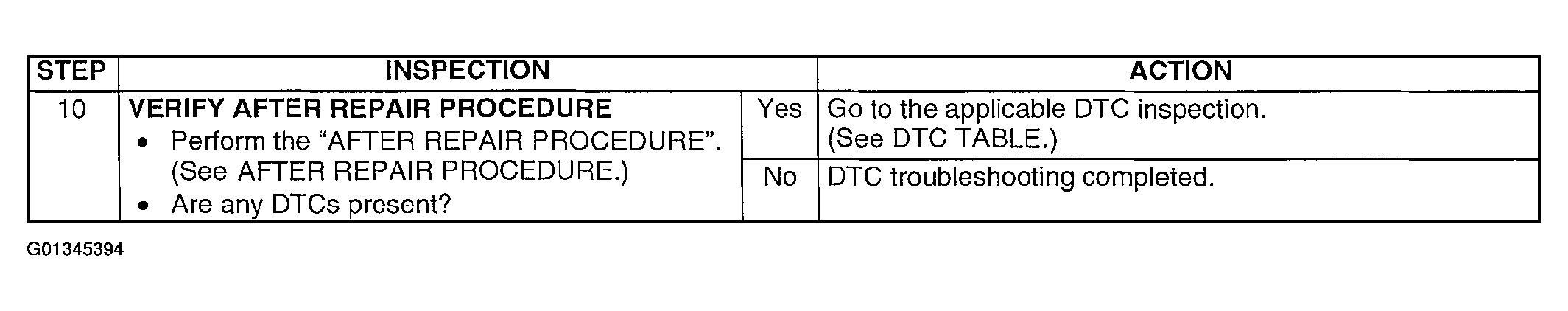

Fig 4: DTC P2008 Diagnostic Procedure Chart (Step 10)

Courtesy of MAZDA MOTORS CORP.
