DTC P0602: Pcm Programming Error

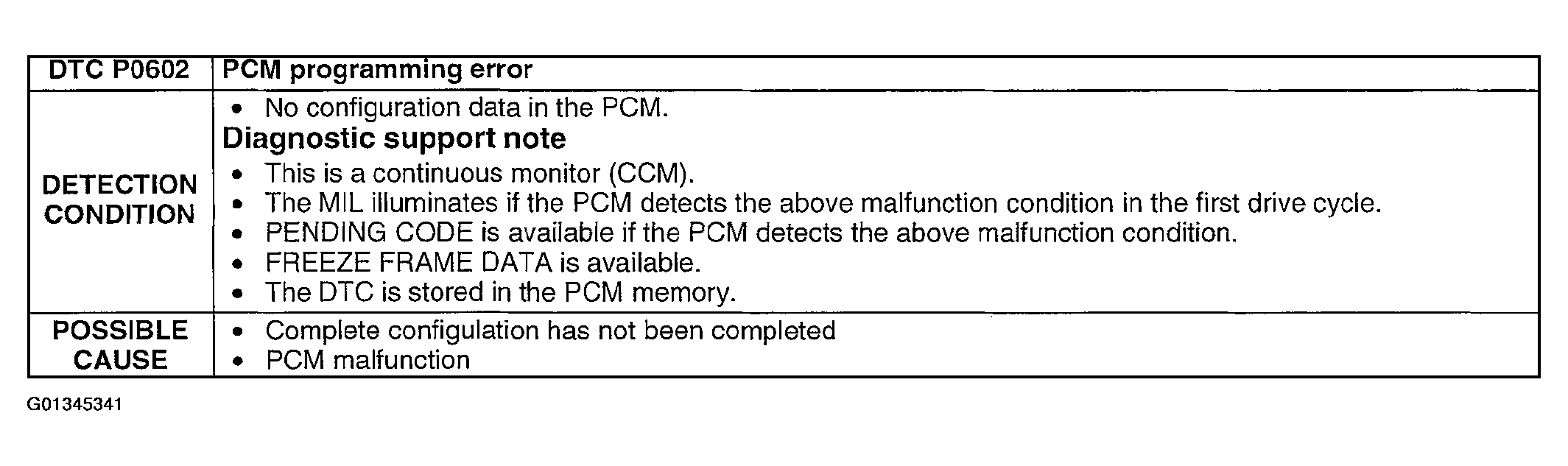

Fig 1: DTC P0602 Detection Condition & Possible Causes Chart
G01345341Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

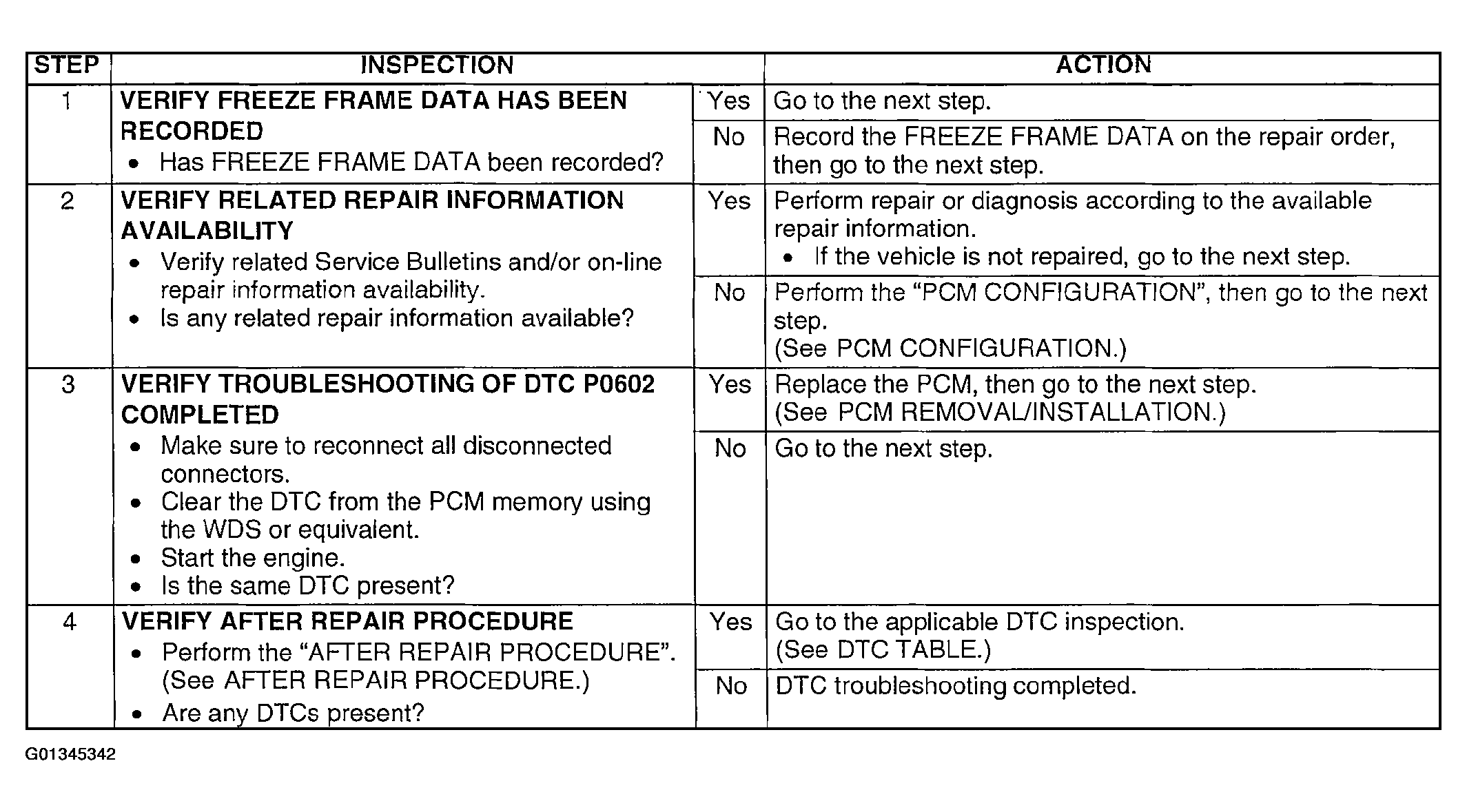

Fig 2: DTC P0602 Diagnostic Procedure Chart
G01345342Courtesy of MAZDA MOTORS CORP.
