DTC P0463: Fuel Gauge Sender Unit Circuit Low Input

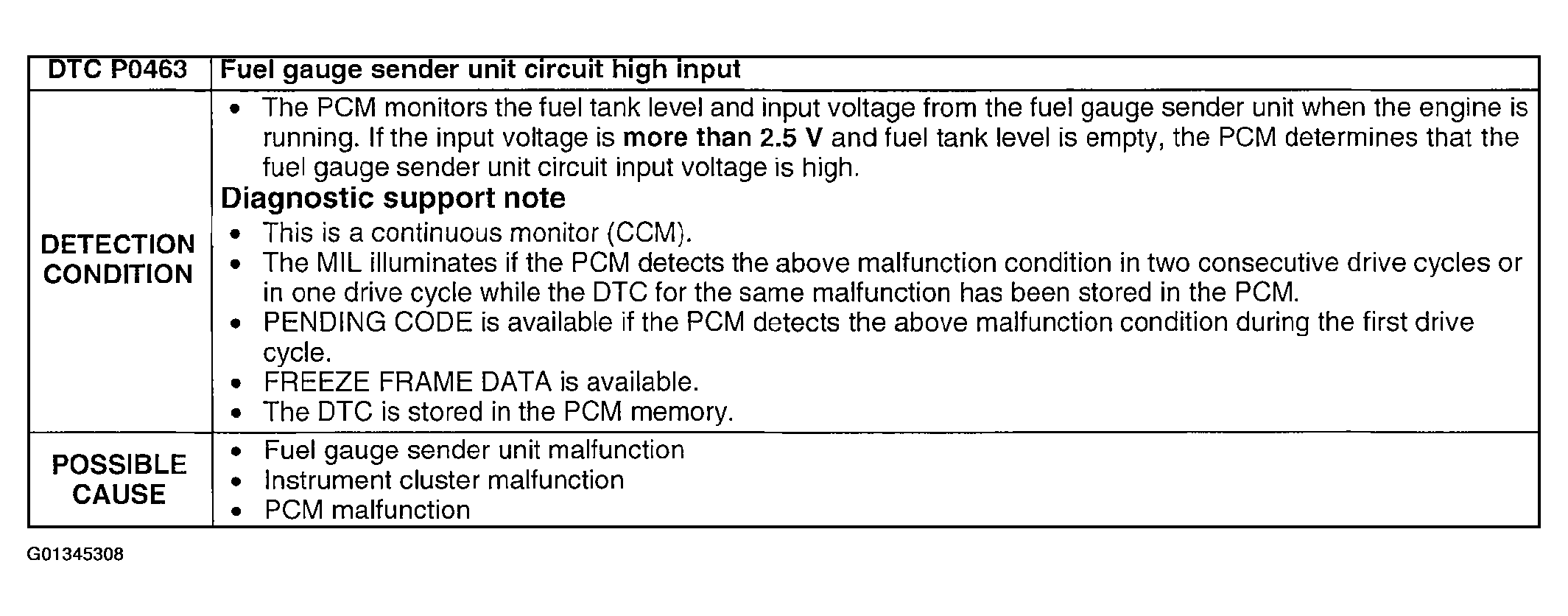

Fig 1: DTC P0463 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

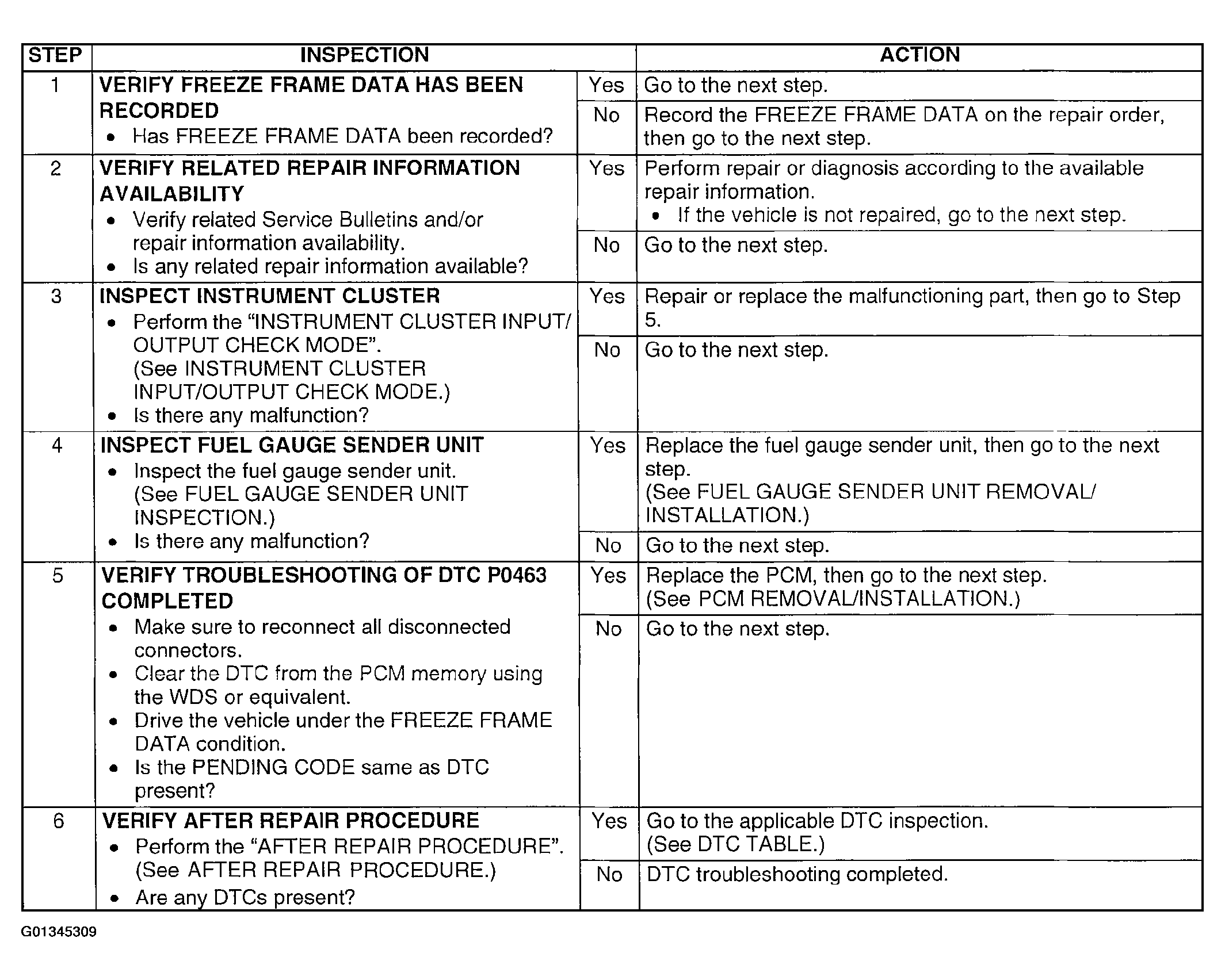

Fig 2: DTC P0463 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
