DTC P0462: Fuel Gauge Sender Unit Circuit Low Input

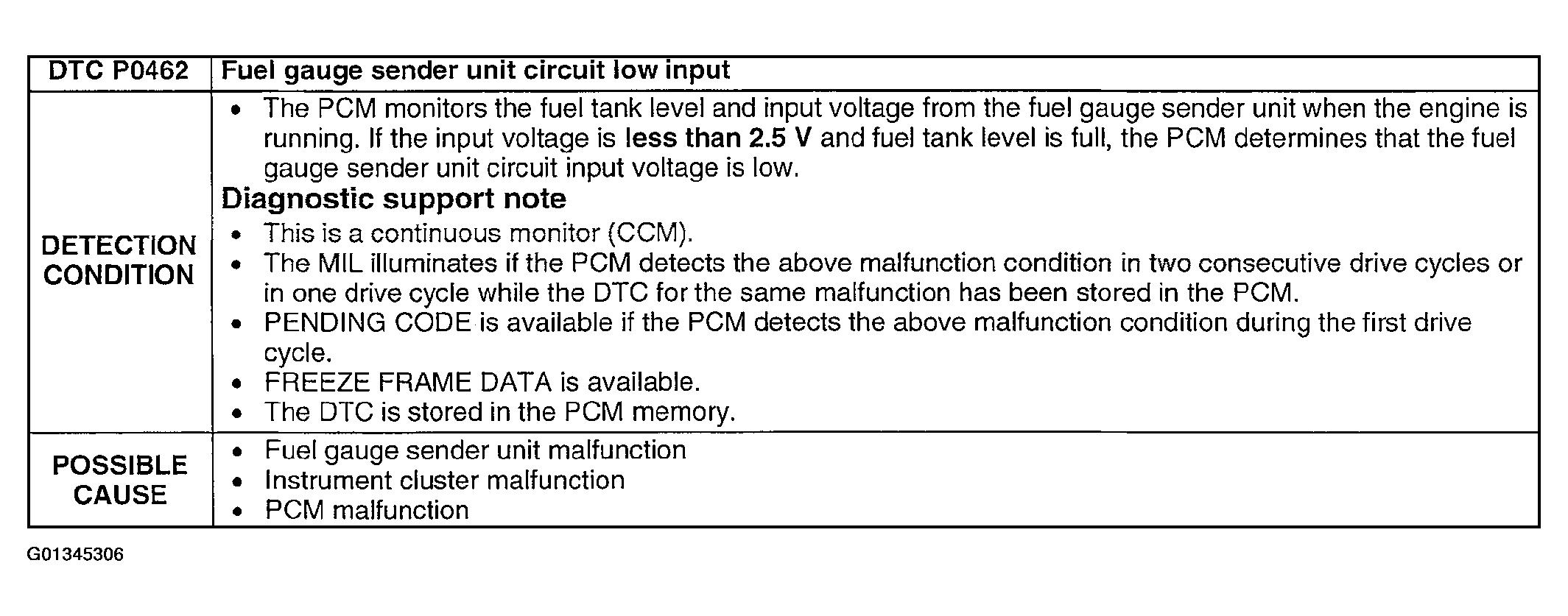

Fig 1: DTC P0462 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

Fig 2: DTC P0462 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
