DTC P0461: Fuel Gauge Sender Unit Circuit Range/Performance Problem

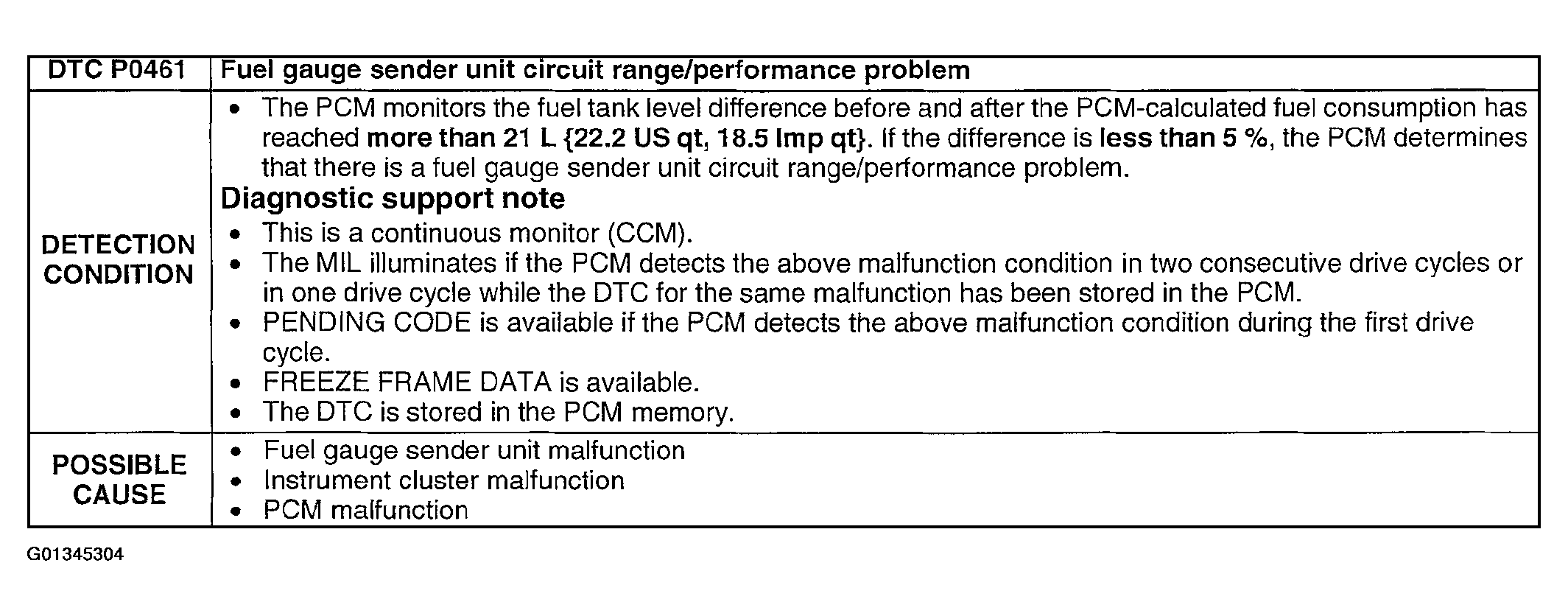

Fig 1: DTC P0461 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

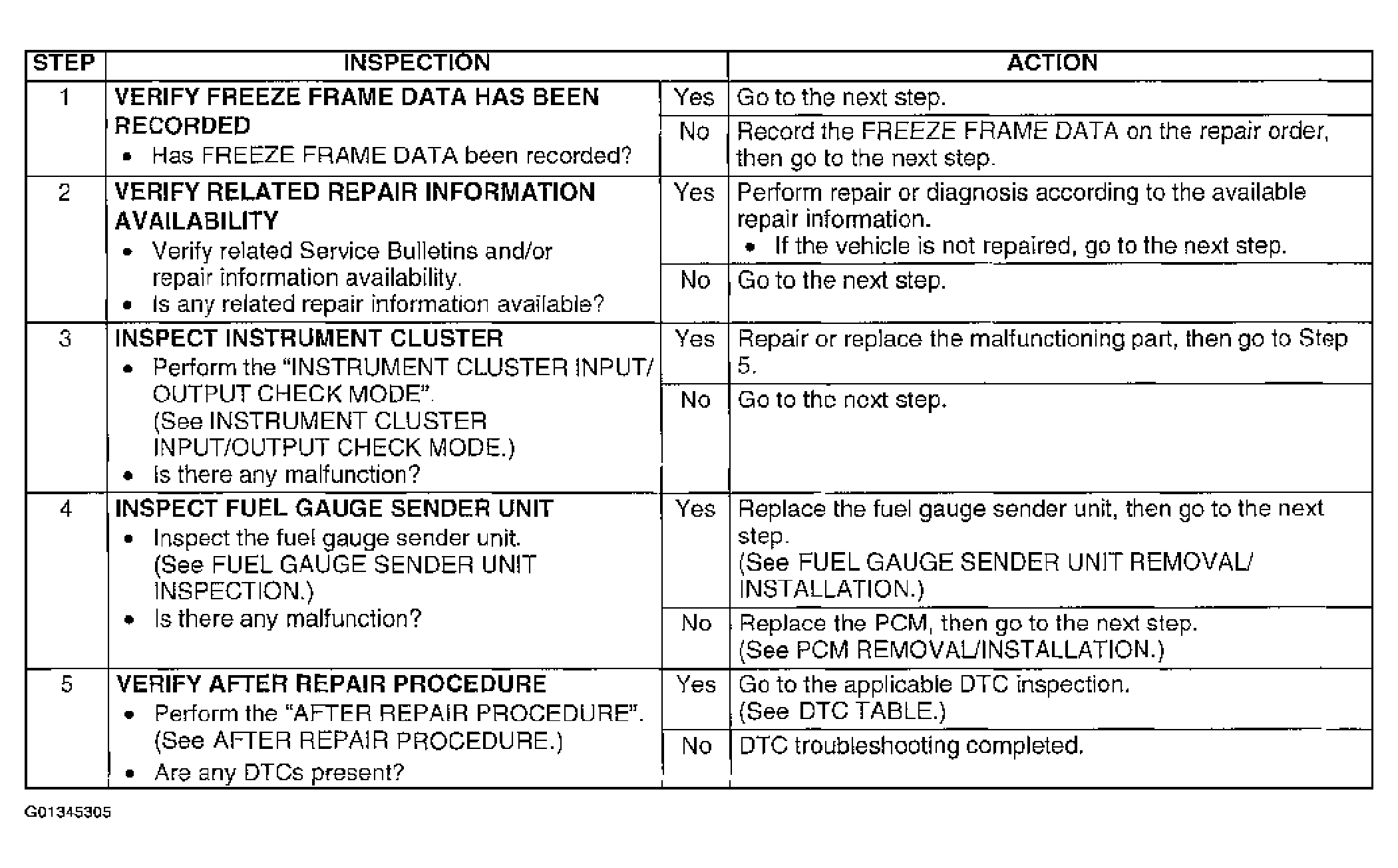

Fig 2: DTC P0461 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
