DTC P0455: EVAP System Leak Detected (Large Leak)

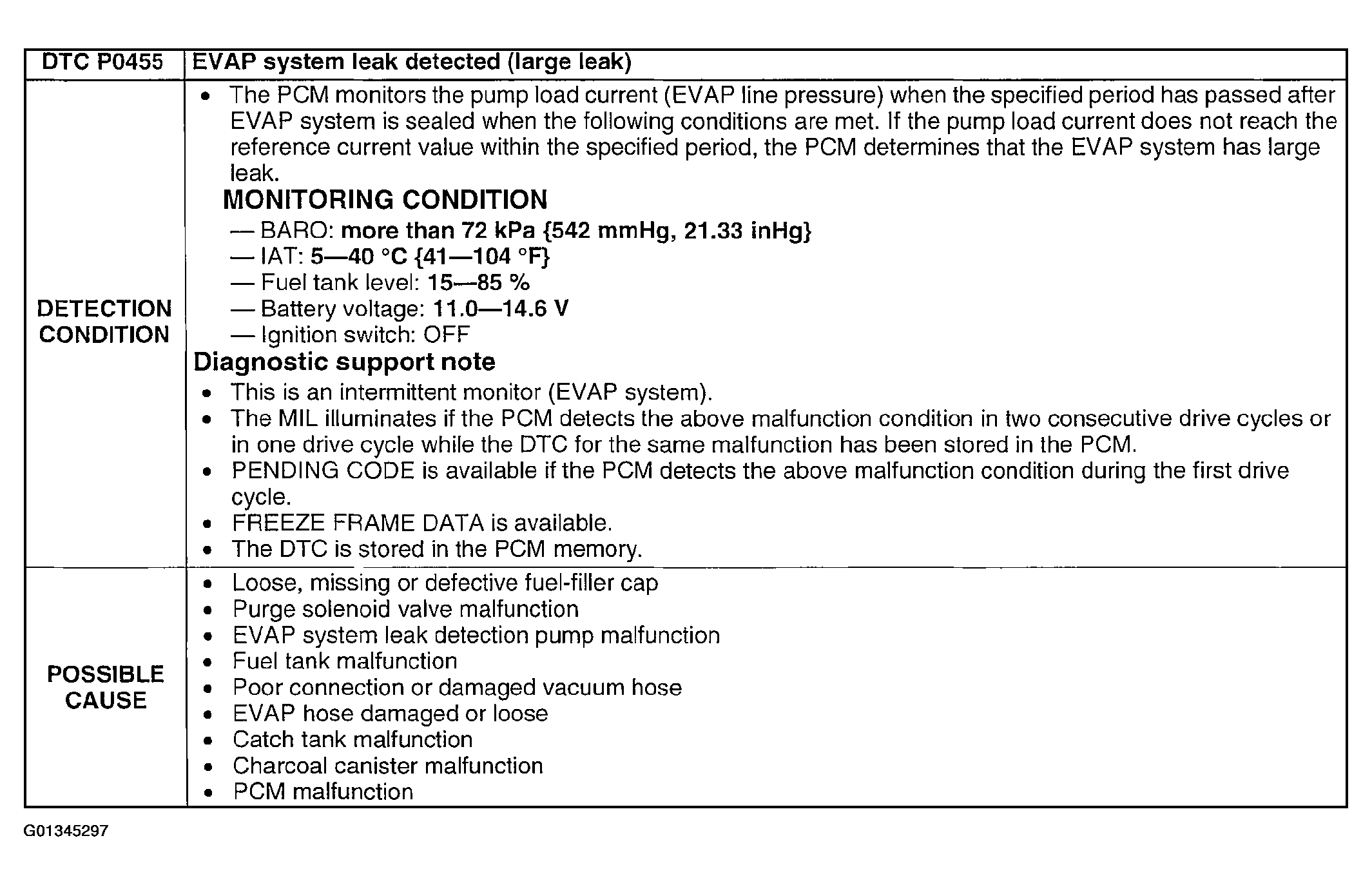

Fig 1: DTC P0455 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

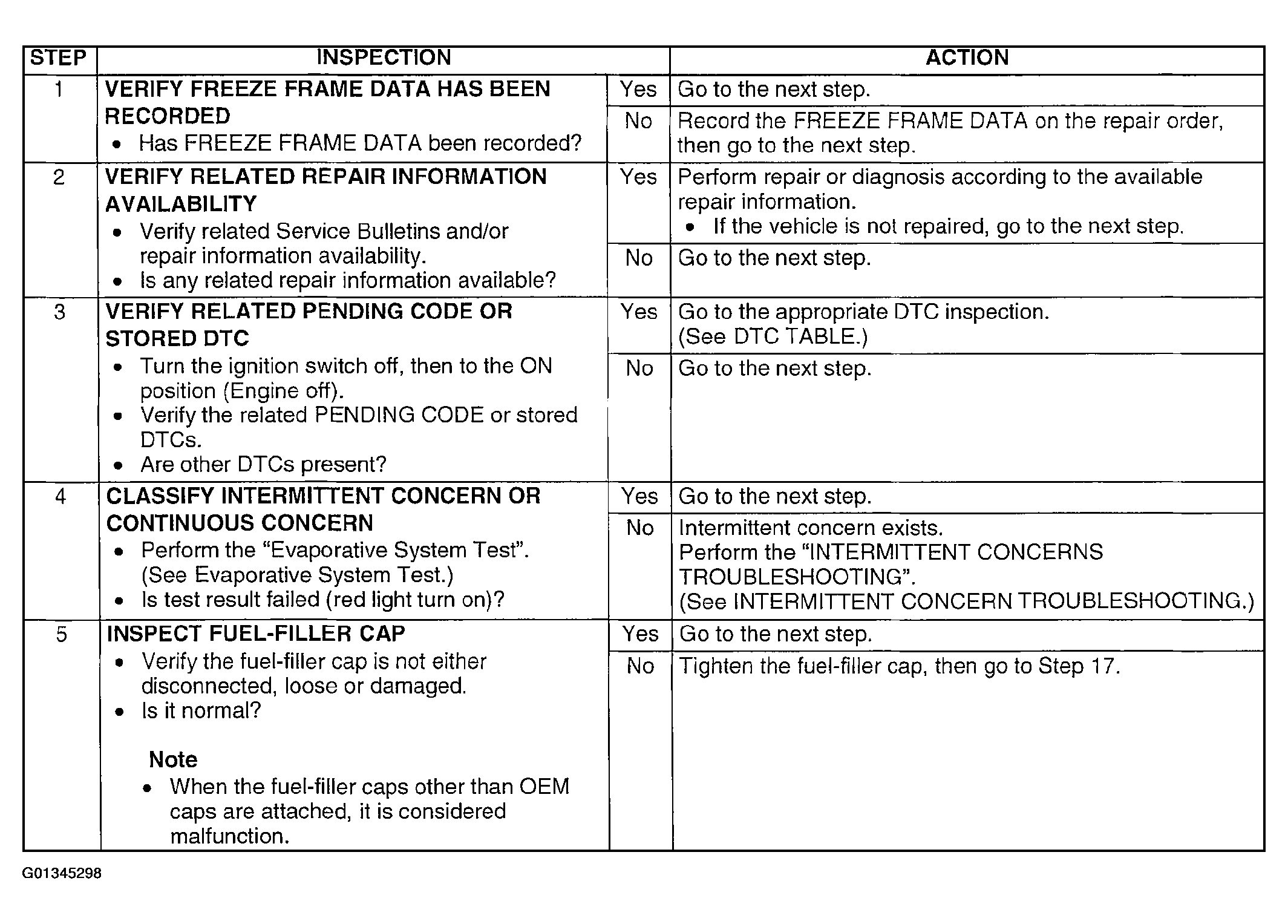

Fig 2: DTC P0455 Diagnostic Procedure Chart (Step 1-5)

Courtesy of MAZDA MOTORS CORP.

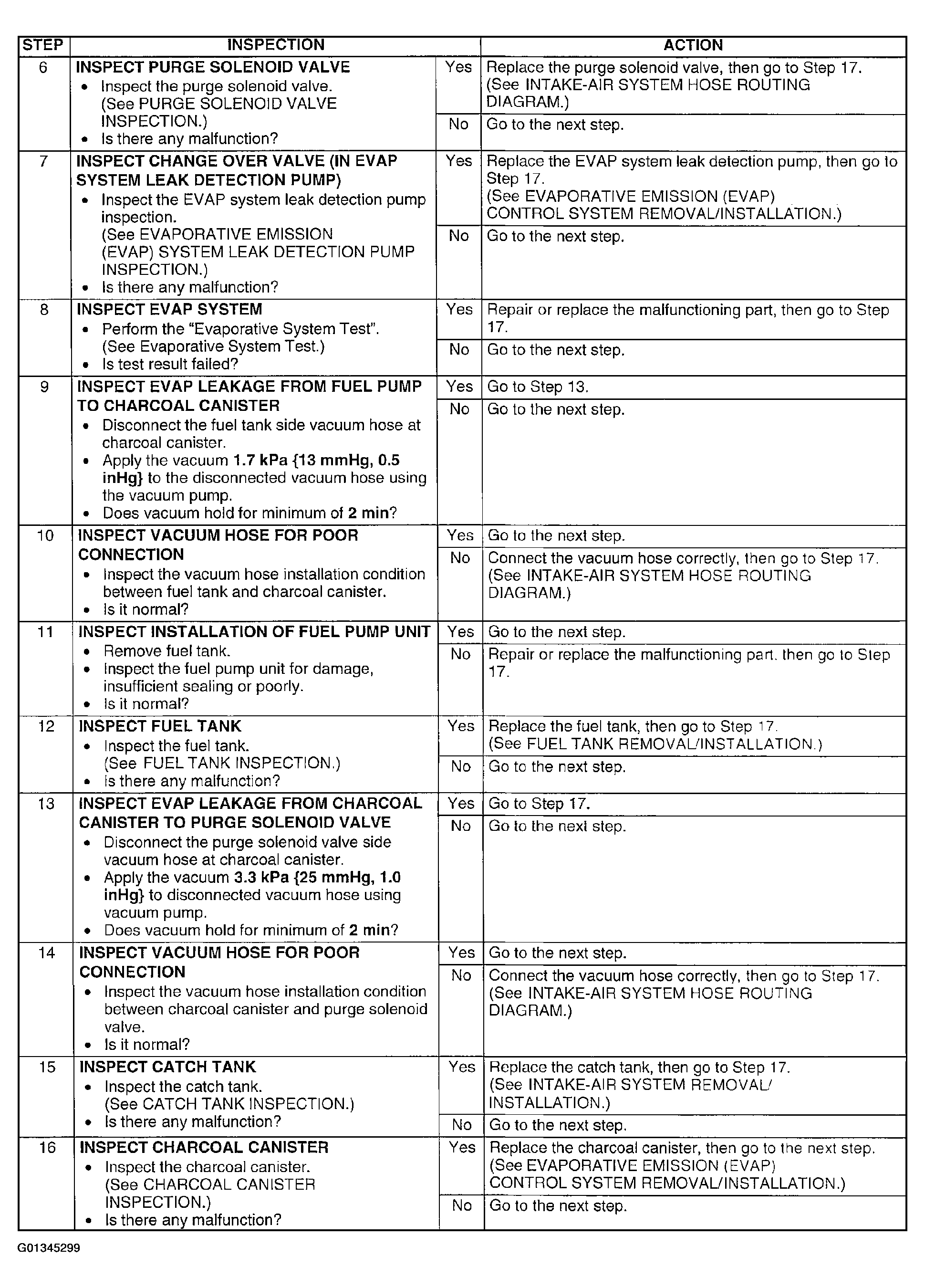

Fig 3: DTC P0455 Diagnostic Procedure Chart (Step 6-16)

Courtesy of MAZDA MOTORS CORP.

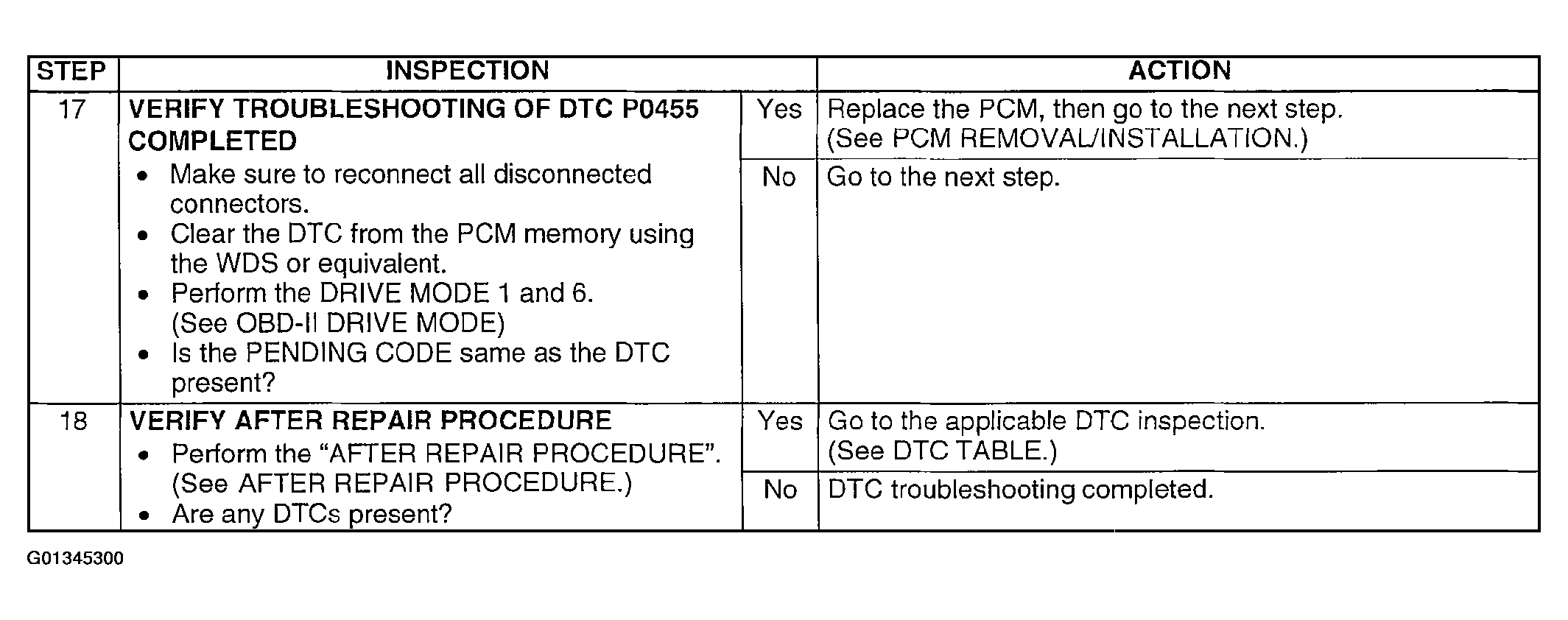

Fig 4: DTC P0455 Diagnostic Procedure Chart (Step 17-18)

Courtesy of MAZDA MOTORS CORP.
