DTC P0420: Catalyst System Efficiency Below Threshold

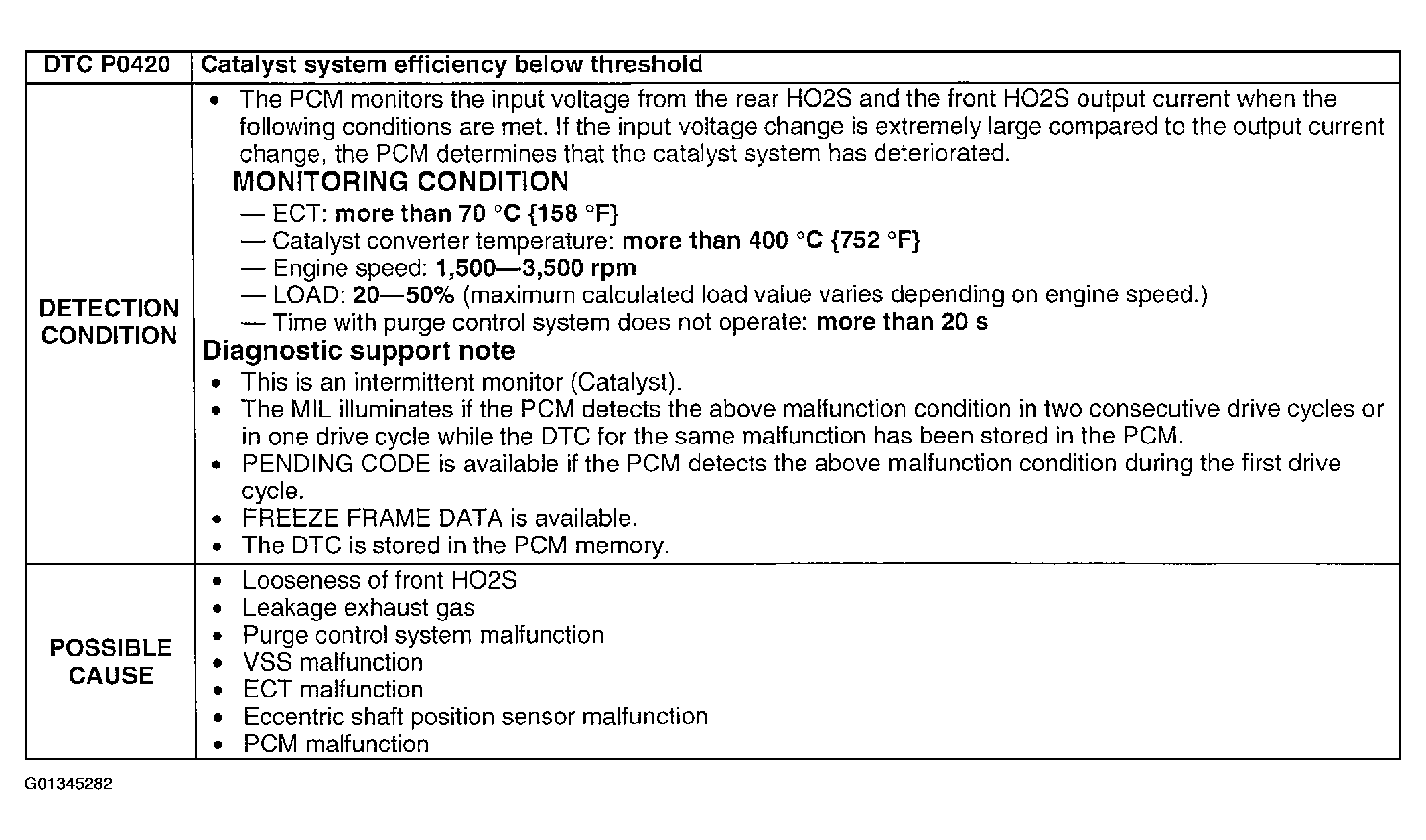

Fig 1: DTC P0420 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

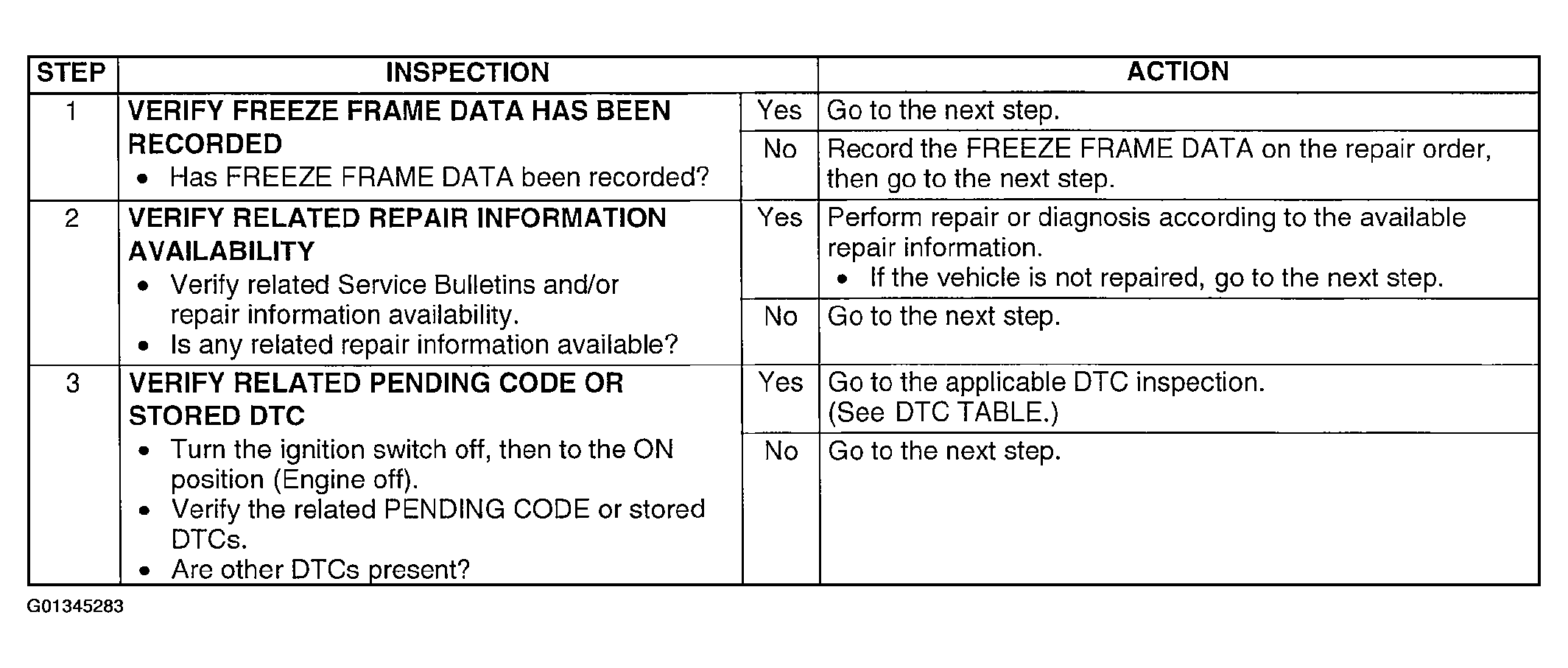

Fig 2: DTC P0420 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

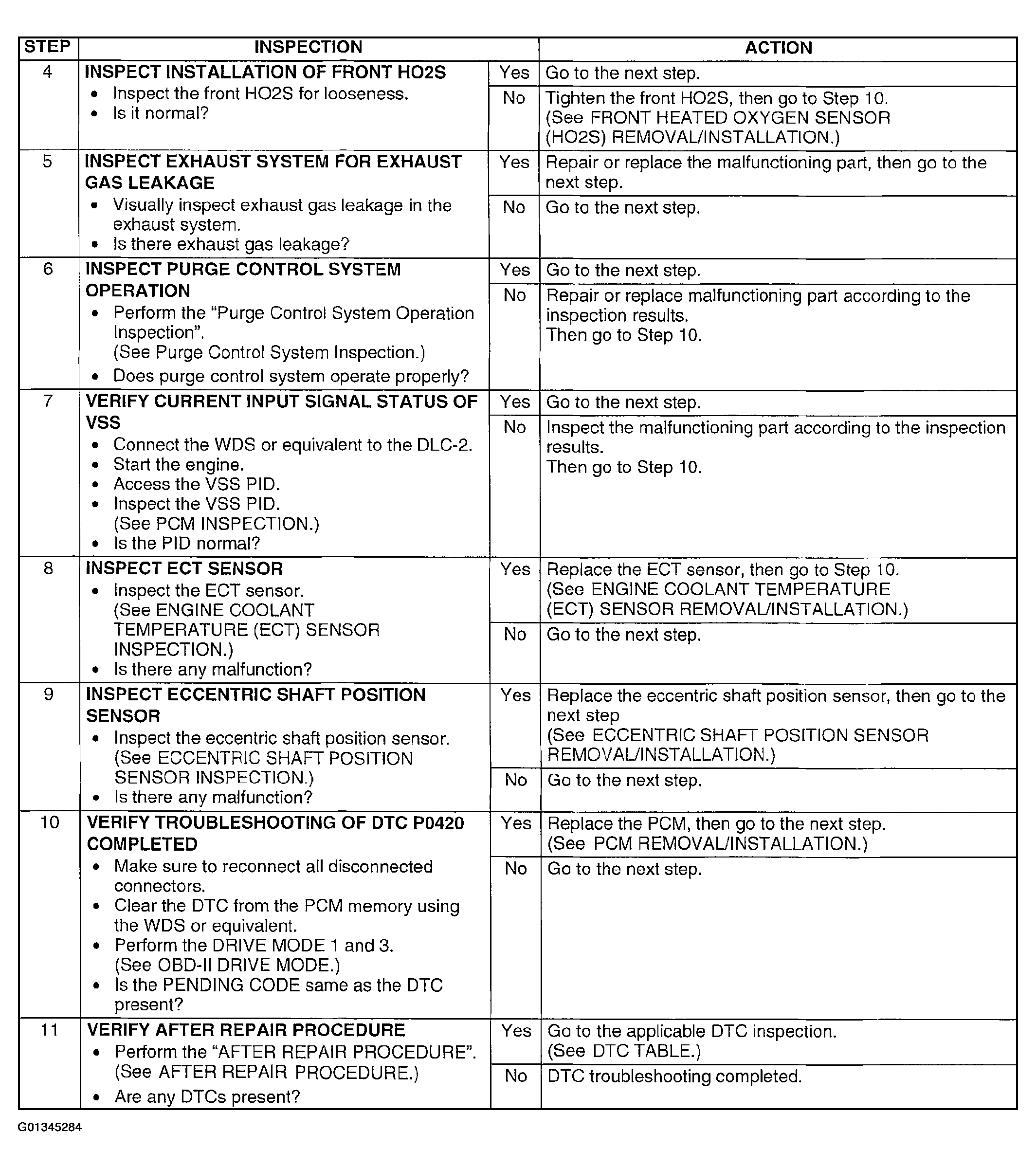

Fig 3: DTC P0420 Diagnostic Procedure Chart (Step 4-11)

Courtesy of MAZDA MOTORS CORP.
