DTC P0410: Air System Problem

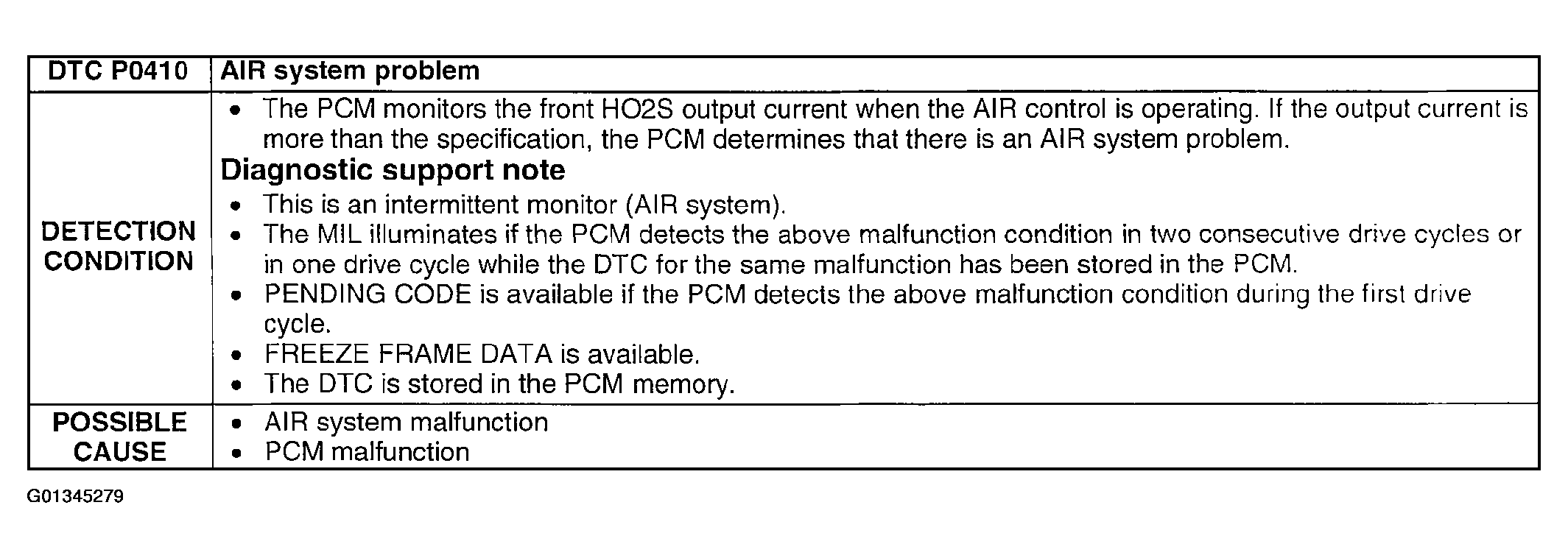

Fig 1: DTC P0410 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

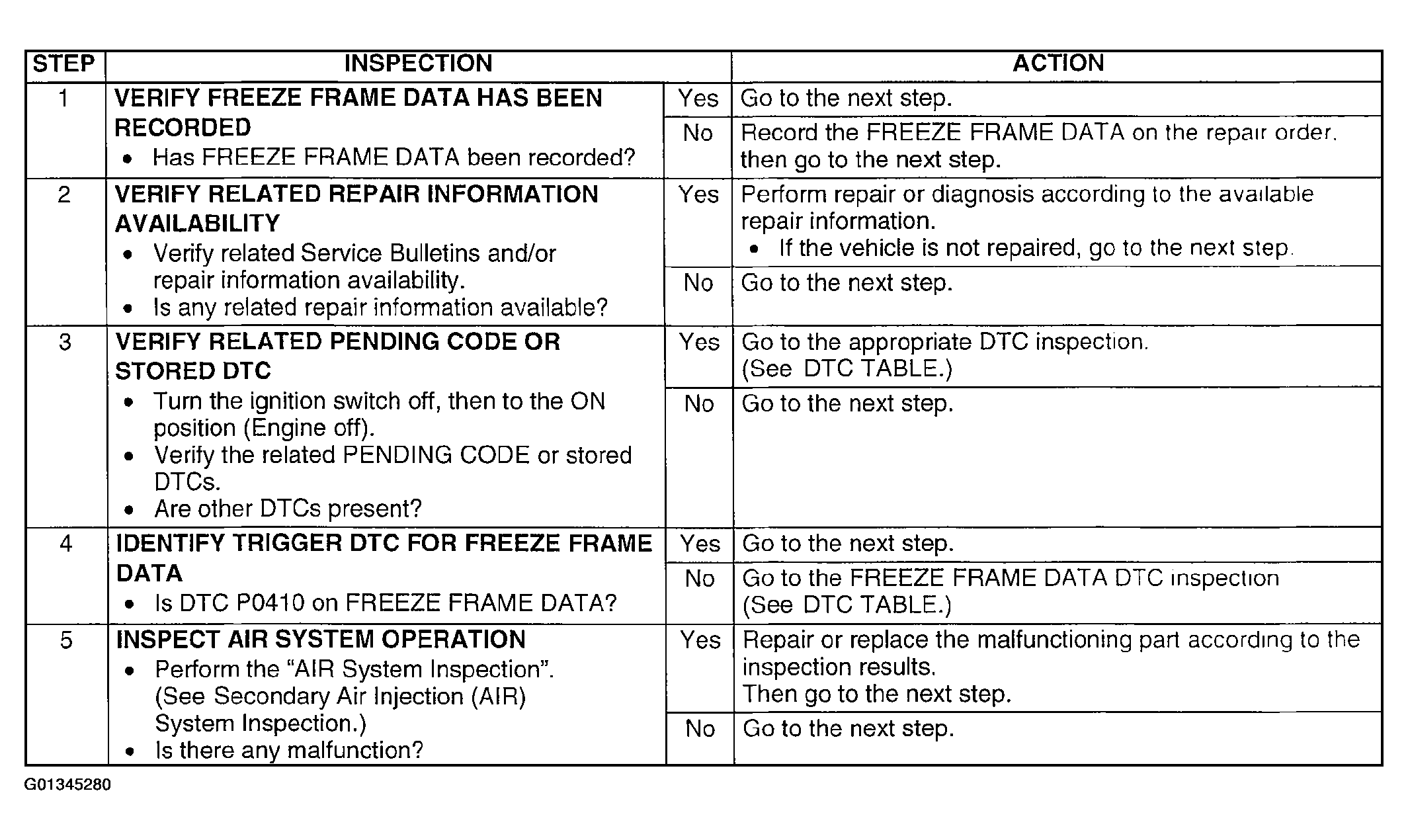

Fig 2: DTC P0410 Diagnostic Procedure Chart (Step 1-5)

Courtesy of MAZDA MOTORS CORP.

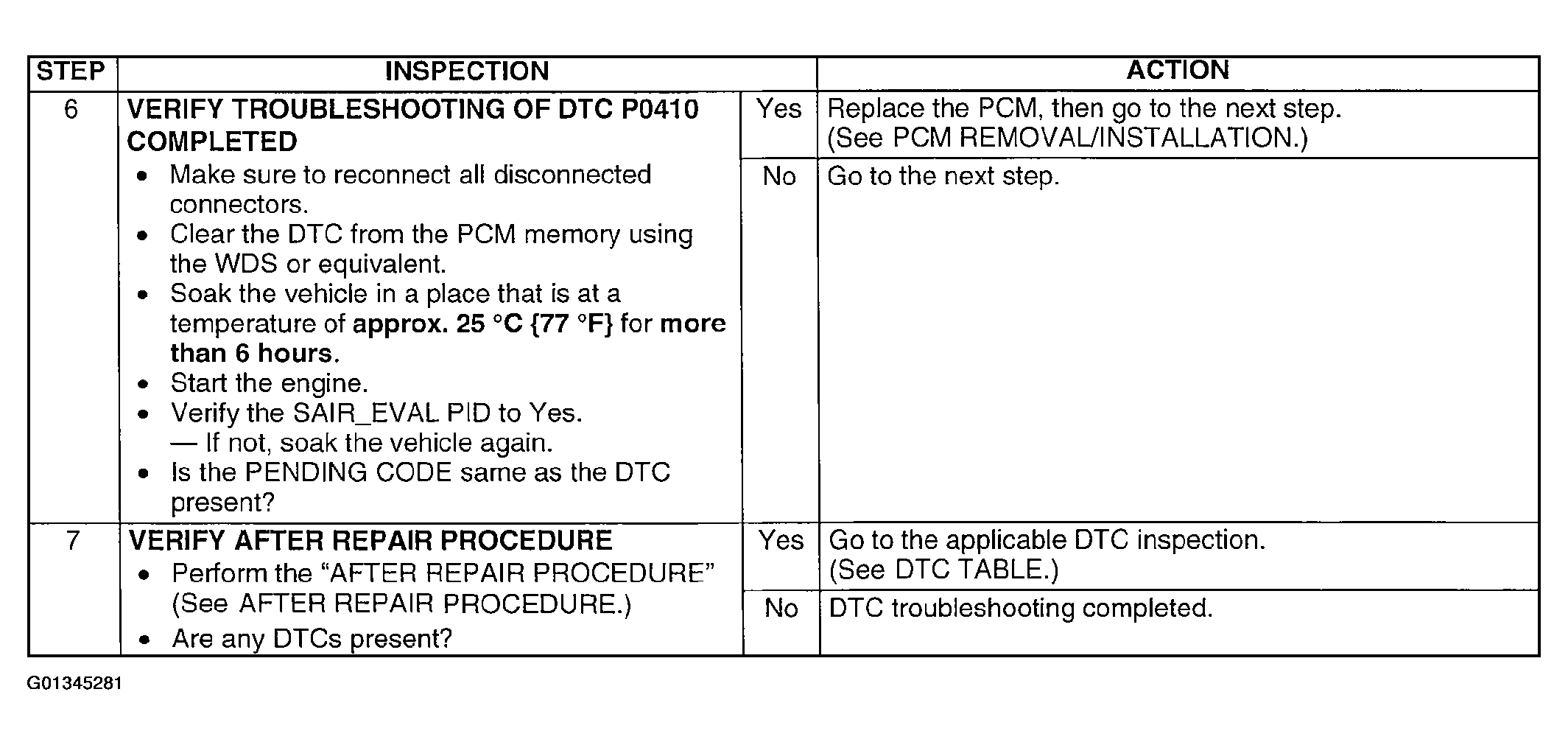

Fig 3: DTC P0410 Diagnostic Procedure Chart (Step 6-7)

Courtesy of MAZDA MOTORS CORP.
