DTC P0335: Eccentric Shaft Position Sensor Circuit Problem

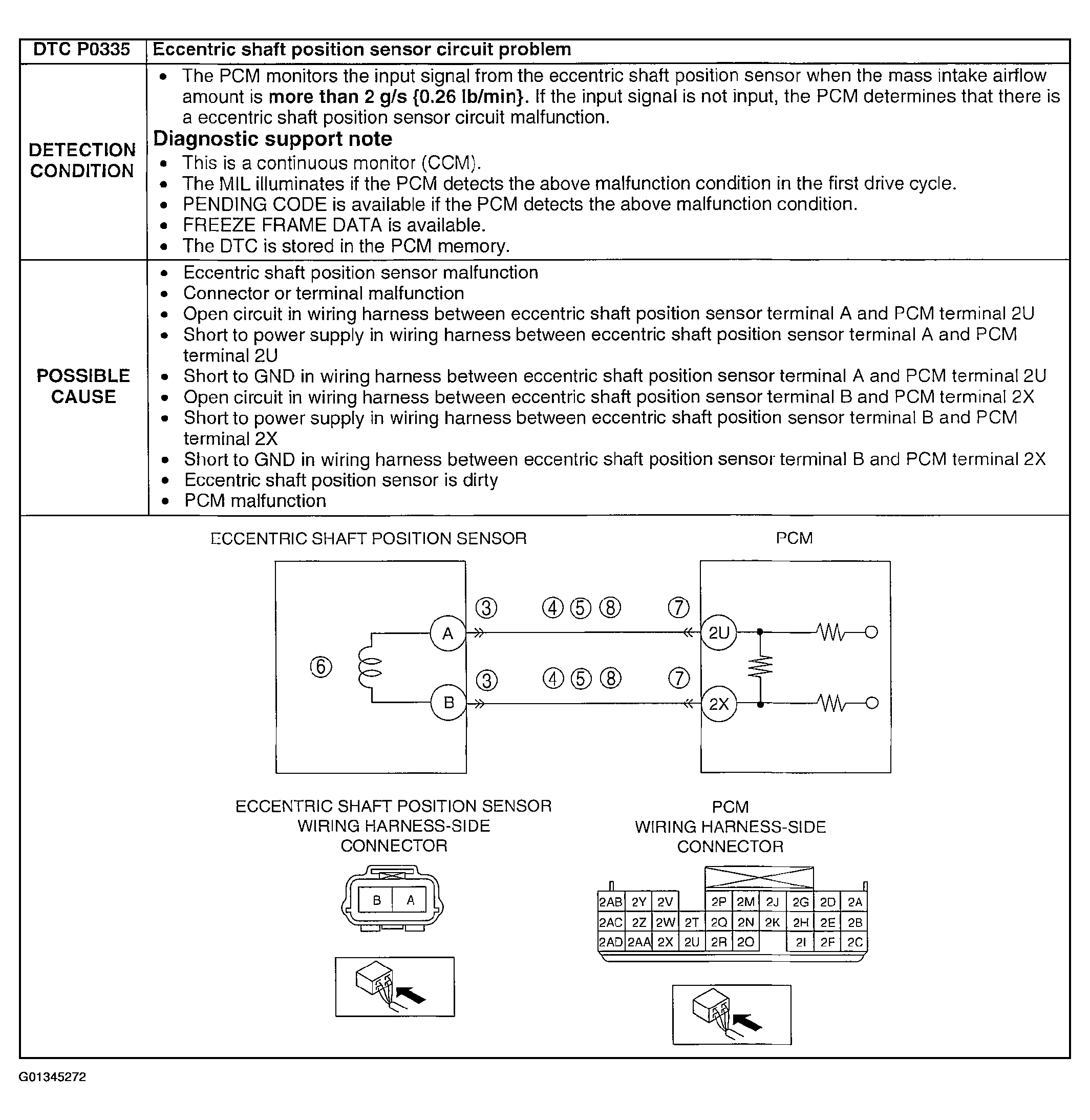

Fig 1: DTC P0335 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

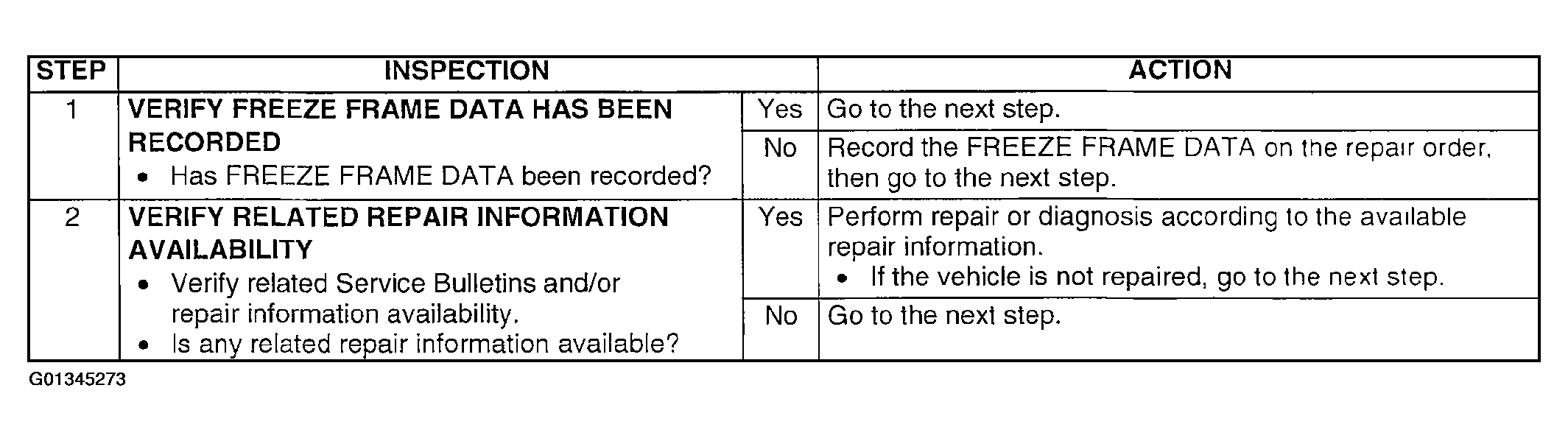

Fig 2: DTC P0335 Diagnostic Procedure Chart (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

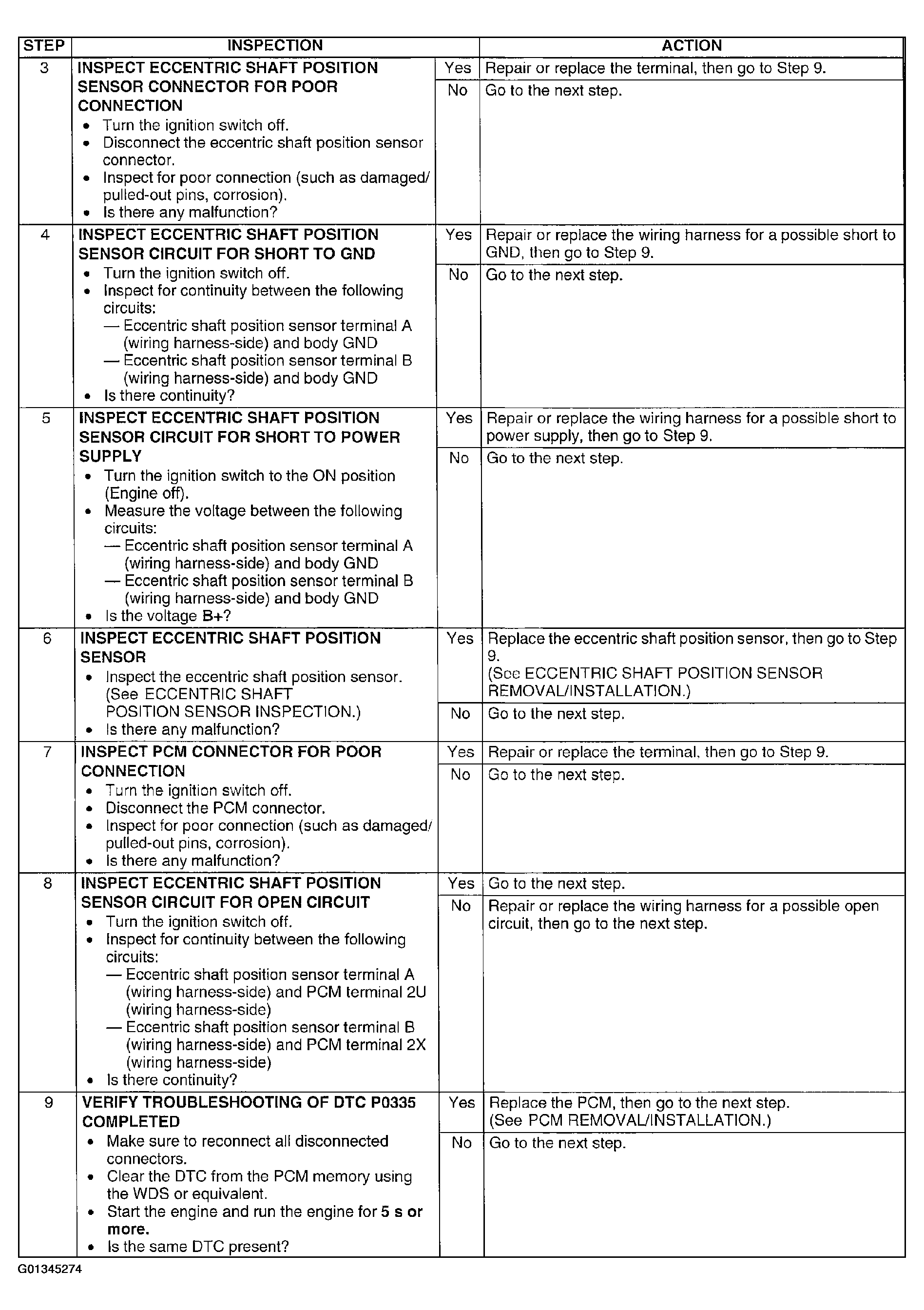

Fig 3: DTC P0335 Diagnostic Procedure Chart (Step 3-9)

Courtesy of MAZDA MOTORS CORP.

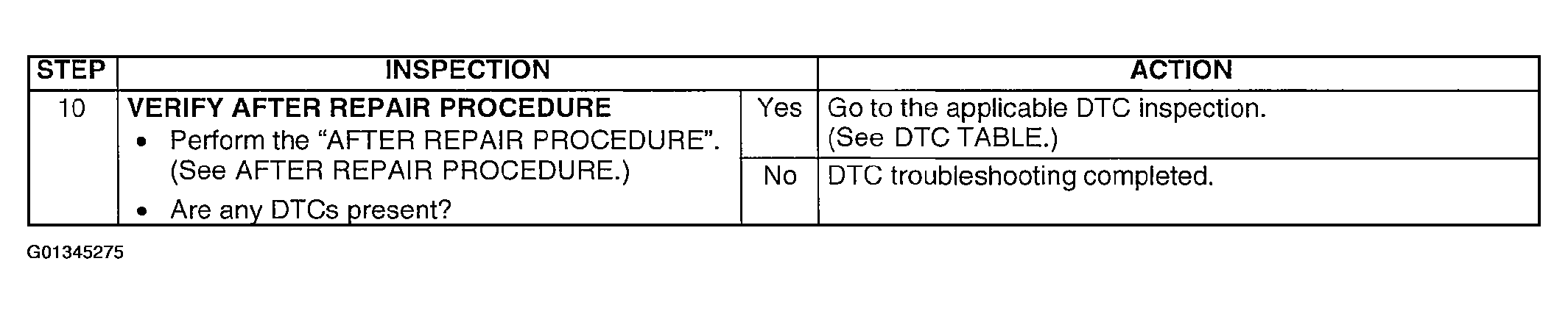

Fig 4: DTC P0335 Diagnostic Procedure Chart (Step 10)

Courtesy of MAZDA MOTORS CORP.
