DTC P0300: Random Misfire Detected

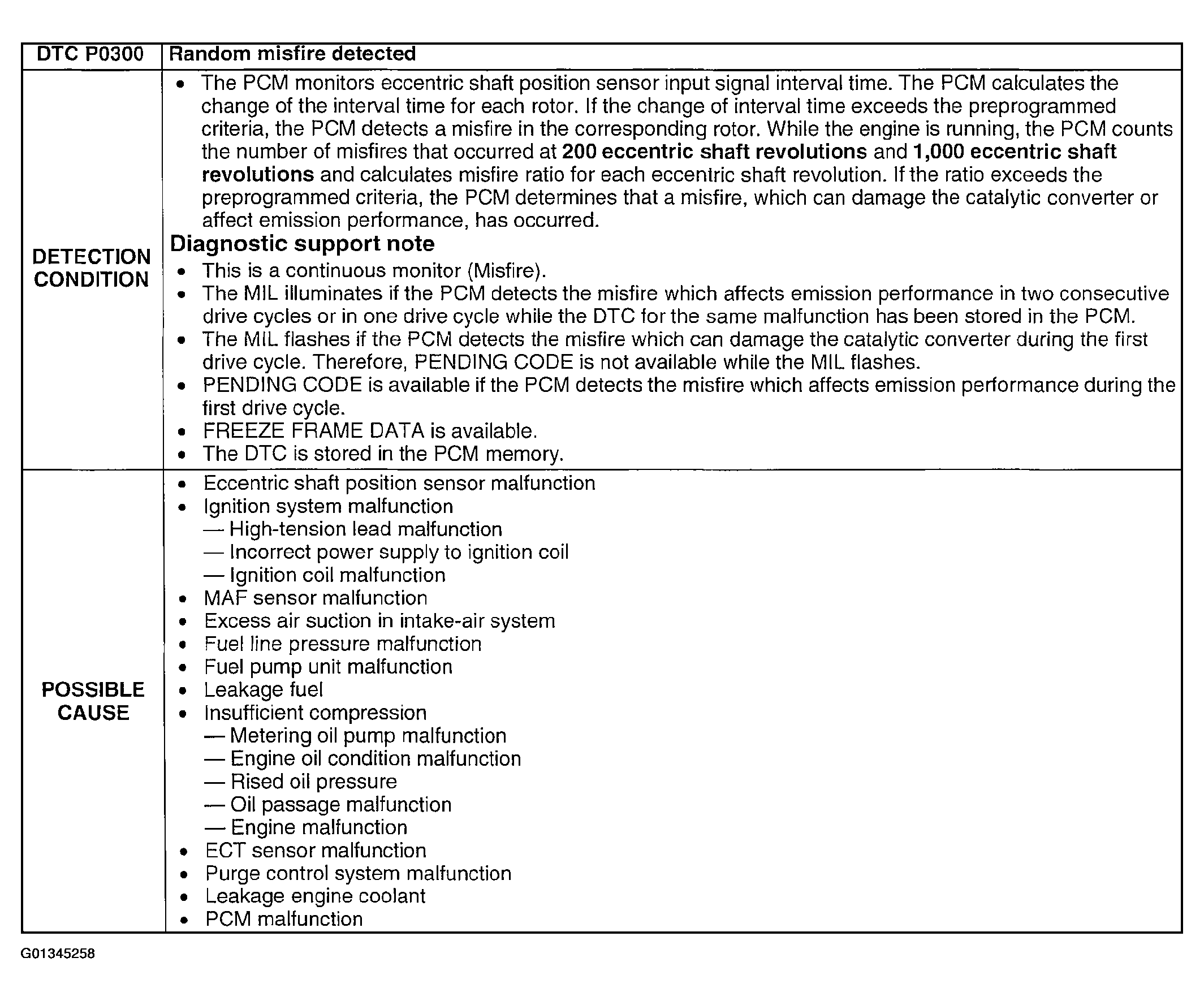

Fig 1: DTC P0300 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

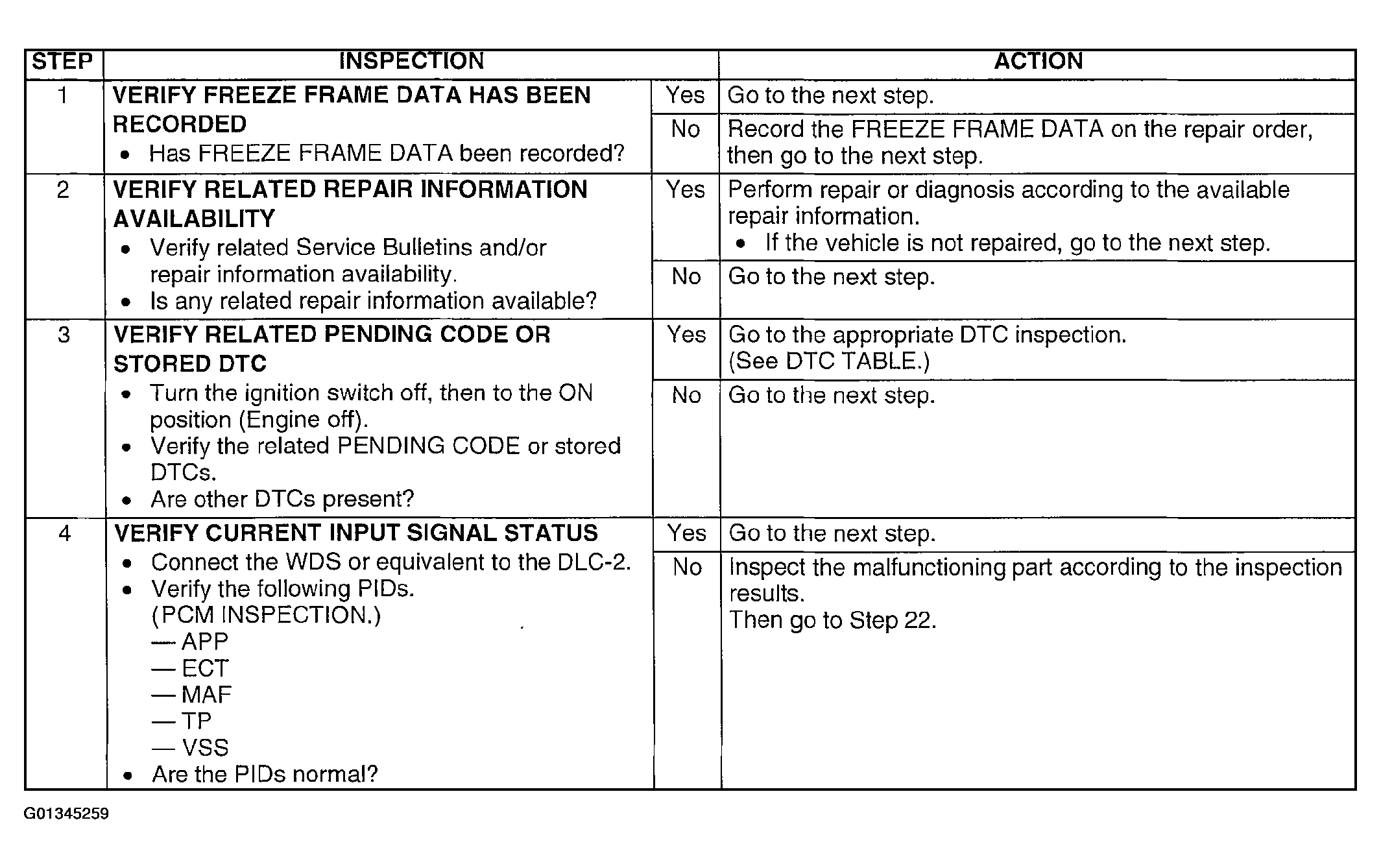

Fig 2: DTC P0300 Diagnostic Procedure Chart (Step 1-4)

Courtesy of MAZDA MOTORS CORP.

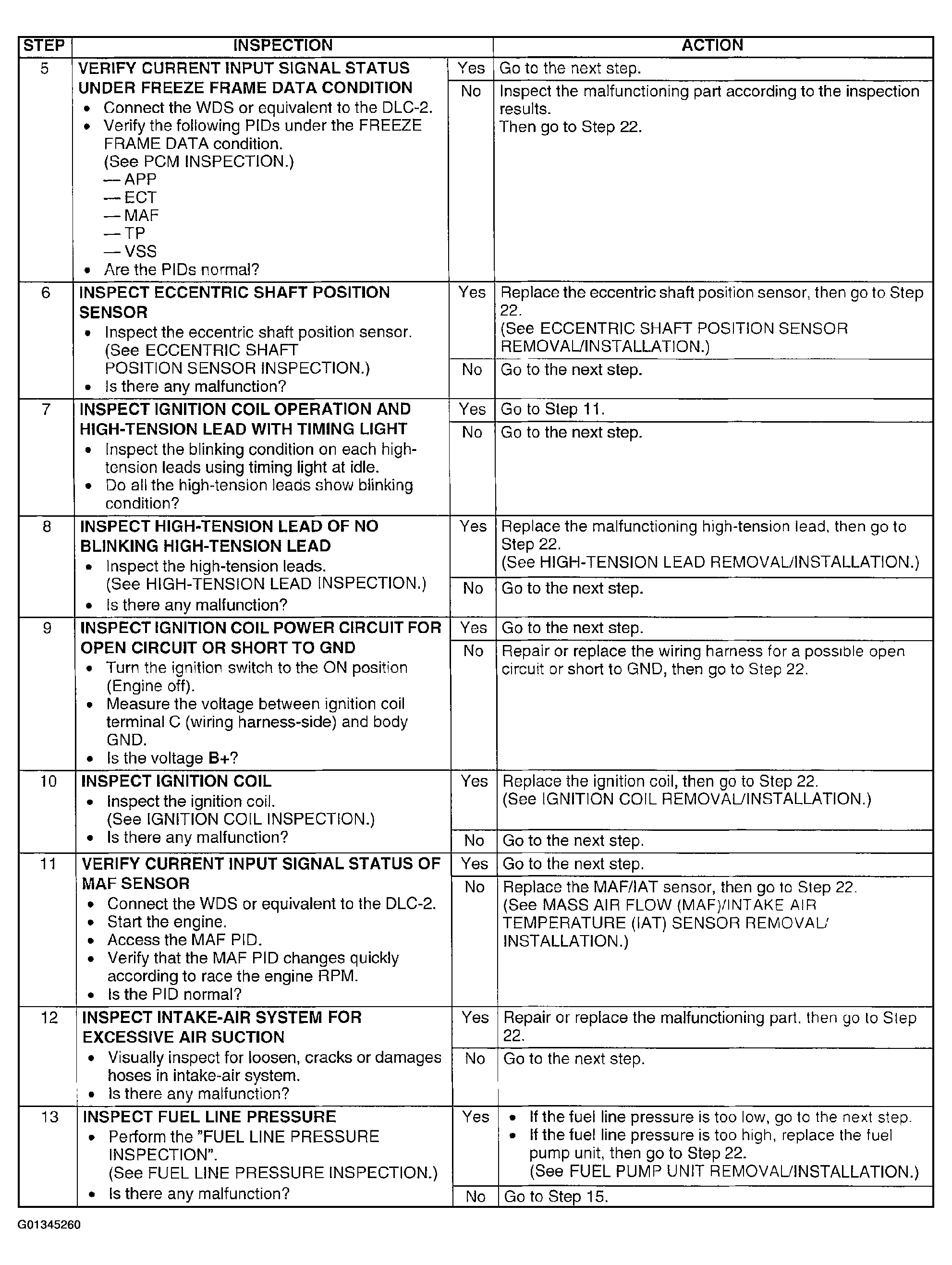

Fig 3: DTC P0300 Diagnostic Procedure Chart (Step 5-13)

Courtesy of MAZDA MOTORS CORP.

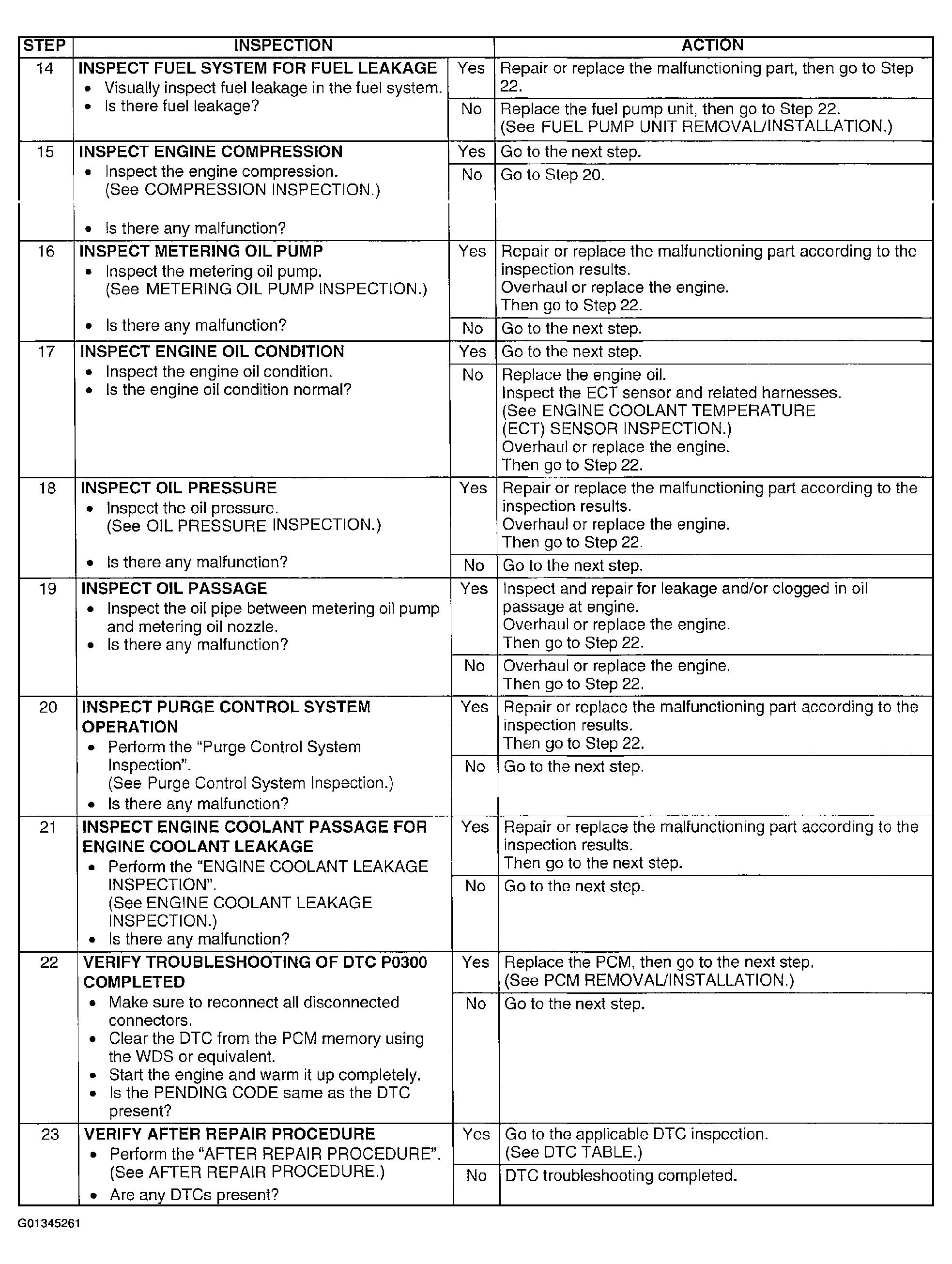

Fig 4: DTC P0300 Diagnostic Procedure Chart (Step 14-23)

Courtesy of MAZDA MOTORS CORP.
