DTC P0172: System Too Rich

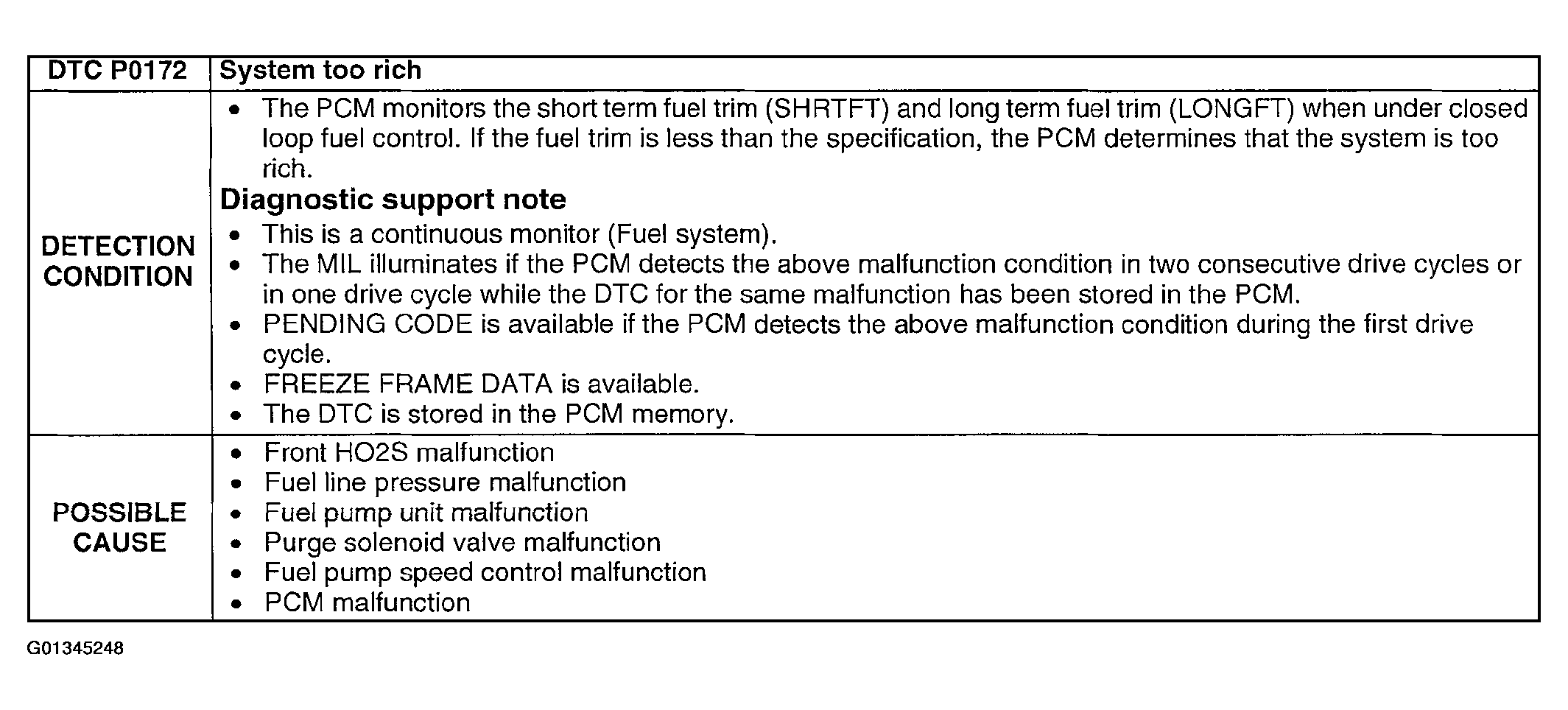

Fig 1: DTC P0172 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

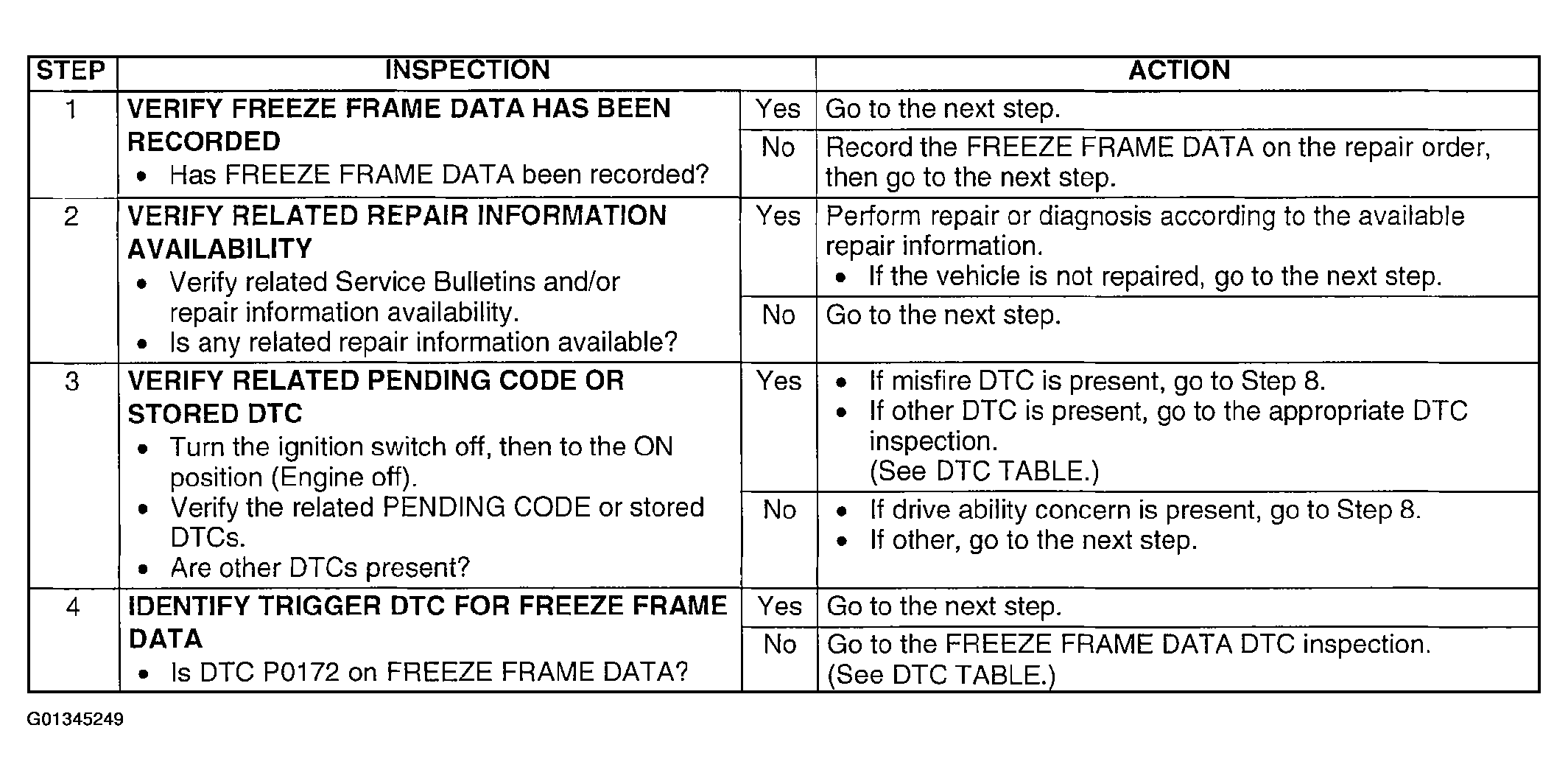

Fig 2: DTC P0172 Diagnostic Procedure Chart (Step 1-4)

Courtesy of MAZDA MOTORS CORP.

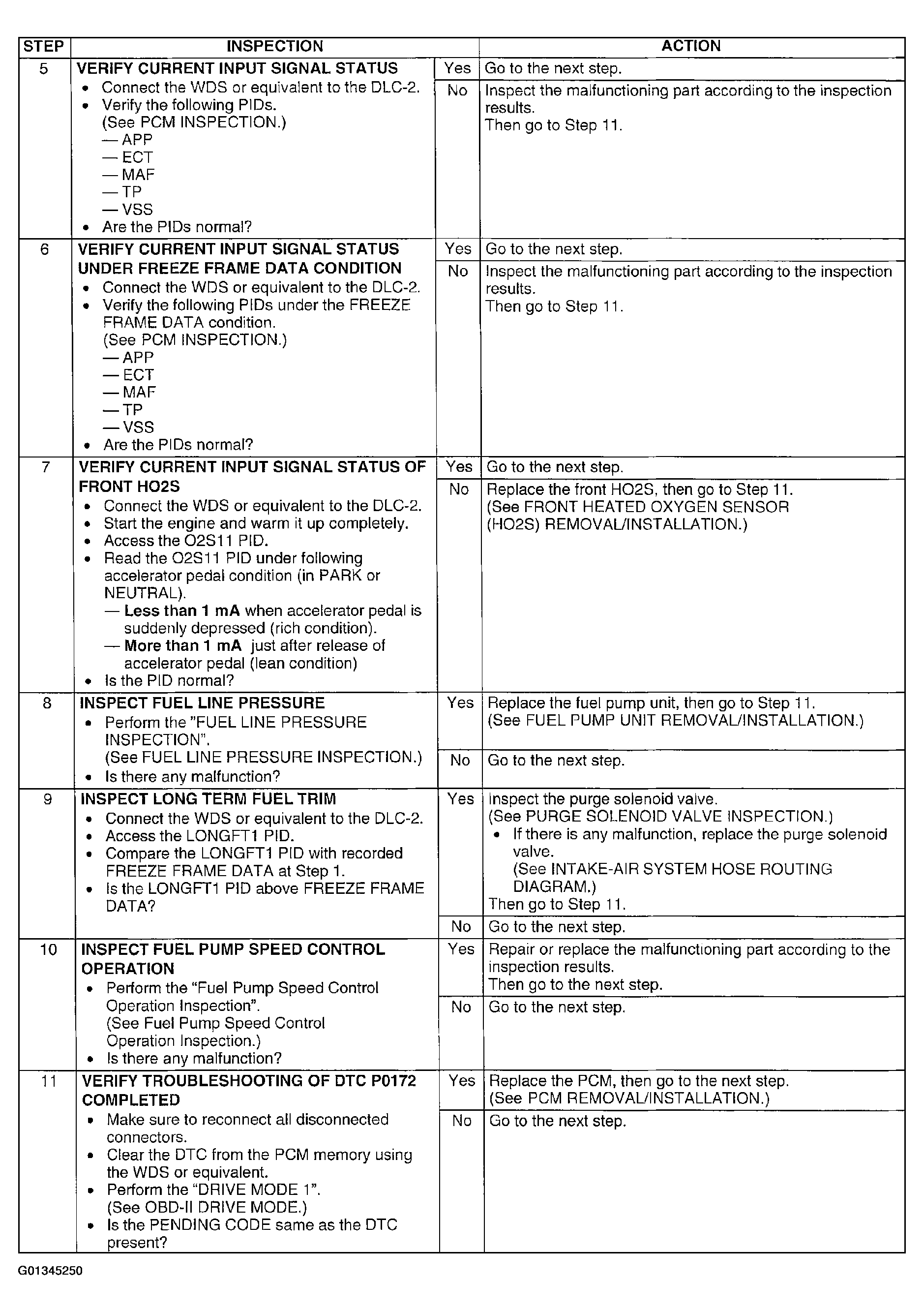

Fig 3: DTC P0172 Diagnostic Procedure Chart (Step 5-11)

Courtesy of MAZDA MOTORS CORP.

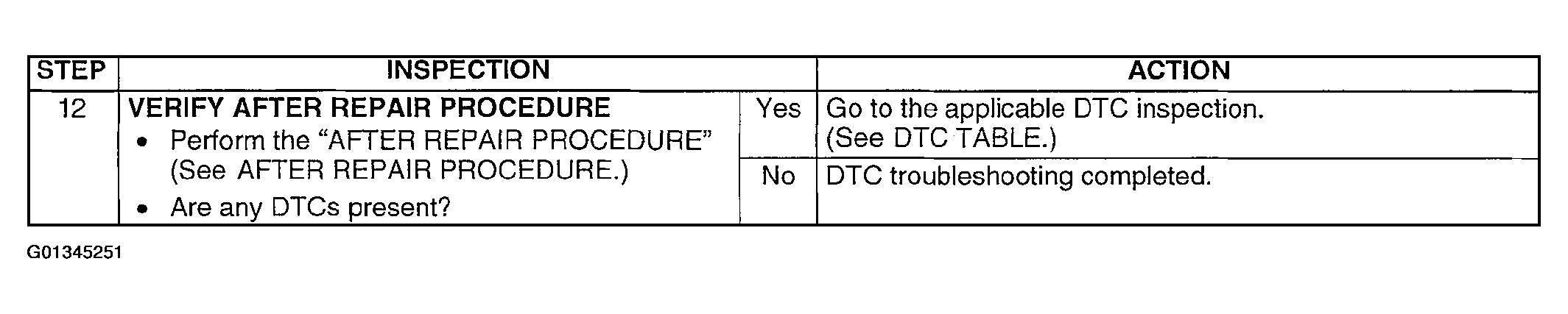

Fig 4: DTC P0172 Diagnostic Procedure Chart (Step 12)

Courtesy of MAZDA MOTORS CORP.
