DTC P0171: System Too Lean

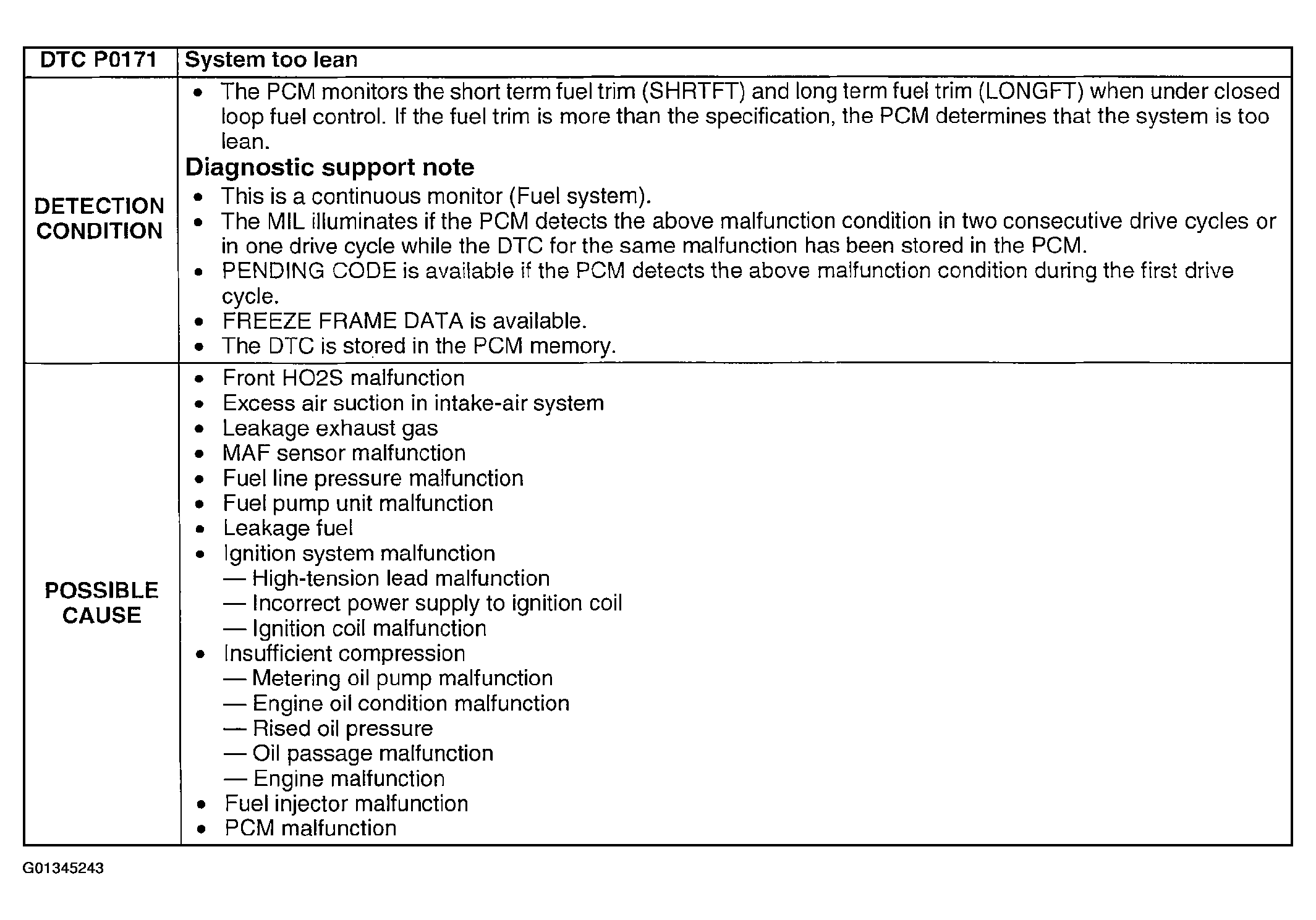

Fig 1: DTC P0171 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

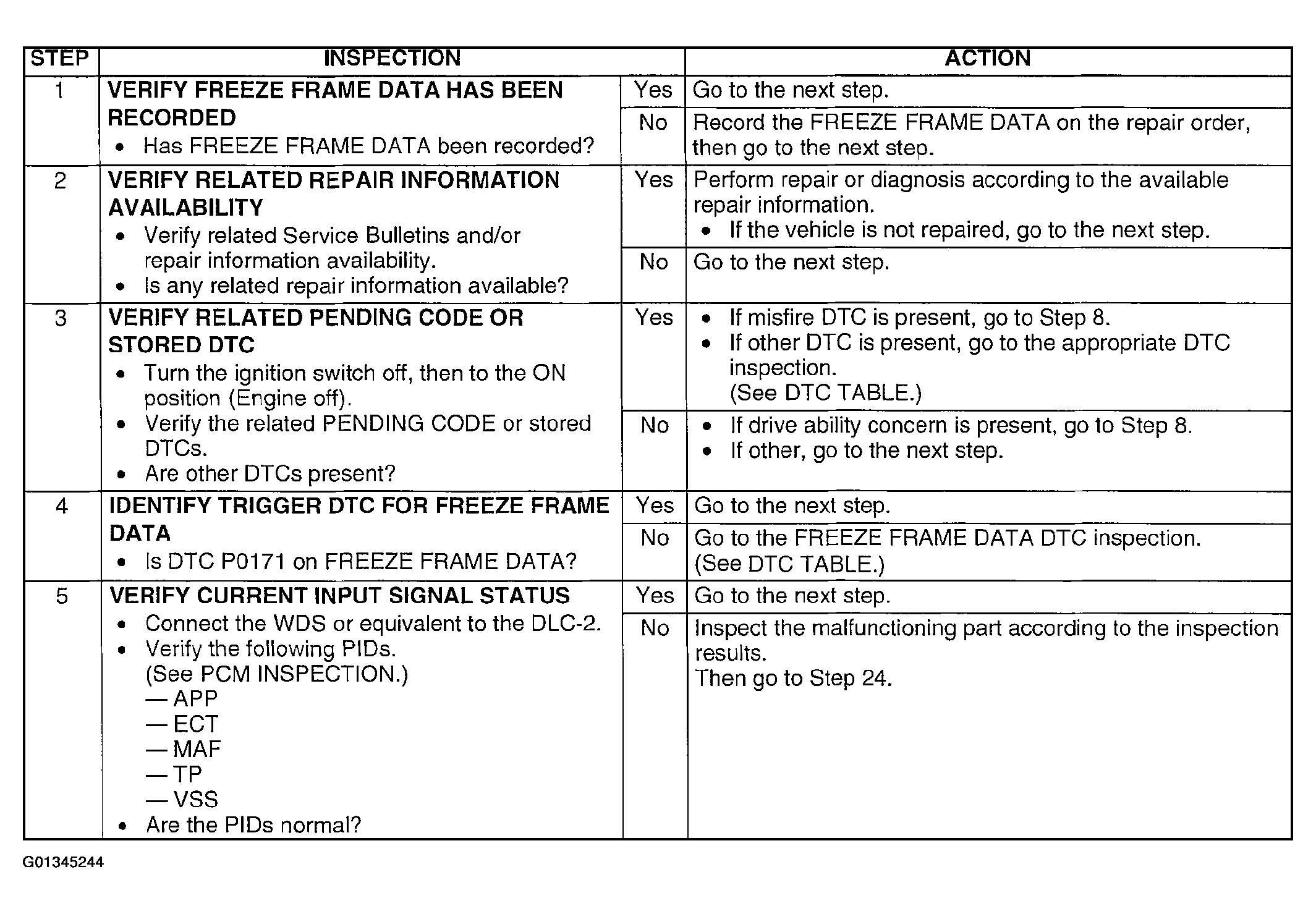

Fig 2: DTC P0171 Diagnostic Procedure Chart (Step 1-5)

Courtesy of MAZDA MOTORS CORP.

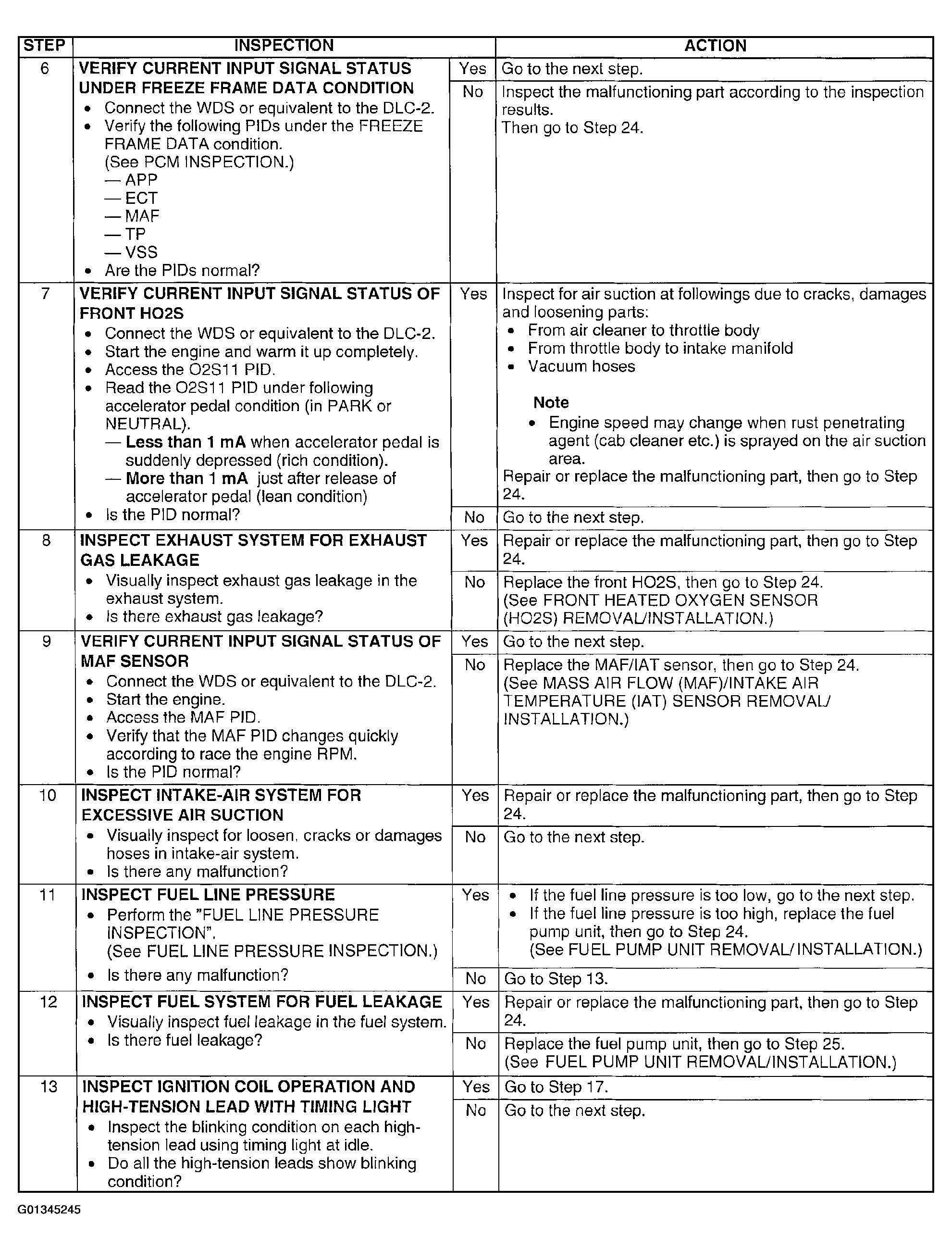

Fig 3: DTC P0171 Diagnostic Procedure Chart (Step 6-13)

Courtesy of MAZDA MOTORS CORP.

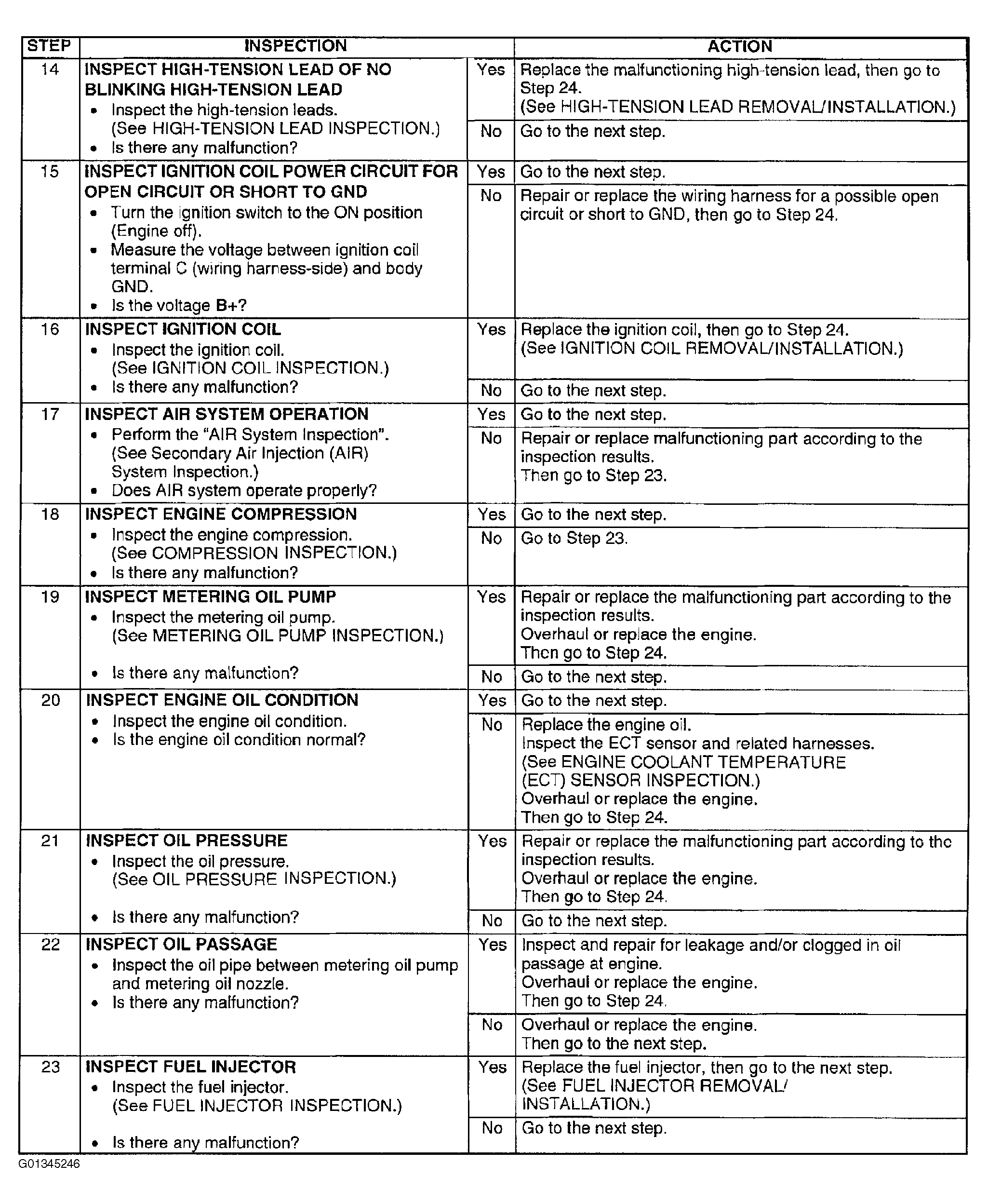

Fig 4: DTC P0171 Diagnostic Procedure Chart (Step 14-23)

Courtesy of MAZDA MOTORS CORP.

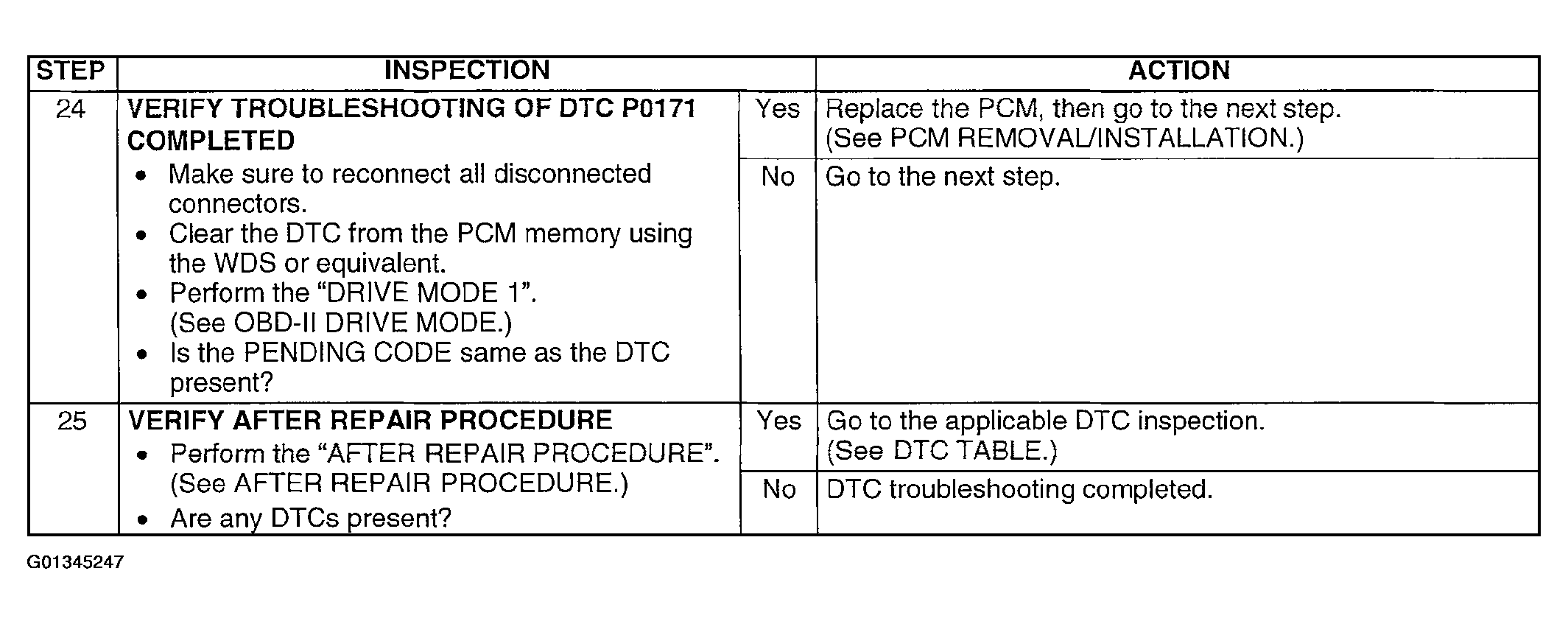

Fig 5: DTC P0171 Diagnostic Procedure Chart (Step 24-25)

Courtesy of MAZDA MOTORS CORP.
