Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the trunk side trim.
  2. Remove in the order indicated. See Fig 1.
    Fig 1: Removing/Installing Sequence Order Of Rear ABS Wheel-Speed Sensor
    G01344993Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.

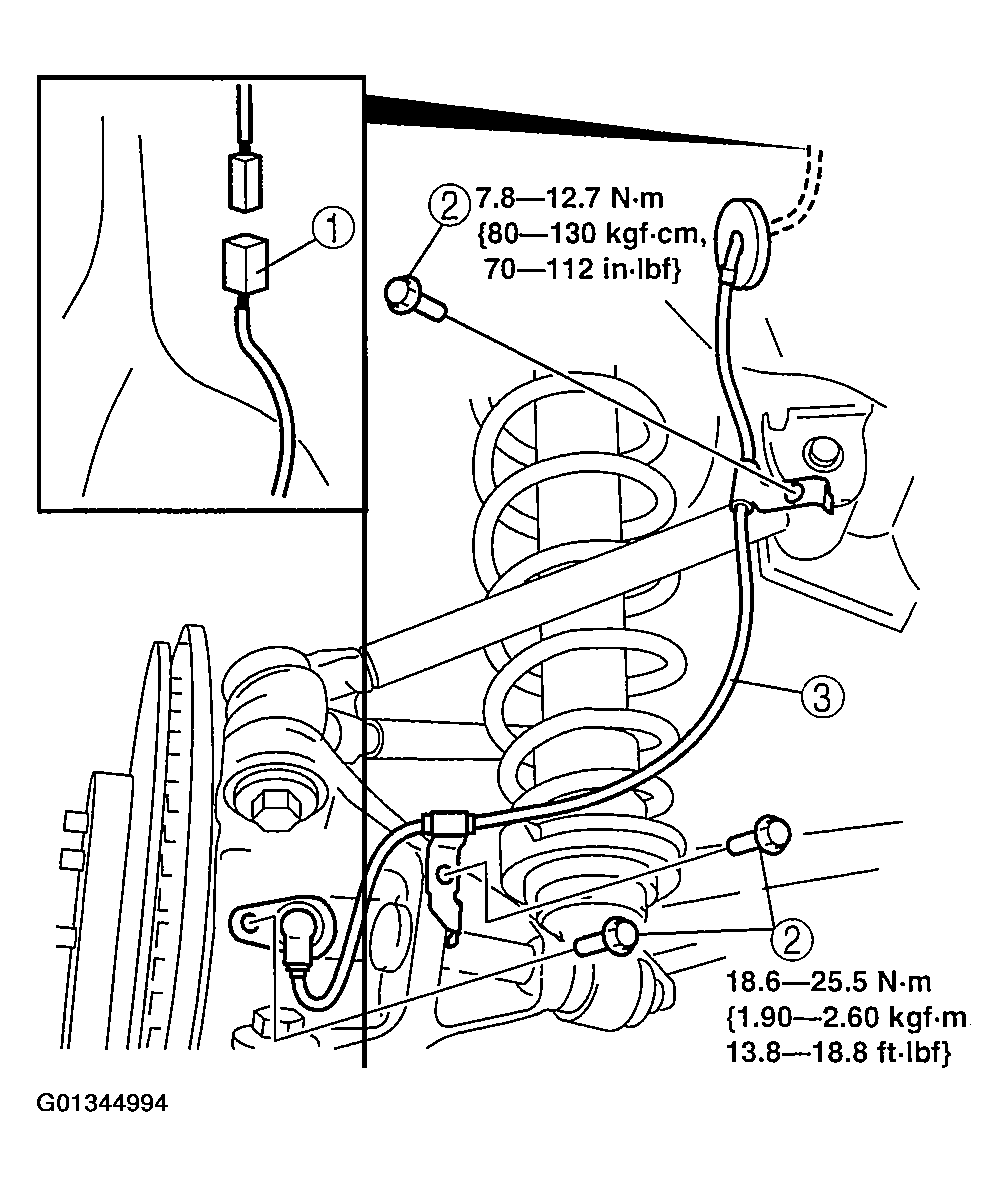

    Fig 2: Removing/Installing Rear ABS Wheel-Speed Sensor
    G01344994Courtesy of MAZDA MOTORS CORP.
