Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

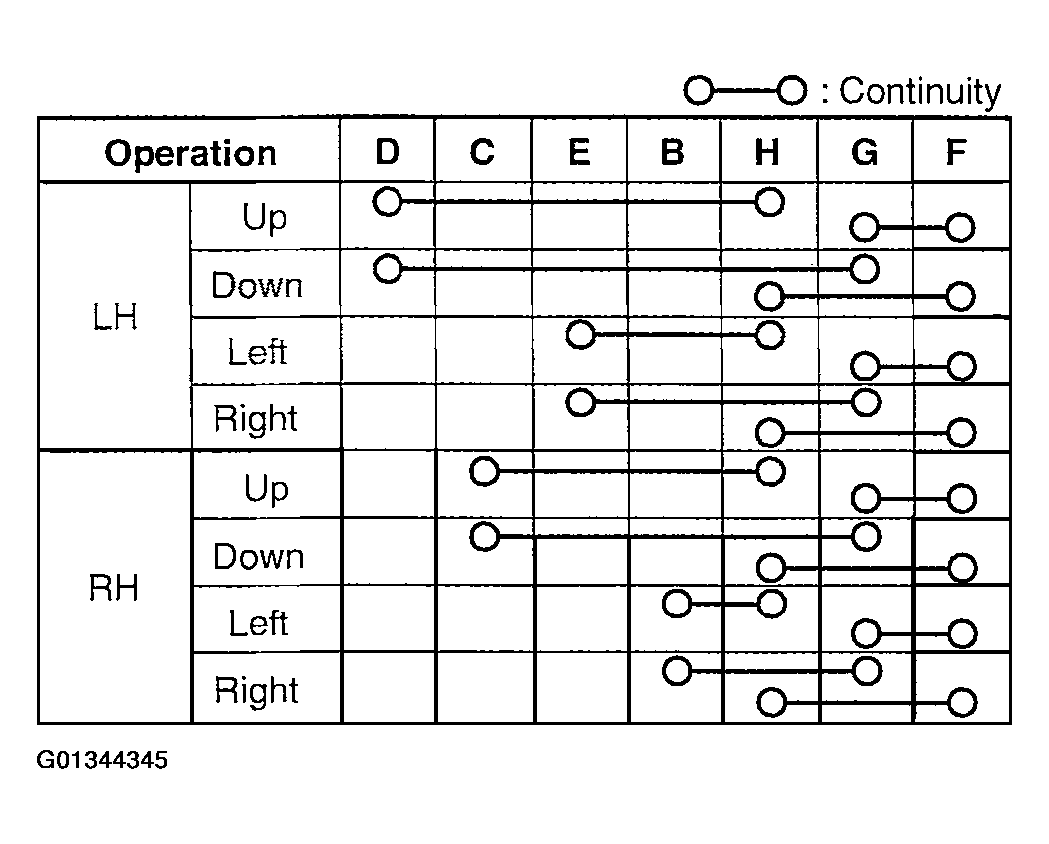

Fig 1: Continuity Check
Courtesy of MAZDA MOTORS CORP.

If not as specified, replace the power outer mirror switch.

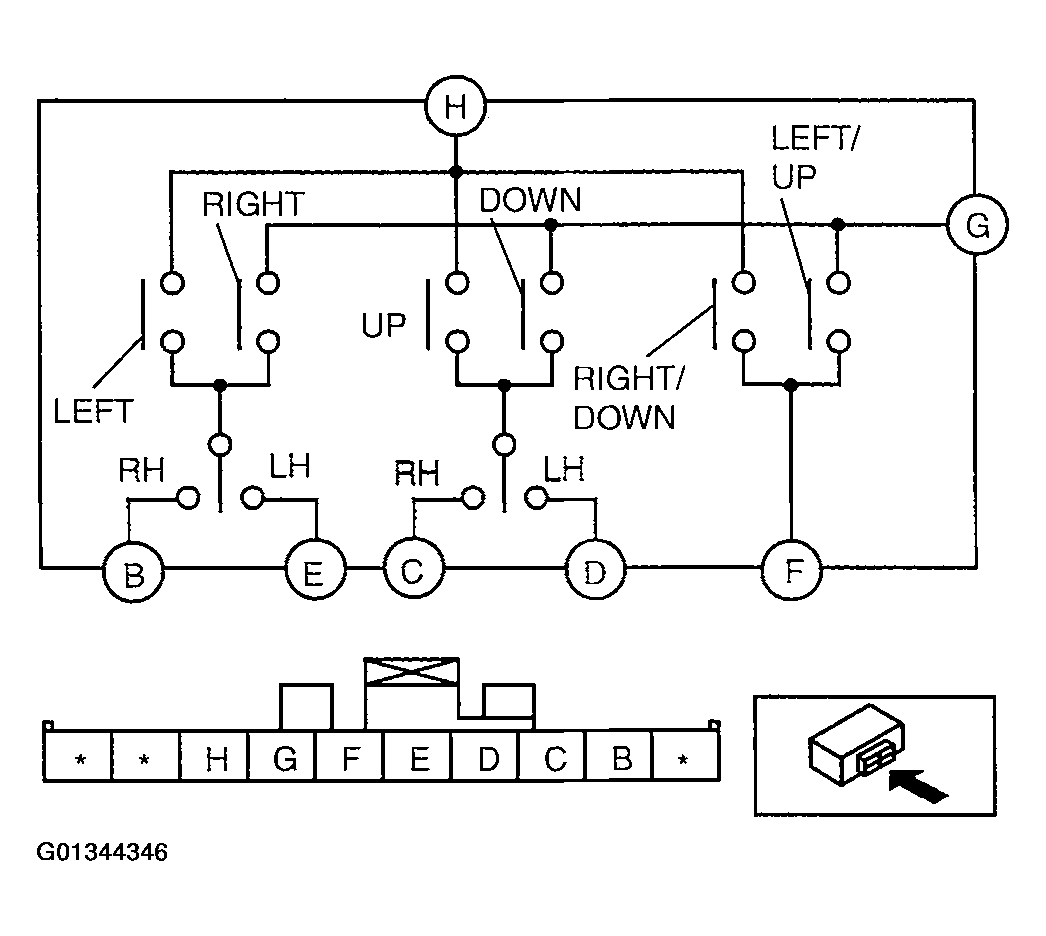

Fig 2: Inspecting Power Outer Mirror Switch
Courtesy of MAZDA MOTORS CORP.
