Outer Mirror Glass Assembly Note

  1. Press area A of the mirror glass into the base to attach pin A.

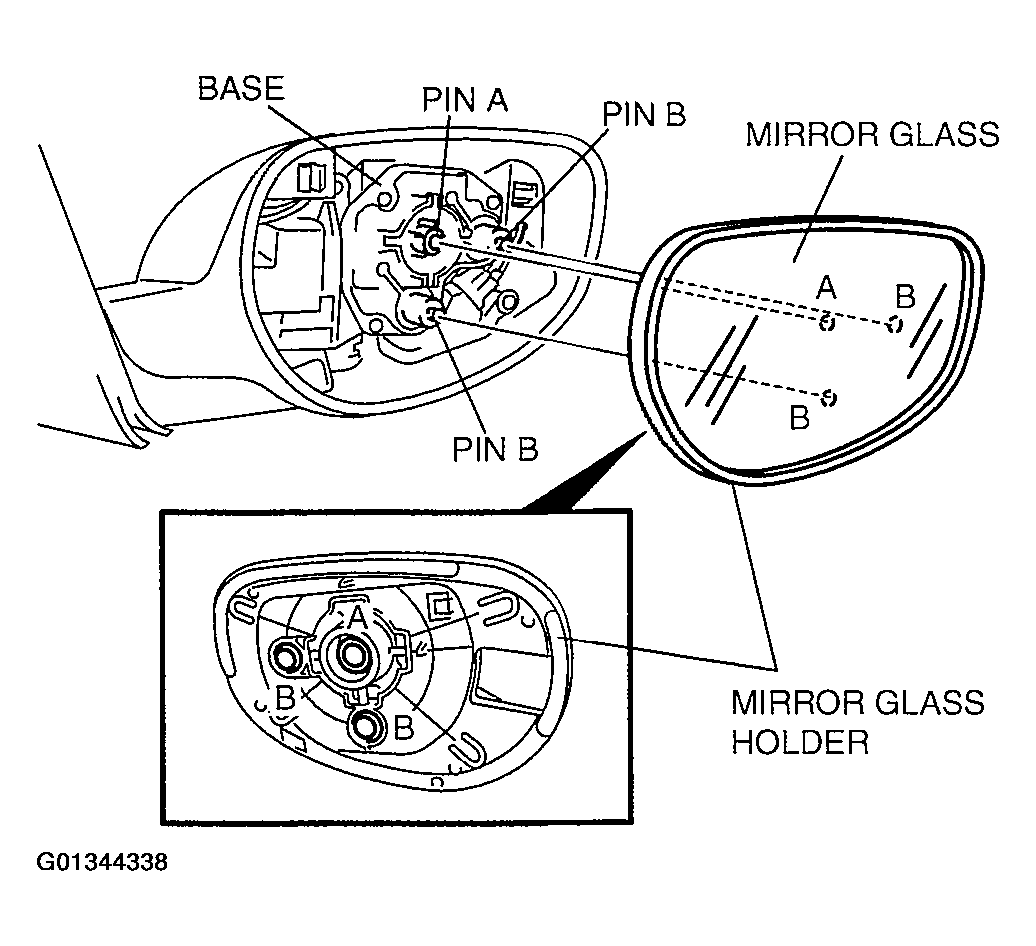

    Fig 1: Assembling Outer Mirror Glass
    G01344338Courtesy of MAZDA MOTORS CORP.
  2. Press areas B of the mirror glass into the base to attach pins B.
