Front Door Glass Removal/Installation
- Position the front door glass so that the distance between the top of the front door glass and top of the front belting molding is 140 mm {5.51 in}.
Courtesy of MAZDA MOTORS CORP.
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION
.)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Remove the hole cover.
Courtesy of MAZDA MOTORS CORP.

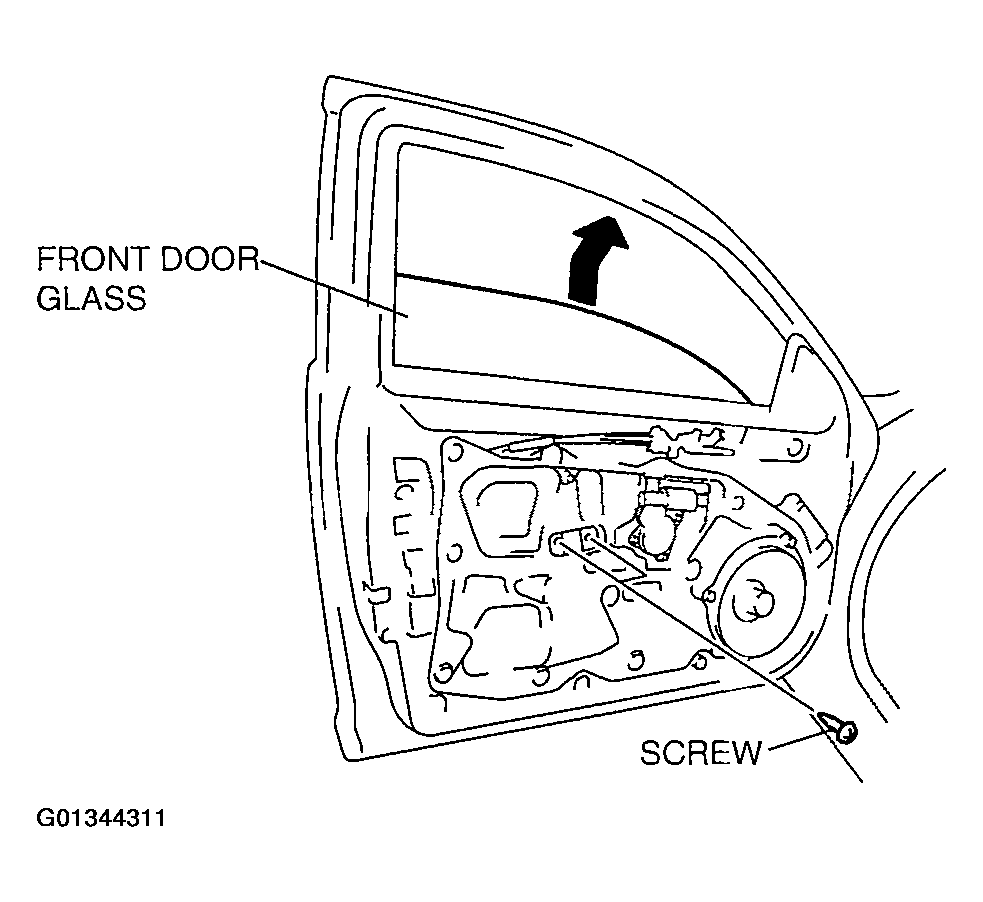

- Remove the screws.
- Lift the front door glass up, then remove it while tilting it in the direction of the arrow.
- Install in the reverse order of removal.
