Symptom Troubleshooting [Keyless Entry System)
>>
Keyless Entry System Preliminary Inspection
Keyless Entry System Preliminary Inspection
Perform the following preliminary inspection before troubleshooting.

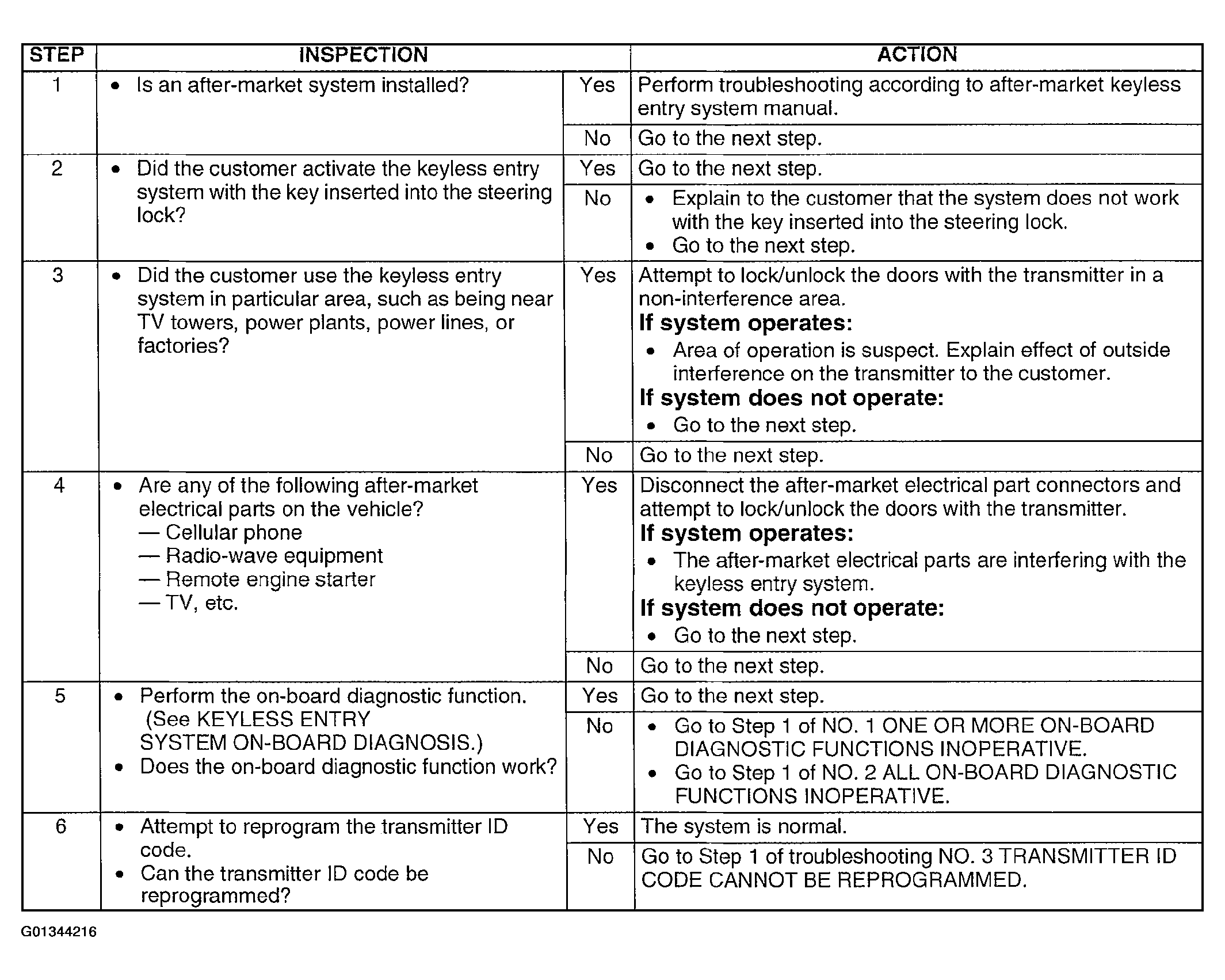

Fig 1: Possible Causes - Keyless Entry System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
