Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
Control System Device & Control Relationship Chart [BP With TC]
>>
Engine Control System
Engine Control System

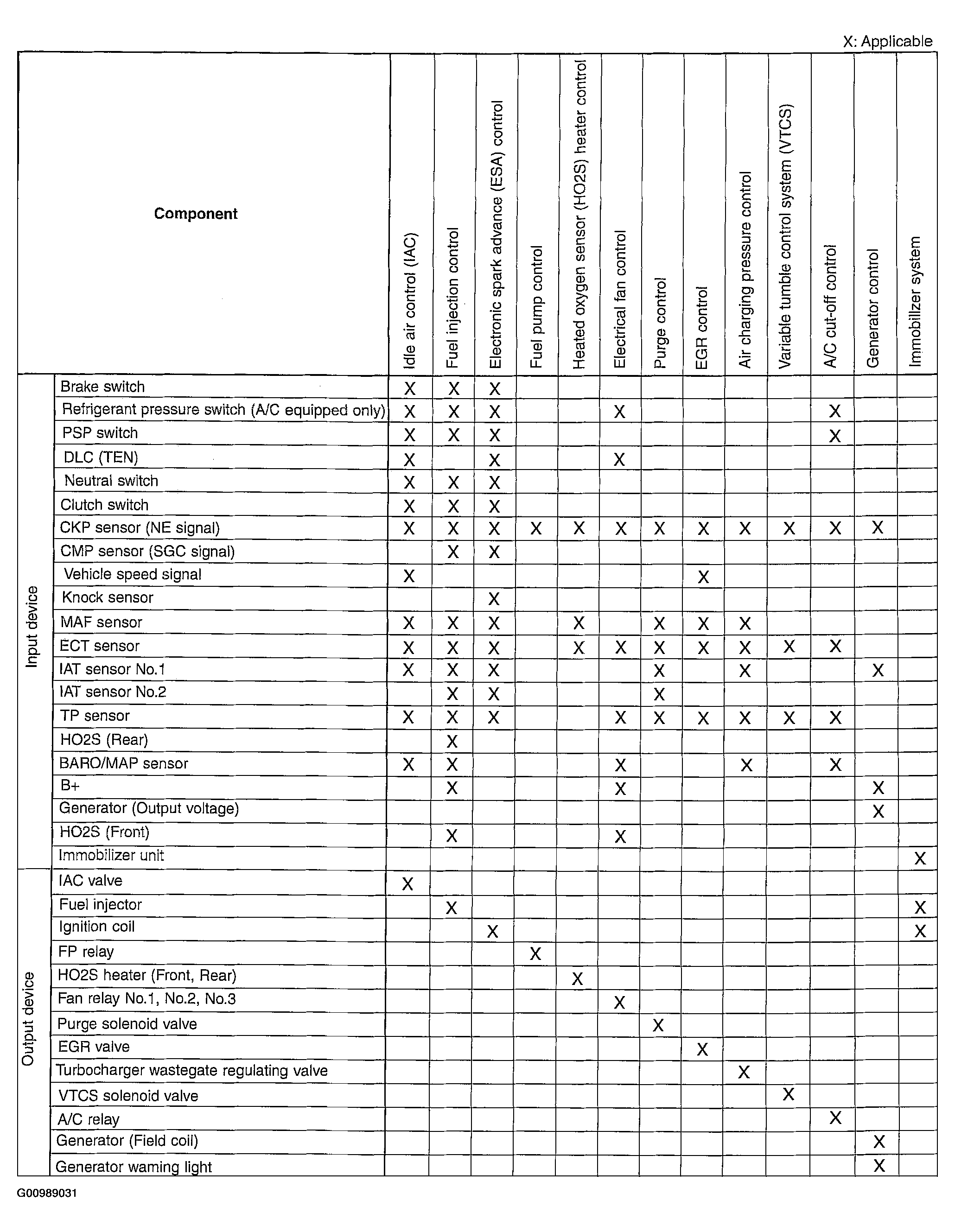

Fig 1: Control System Device & Control Relationship Chart [BP With TC] - Engine Control System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
