On-Board Diagnostic (Engine Control System BP, BP With TC]
>>
Control System Device & Control Relationship Chart [BP]
>>
Engine Control System
Engine Control System

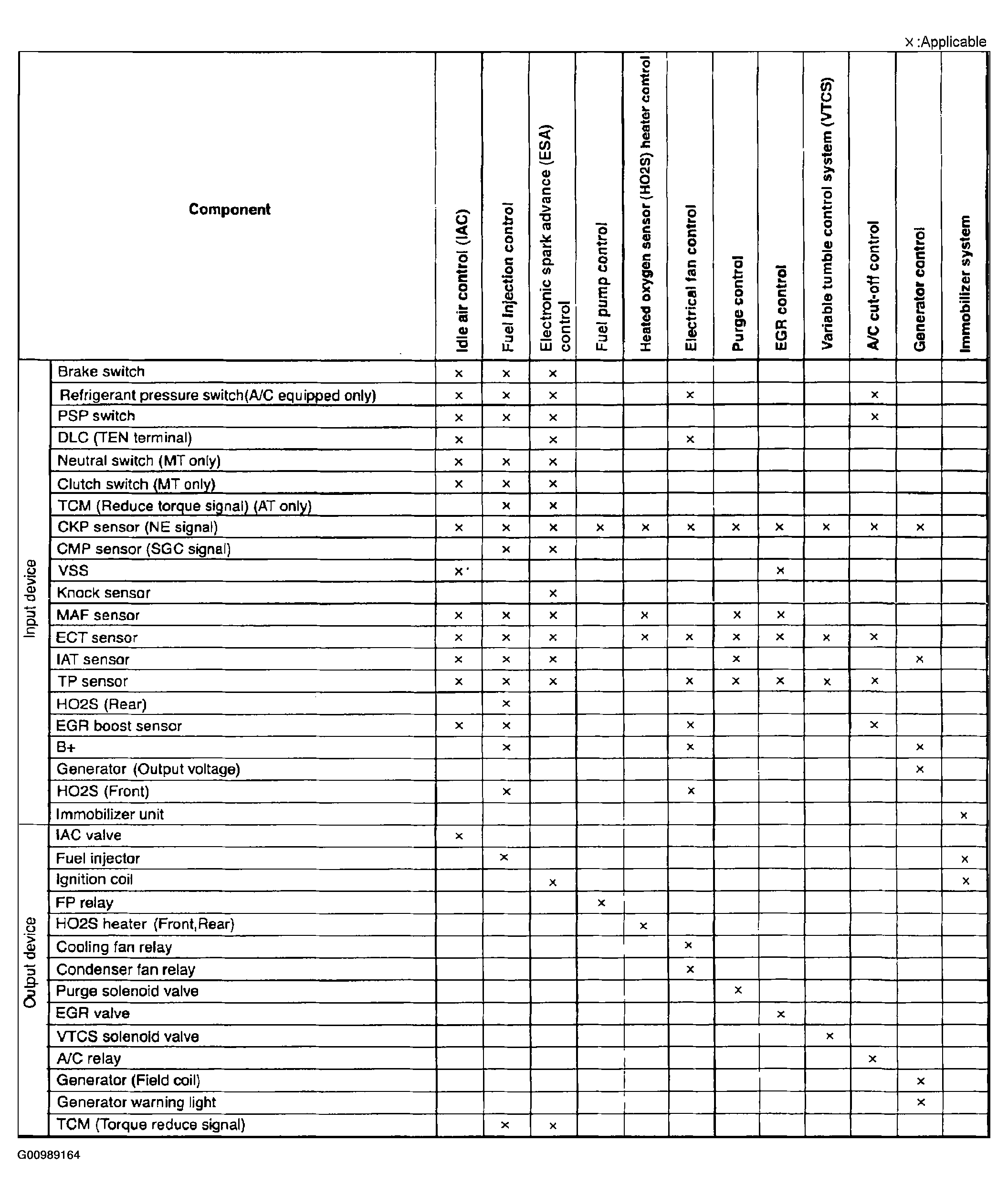

Fig 1: Control System Device & Control Relationship Chart - BP (Engine Control System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
