Joint Hose Installation Note

  1. Fit the joint hose onto the respective fittings within specification, and install clamps as shown.

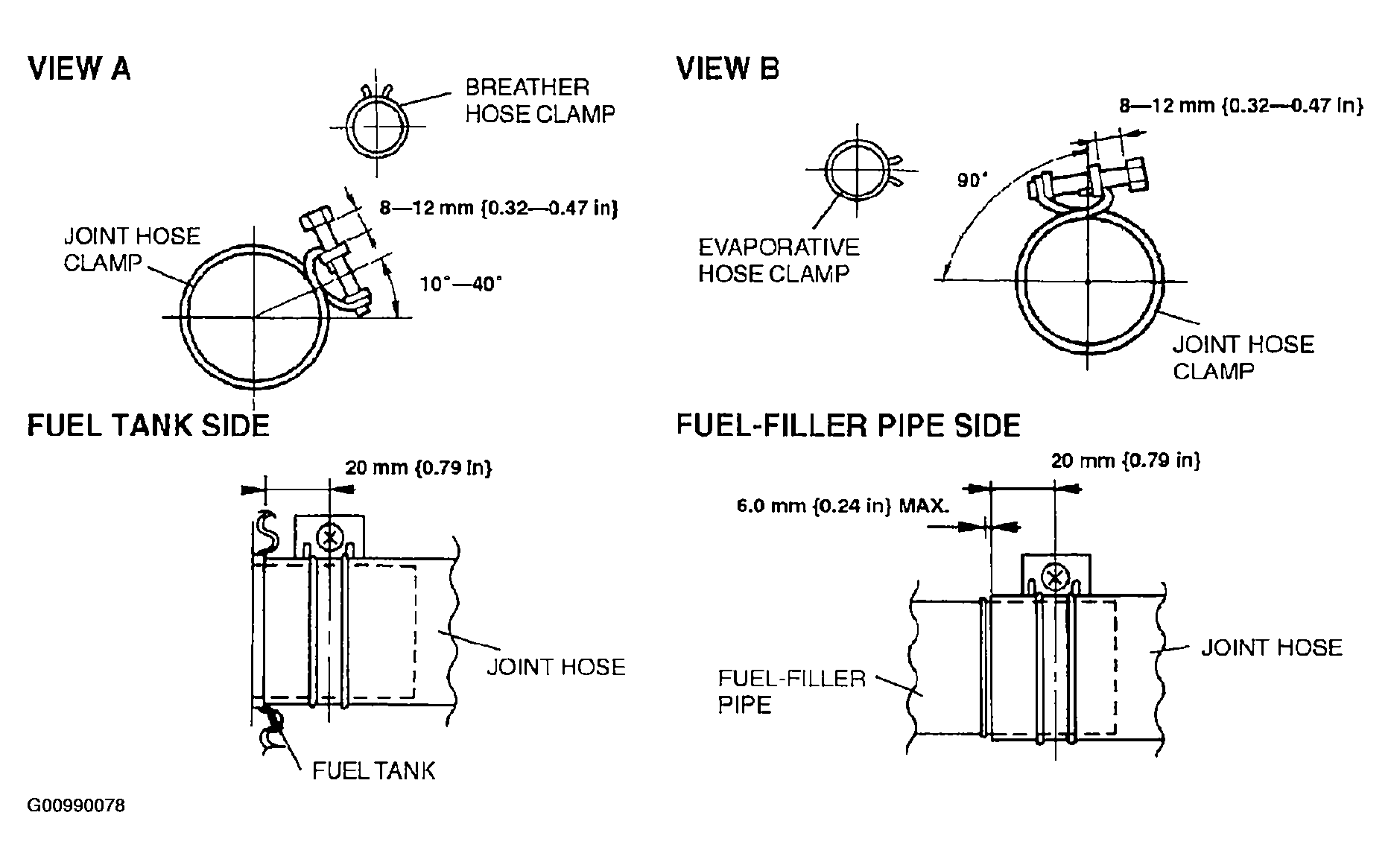

    Fig 1: Installing Clamps Onto Respective Fittings, Within Specification
    G00990078Courtesy of MAZDA MOTORS CORP.
