Fuel System Location Index

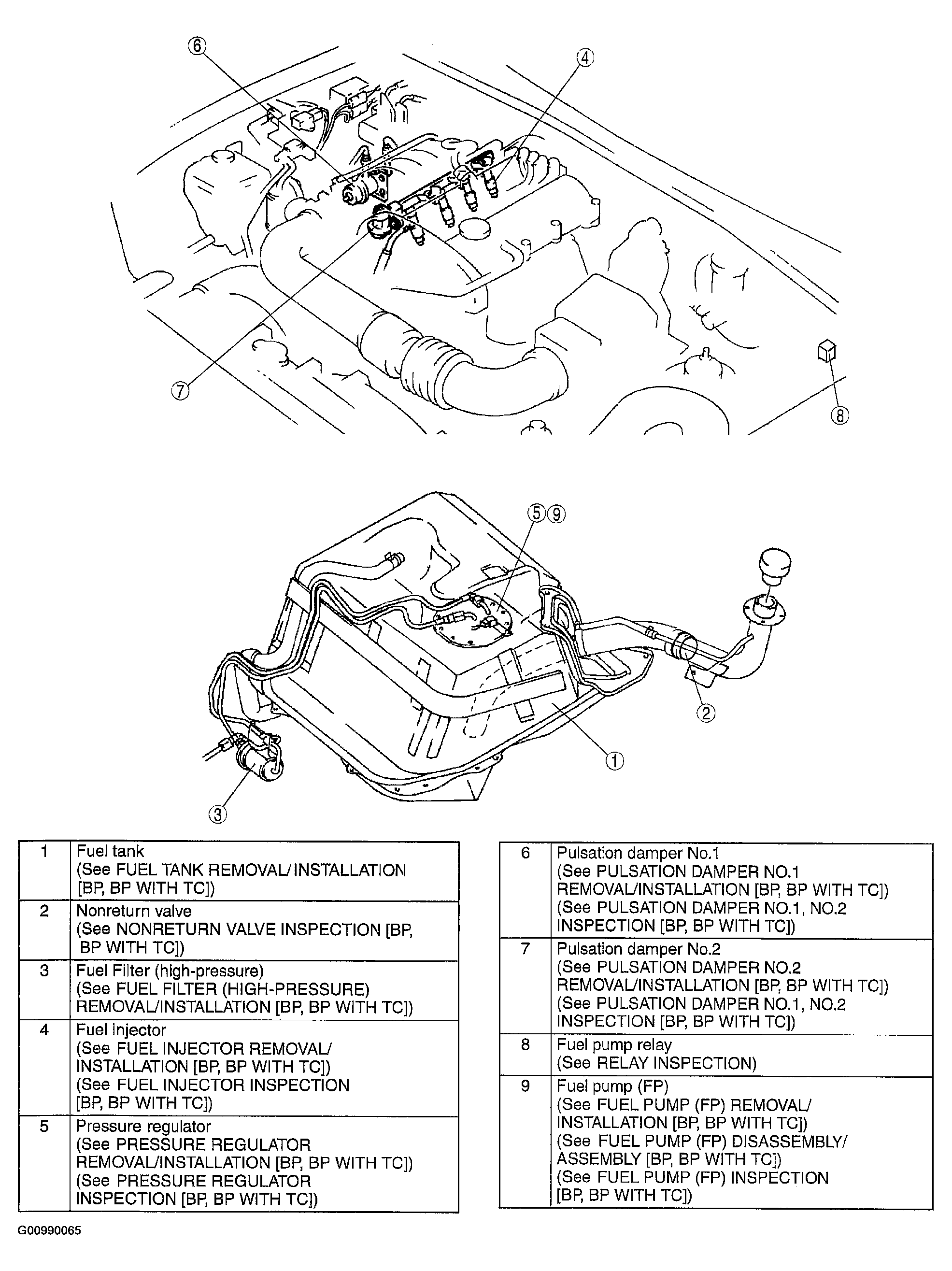

Fig 1: Locating Fuel System Components [BP, BP With TC]

G00990065

Courtesy of MAZDA MOTORS CORP.
