Abs HU/Cm Removal/Installation: Notes

  1. Remove in the order indicated in the illustration. See Fig 1 .
  2. Install in the reverse order of removal.

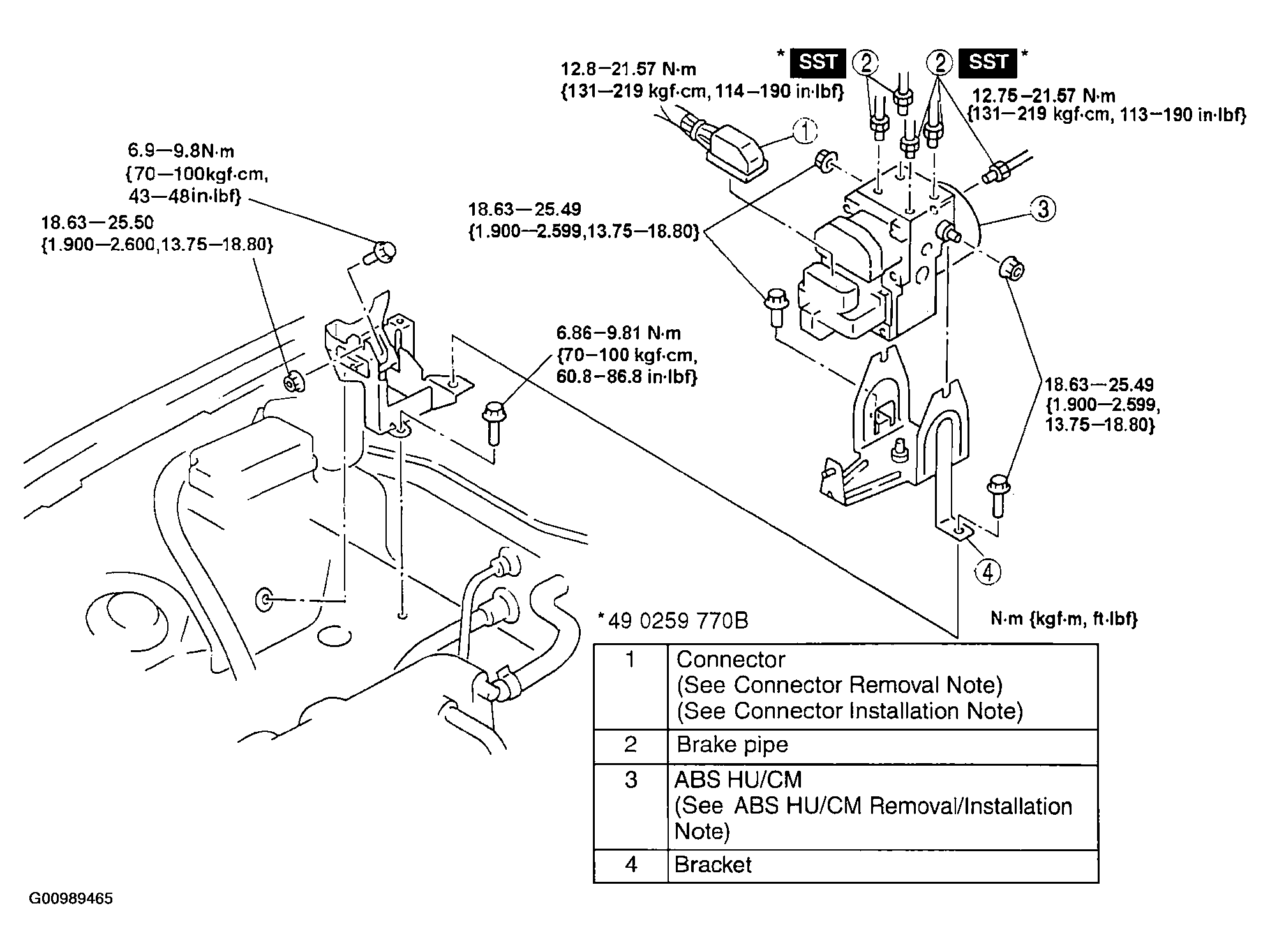

Fig 1: Removing/Installing ABS HU/CM
G00989465Courtesy of MAZDA MOTORS CORP.
