Power Outside Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION .)
  3. Disconnect the power outside mirror connector.
  4. Turn the power outside mirror forward.
  5. Remove the screws.
  6. Remove the power outside mirror.
  7. Install in the reverse order of removal.

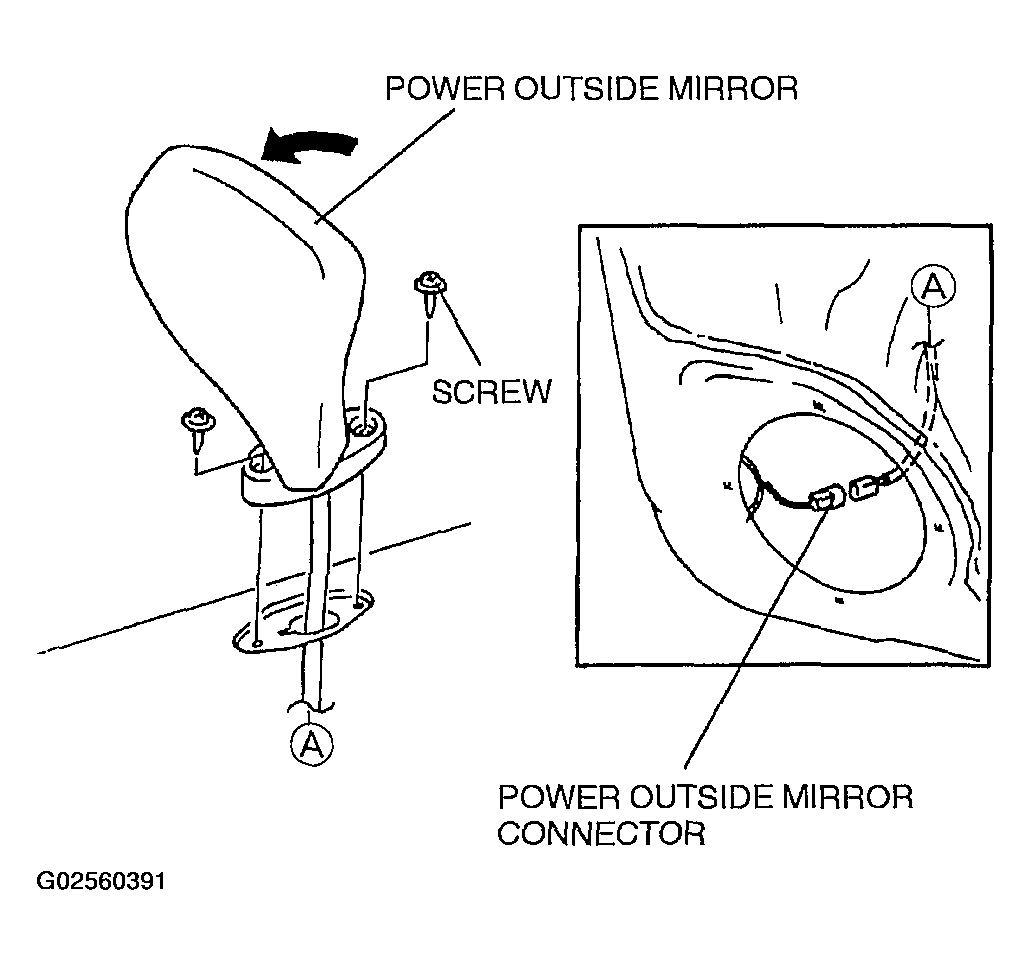

    Fig 1: Removing/Installing Power Outside Mirror
    G02560391Courtesy of MAZDA MOTORS CORP.
