Room Fuse Installation

NOTE:
  • When the ROOM fuse is burnt or removed, the malfunction indicator lamp illuminates. If the ROOM fuse is replaced or installed with the ignition switch at the ON position, the malfunction indicator lamp will continue to illuminate.
  1. Turn the ignition switch to the LOCK position.
  2. Install the ROOM fuse.

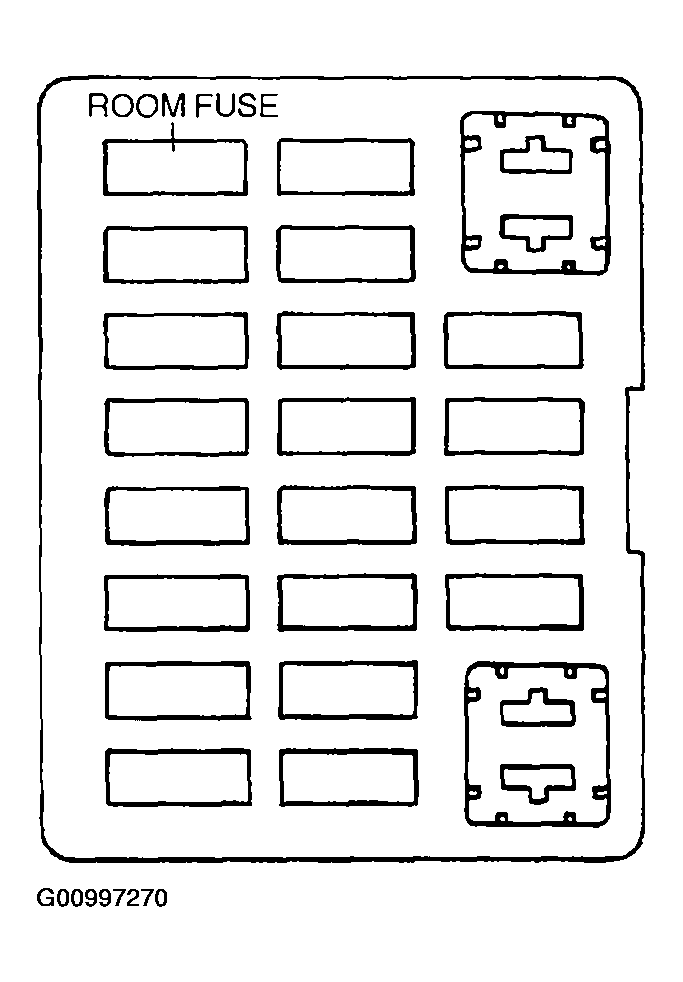

    Fig 1: Locating Room Fuse
    G00997270Courtesy of MAZDA MOTORS CORP.
