DTC P0401: EGR Flow Insufficient Detected: Notes

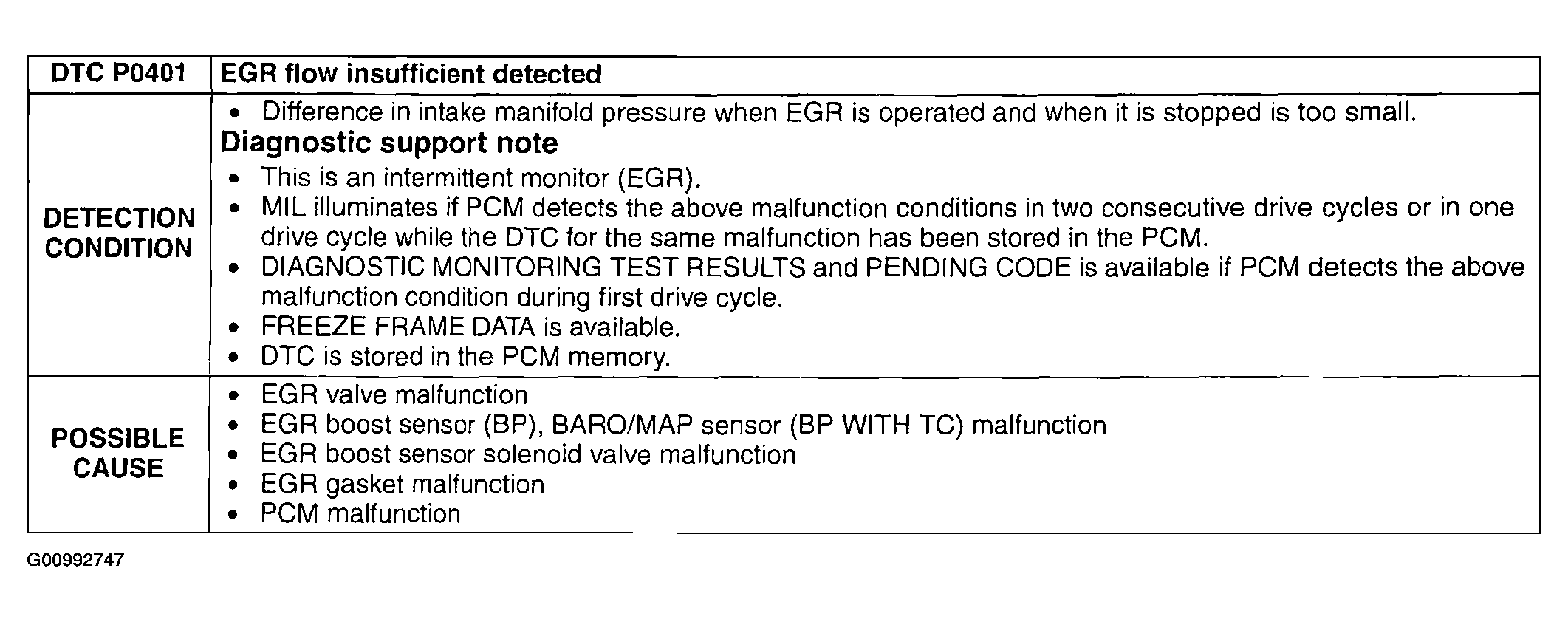

Fig 1: Possible Causes - DTC P0401 [BP, BP With TC]

G00992747

Courtesy of MAZDA MOTORS CORP.
