Instrument Cluster Disassembly/Assembly

CAUTION: If the instrument cluster is dropped or damaged, the system will not work properly and it may be the cause of trouble or malfunction.

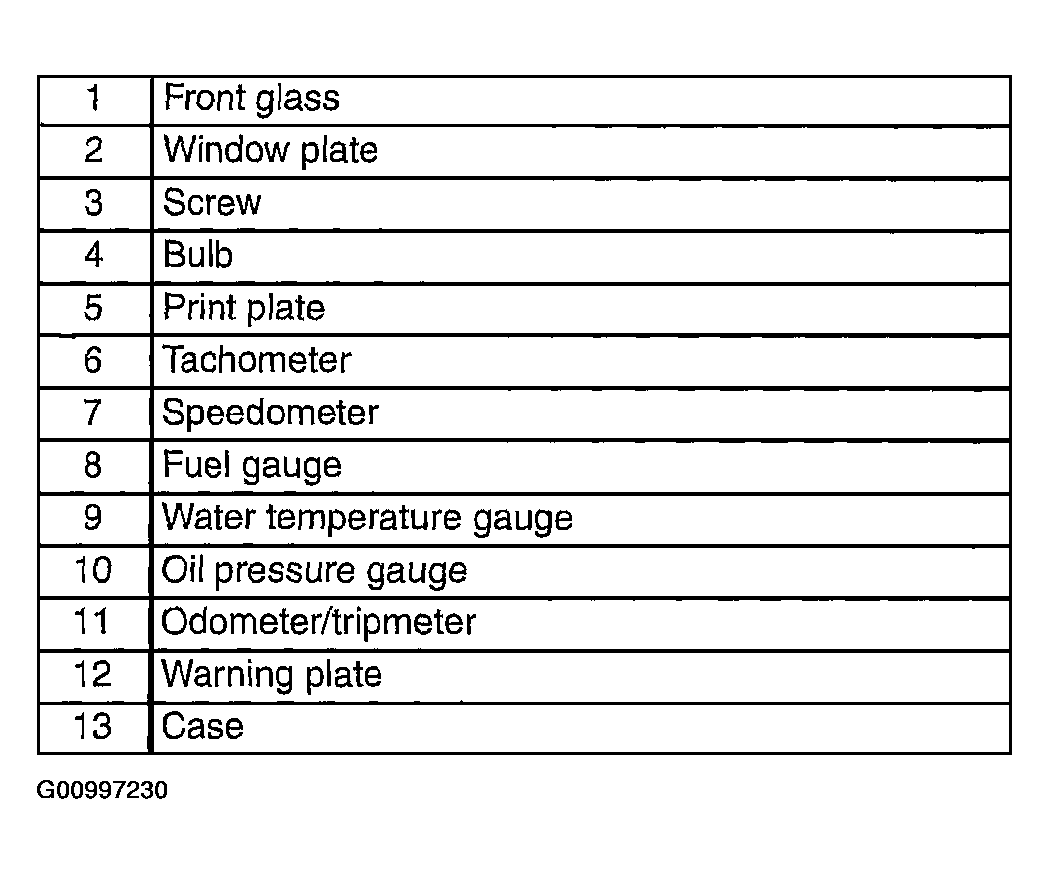

Fig 1: Instrument Cluster Disassembling/Assembling Sequence Order Table

Courtesy of MAZDA MOTORS CORP.

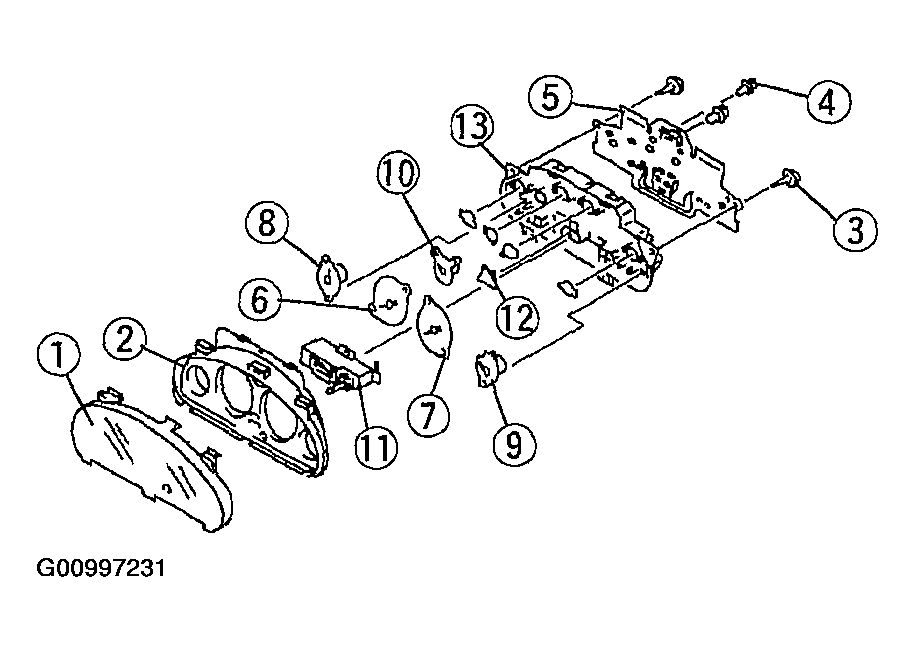

Fig 2: Disassembling/Assembling Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
