Rear Abs Wheel-Speed Sensor Removal/Installation

1. Remove in the order indicated in the illustration. See Fig 1 .
2. Install in the reverse order of removal.

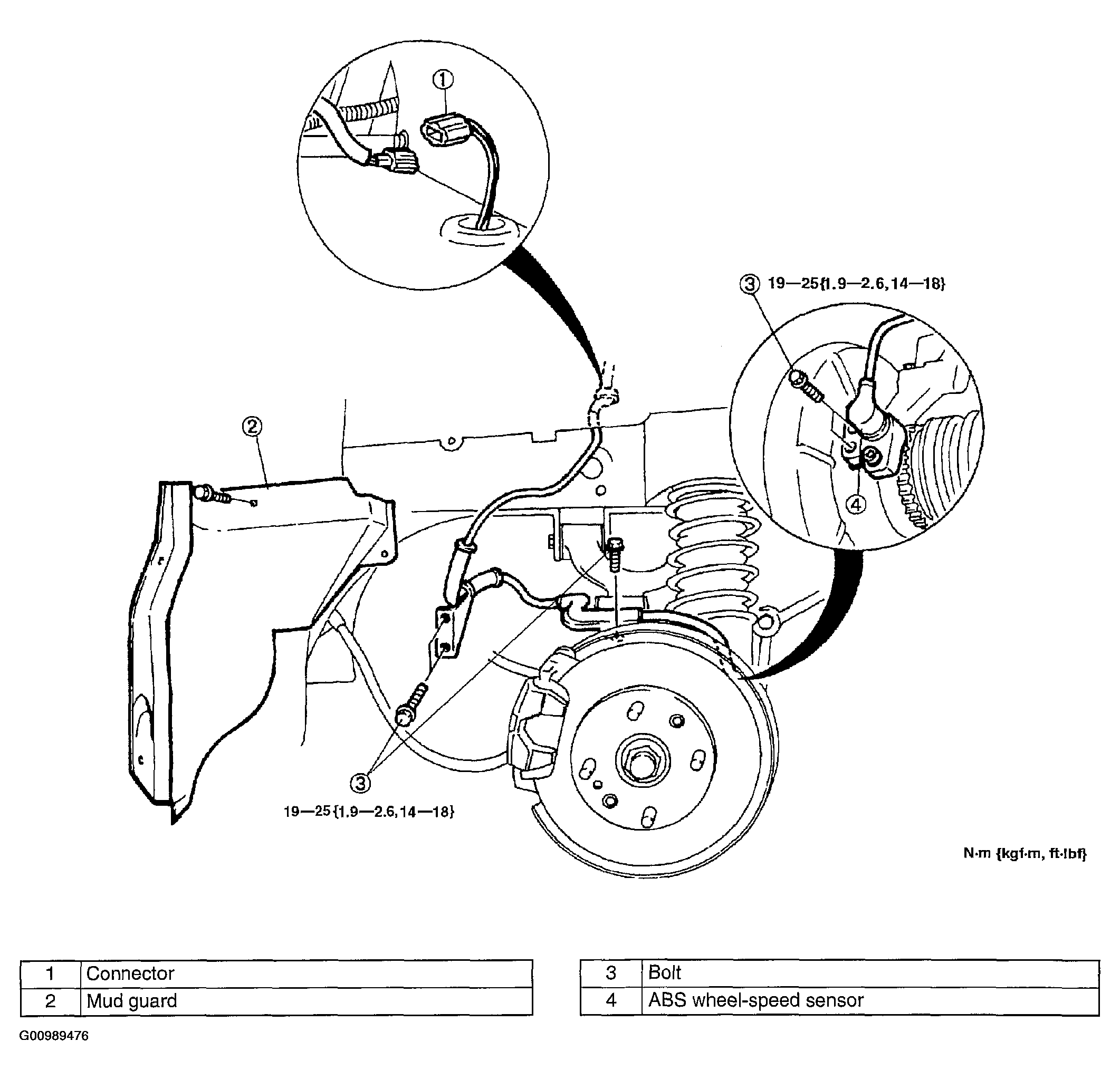

Fig 1: Removing/Installing Rear ABS Wheel-Speed Sensor

Courtesy of MAZDA MOTORS CORP.
