Abs Harness & Input Signal Inspection: Notes
- Disconnect the ABS HU/CM connector with the ignition switch at OFF.
CAUTION:
- Be careful not to damage the terminals during inspection.

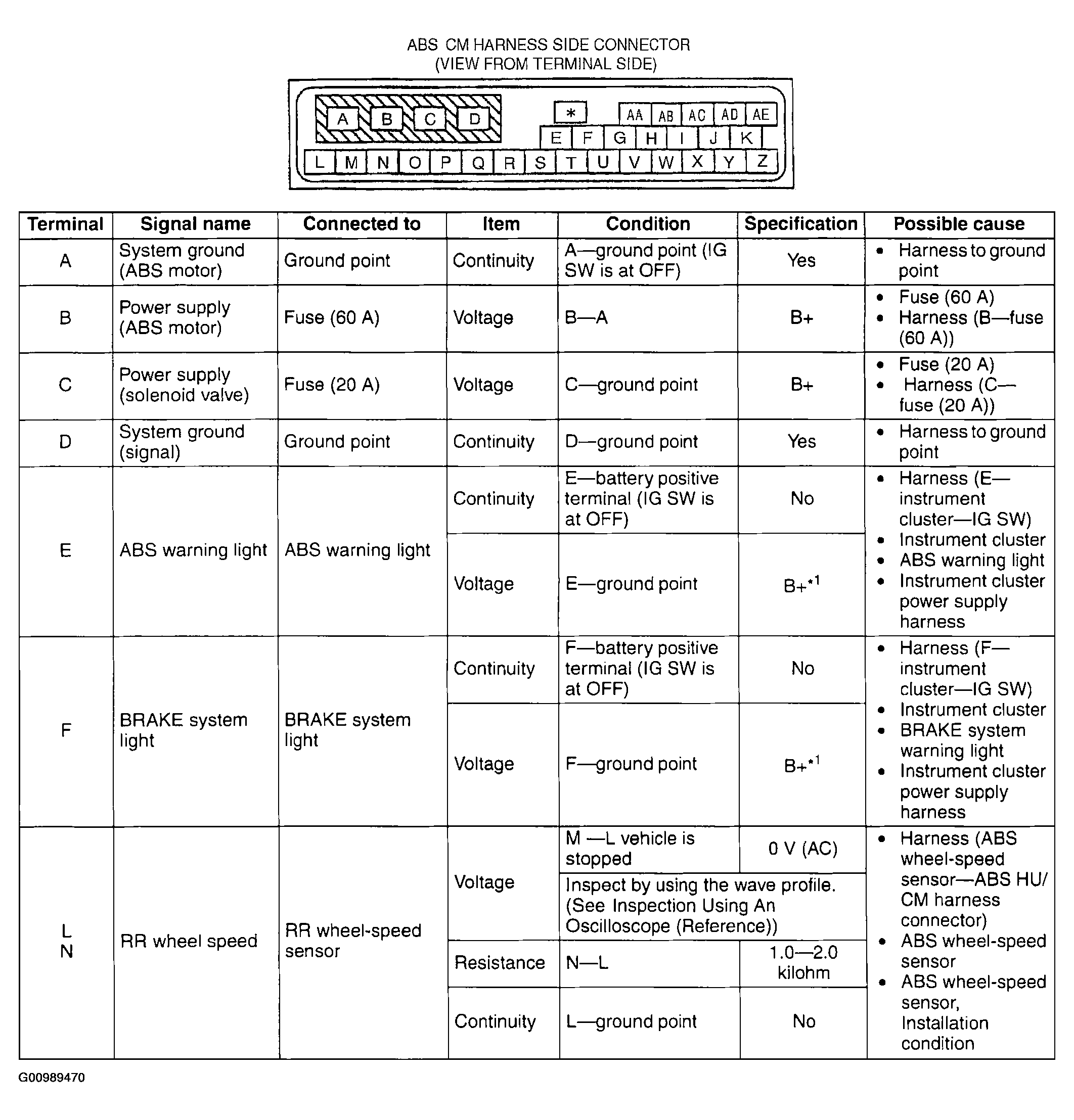

- Insert a thin isolation plate to the short bar of the connector (asterisk shown in the figure) and open circuit between terminal D and E, D and F.

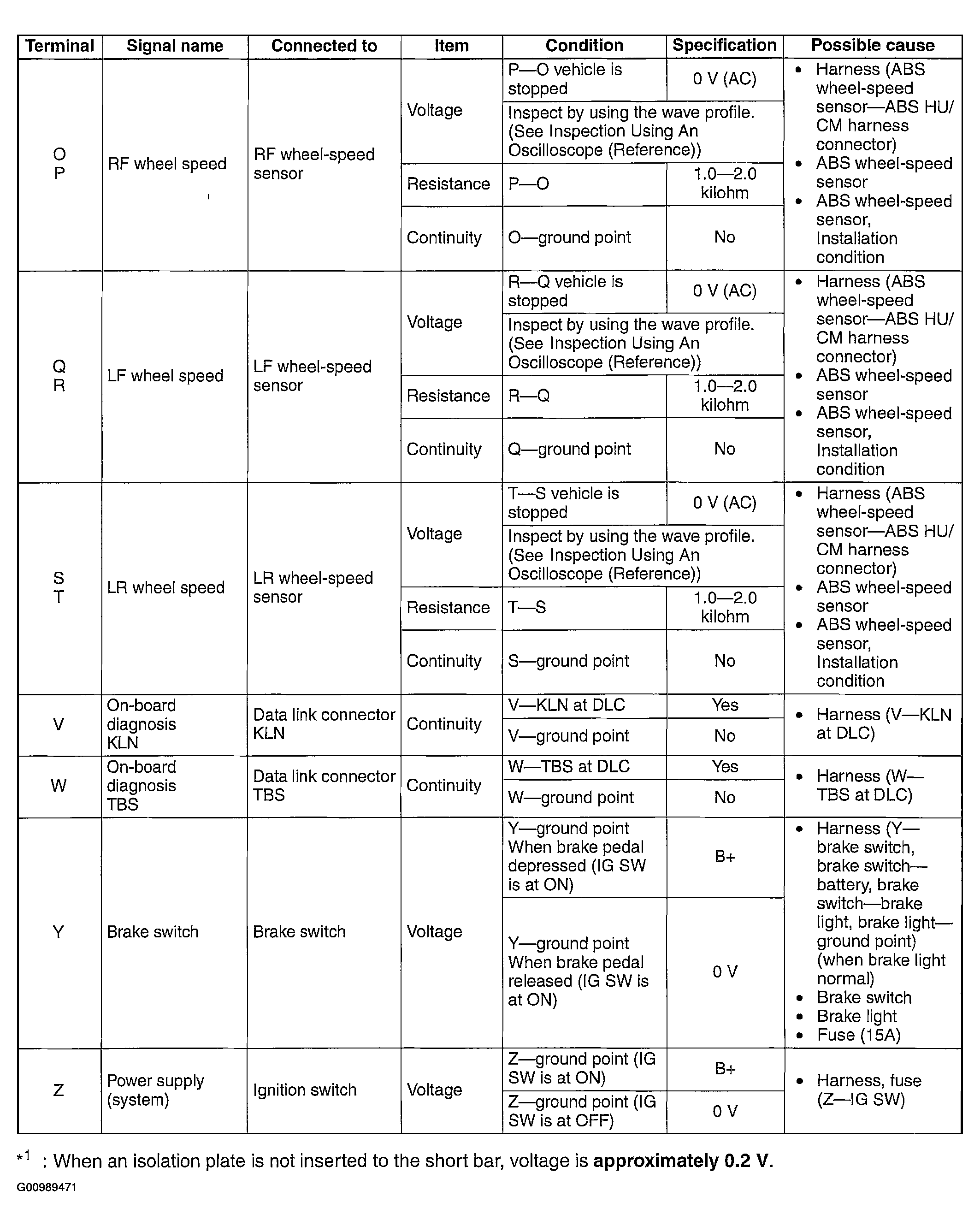

- Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the tables below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
