Brake Pipe Removal Note

  1. Mark the brake pipe connecting positions before removal for reference during installation.

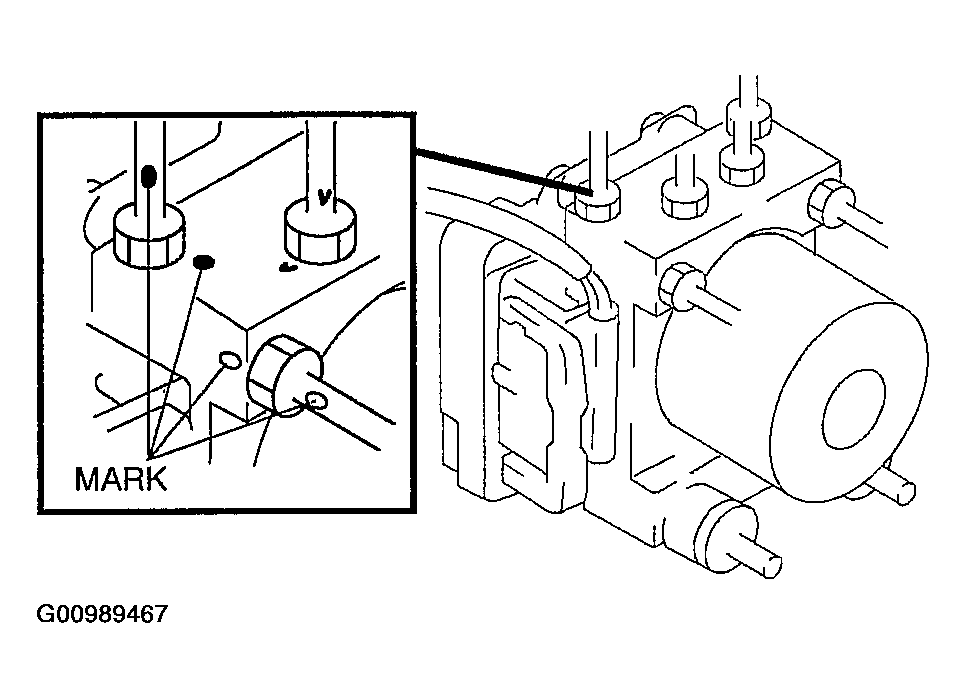

    Fig 1: Marking Brake Pipe
    G00989467Courtesy of MAZDA MOTORS CORP.
