Brake Pipe Installation Note

  1. When installing the brake pipe, align the marks made before removal with the ABS HU/CM as shown in the illustration.

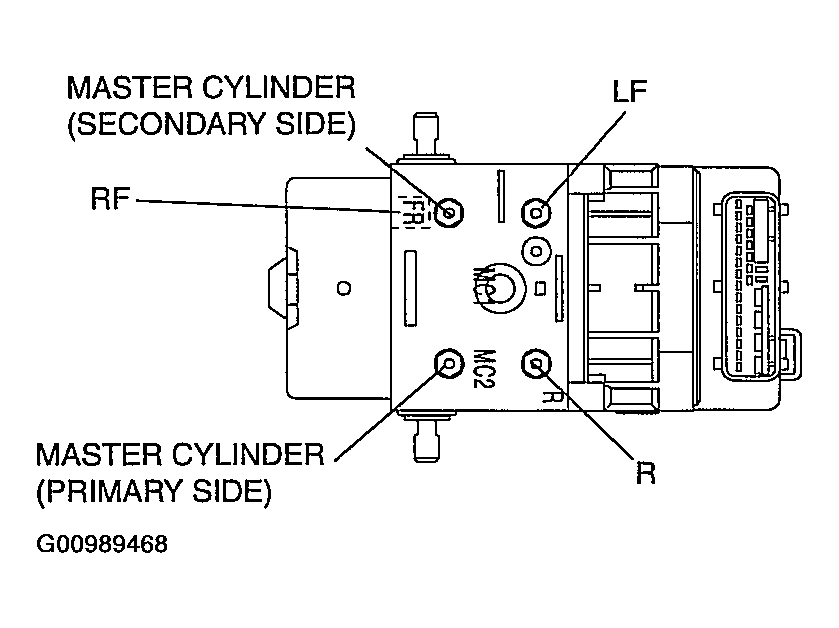

    Fig 1: Installing Brake Pipe
    G00989468Courtesy of MAZDA MOTORS CORP.
