Cruise Control Main Switch Inspection

Remove the cruise control main switch. See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION .
Inspect for continuity between the cruise control main switch terminals using an ohmmeter.

If not as specified, replace the cruise control main switch.

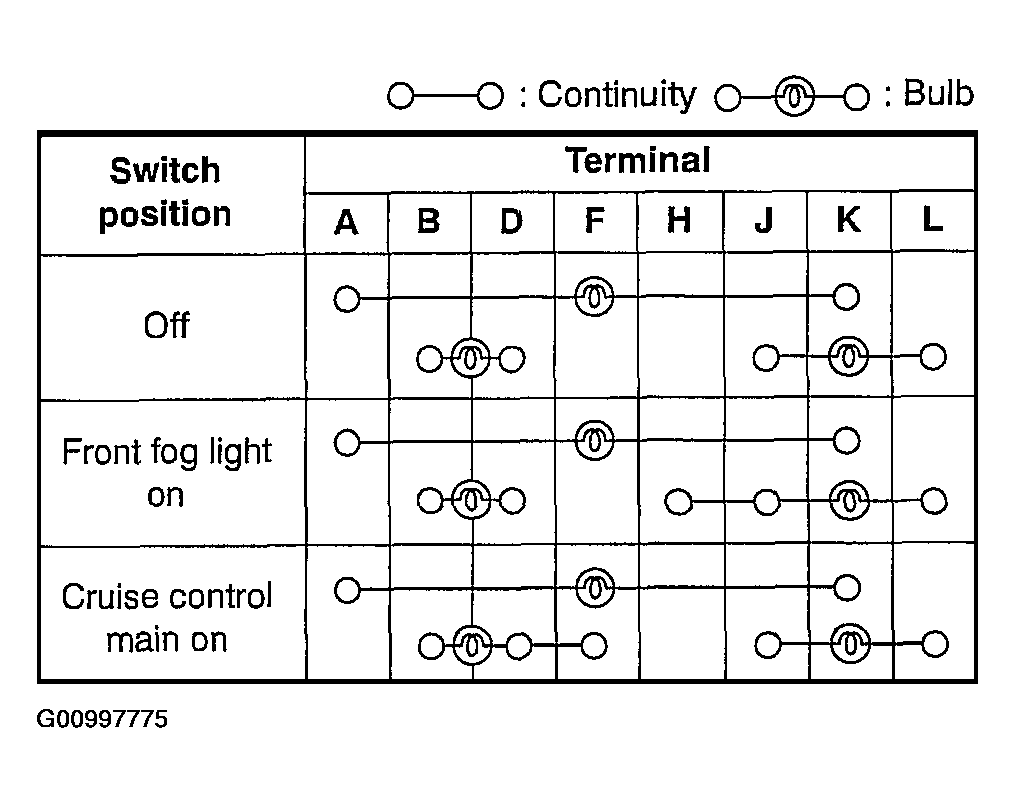

Fig 1: Inspecting Continuity Between Cruise Control Main Switch Terminals
Courtesy of MAZDA MOTORS CORP.

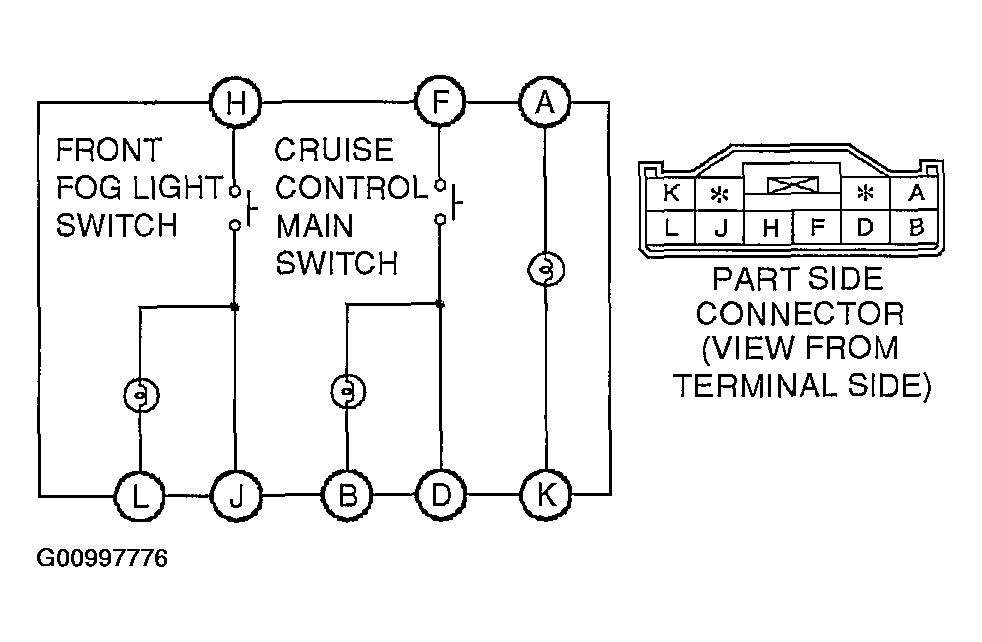

Fig 2: Inspecting Continuity Between Part Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
