Pinion Shaft Component Disassembly Note

  1. Push out the pinion shaft component from the valve housing as shown.
    NOTE:
    • If the pinion shaft does not come out easily, remove it using a press.

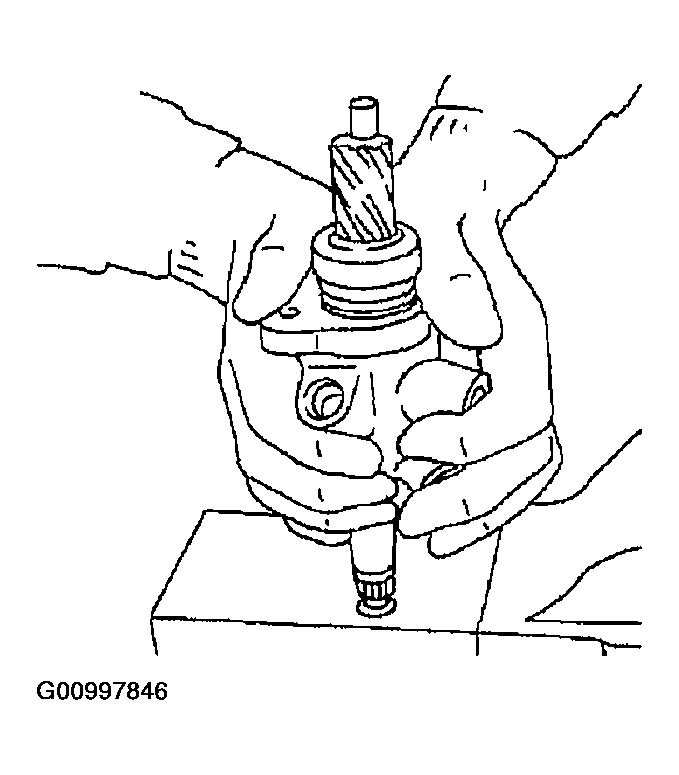

      Fig 1: Removing Pinion Shaft From Housing
      G00997846Courtesy of MAZDA MOTORS CORP.
