Oil Seal Assembly Note

  1. Apply grease to a new oil seal.
  2. Press in the new oil seal using the SSTs.

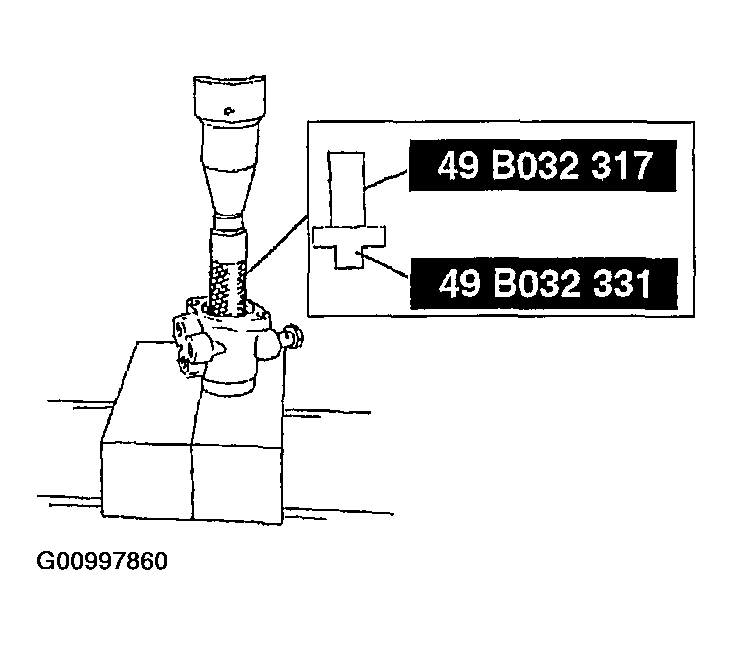

    Fig 1: Pressing New Oil Seal Using Special Service Tool
    G00997860Courtesy of MAZDA MOTORS CORP.
