Locknut Disassembly Note

  1. Remove the locknut using the SST

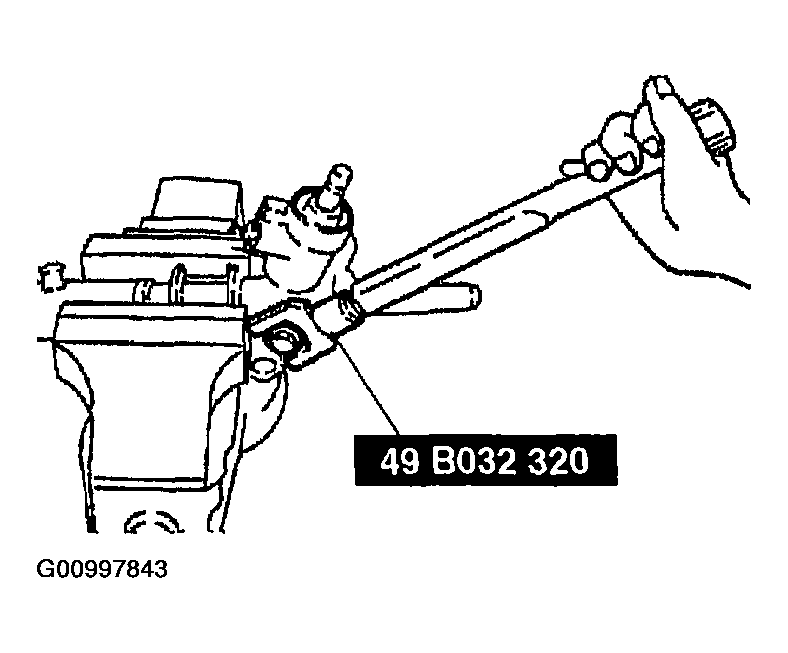

    Fig 1: Removing Locknut Using Special Service Tool
    G00997843Courtesy of MAZDA MOTORS CORP.
