Holder Disassembly Note

  1. Cut away the staked area using a drill
    CAUTION:
    • Carefully pull out the holder without damaging the U gasket.
  2. Remove the holder

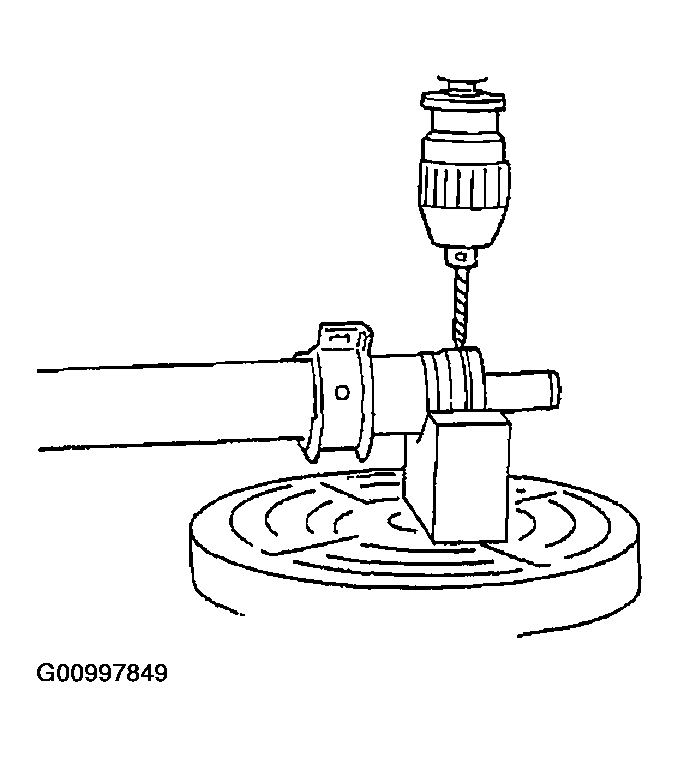

    Fig 1: Cutting Staked Area With Drill
    G00997849Courtesy of MAZDA MOTORS CORP.
