DTC P2187: Fuel System Too Lean At Idle: Notes

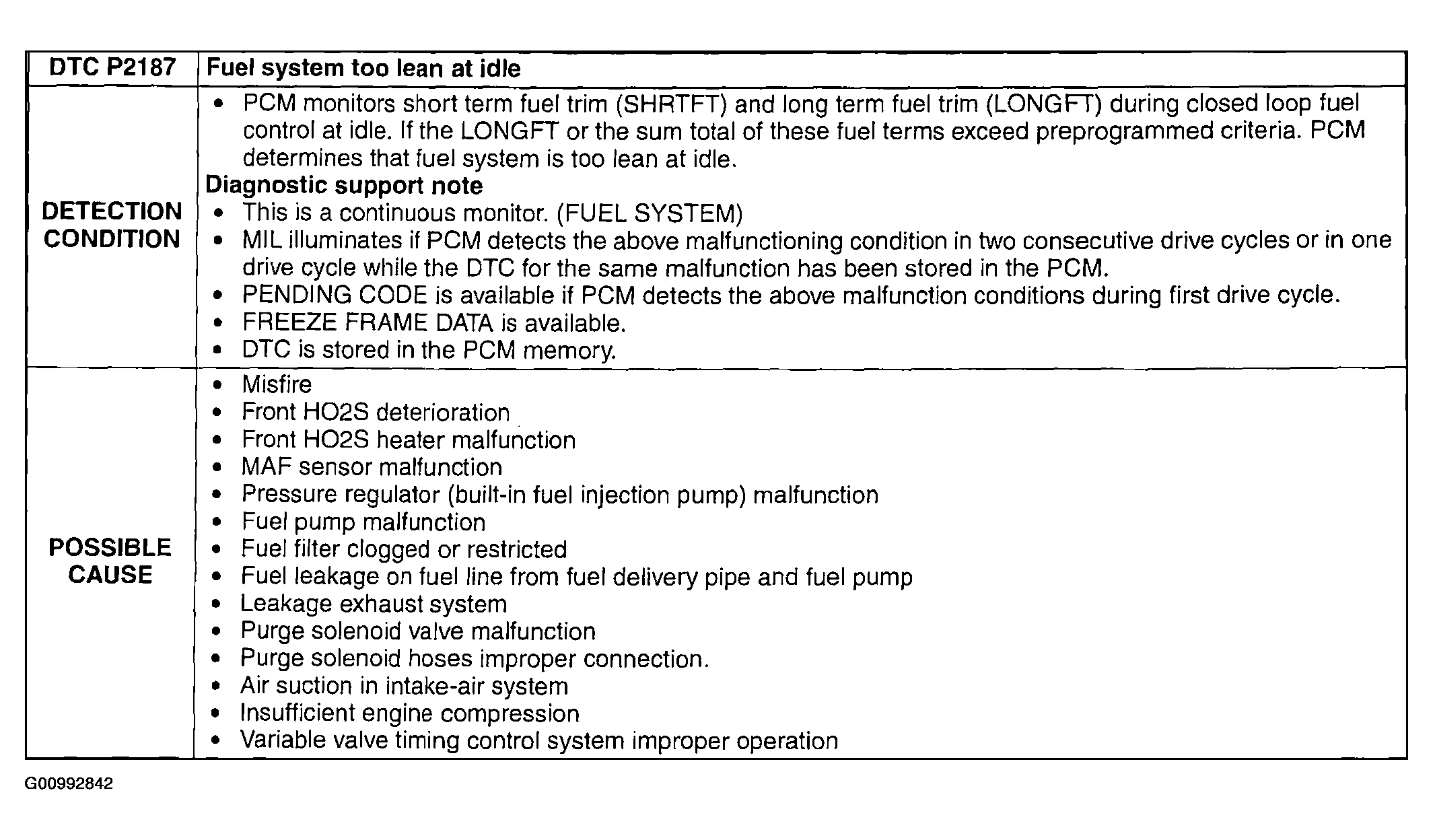

Fig 1: Possible Causes - DTC P2187 [BP, BP With TC]

G00992842

Courtesy of MAZDA MOTORS CORP.
