Circuit Open/Short Inspection: Notes

  1. Remove the PCM connector cover.
  2. Disconnect the PCM connector.
  3. Inspect the following wiring harness for open or short circuit (continuity check).

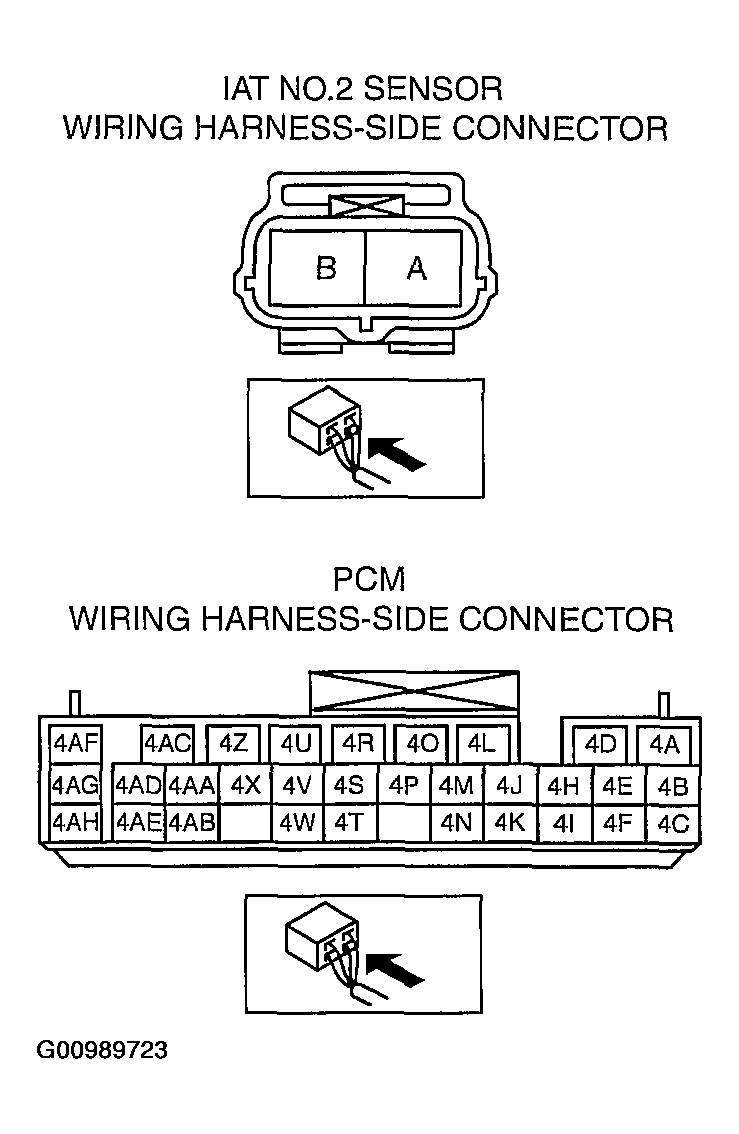

    Fig 1: Locating IAT No. 2 Sensor Connector & PCM Connector & Terminal Views
    G00989723Courtesy of MAZDA MOTORS CORP.
