Control System Wiring Diagram [BP With TC]

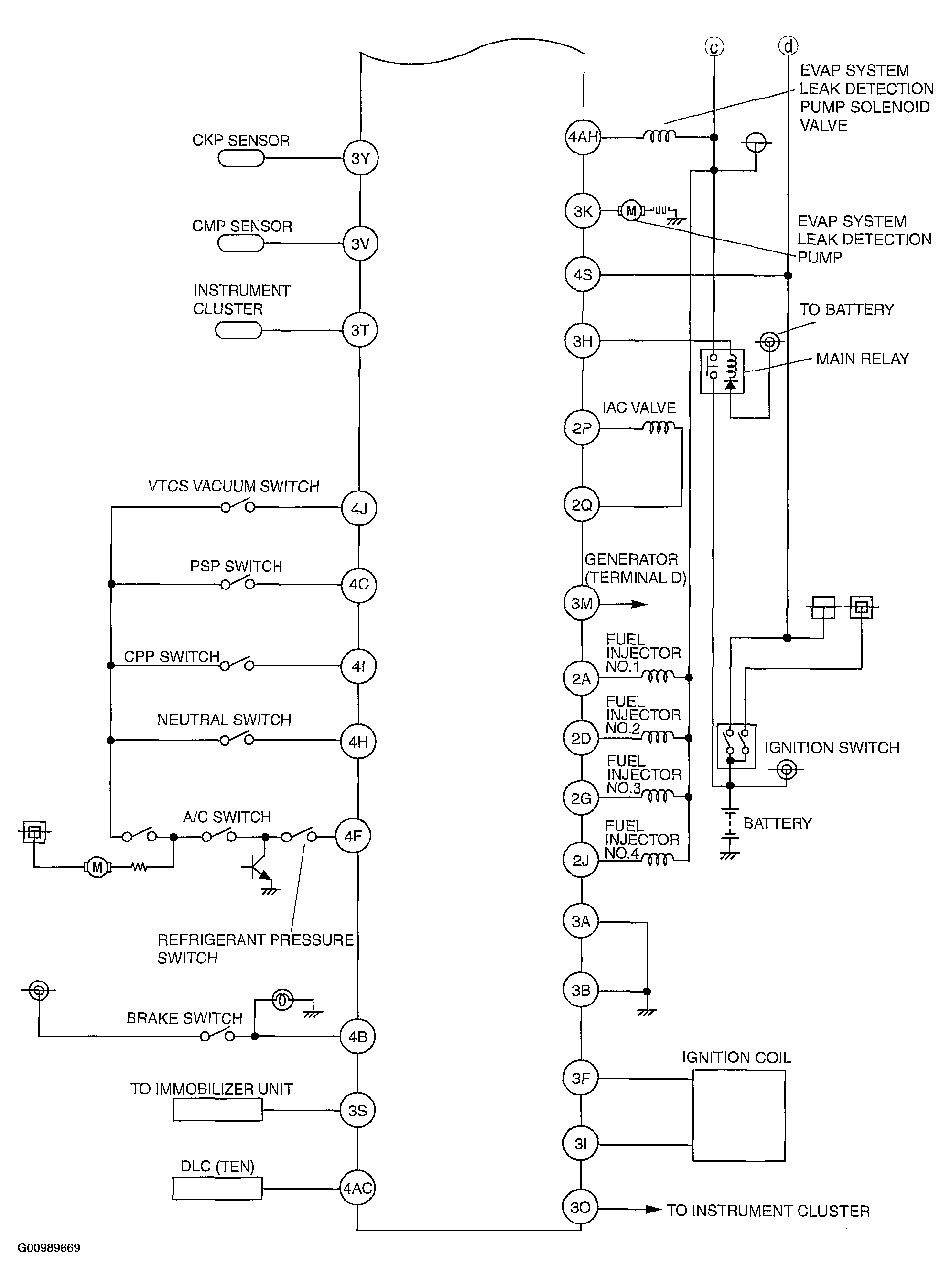

Fig 1: Identifying Control System Wiring Diagram [BP With TC] (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

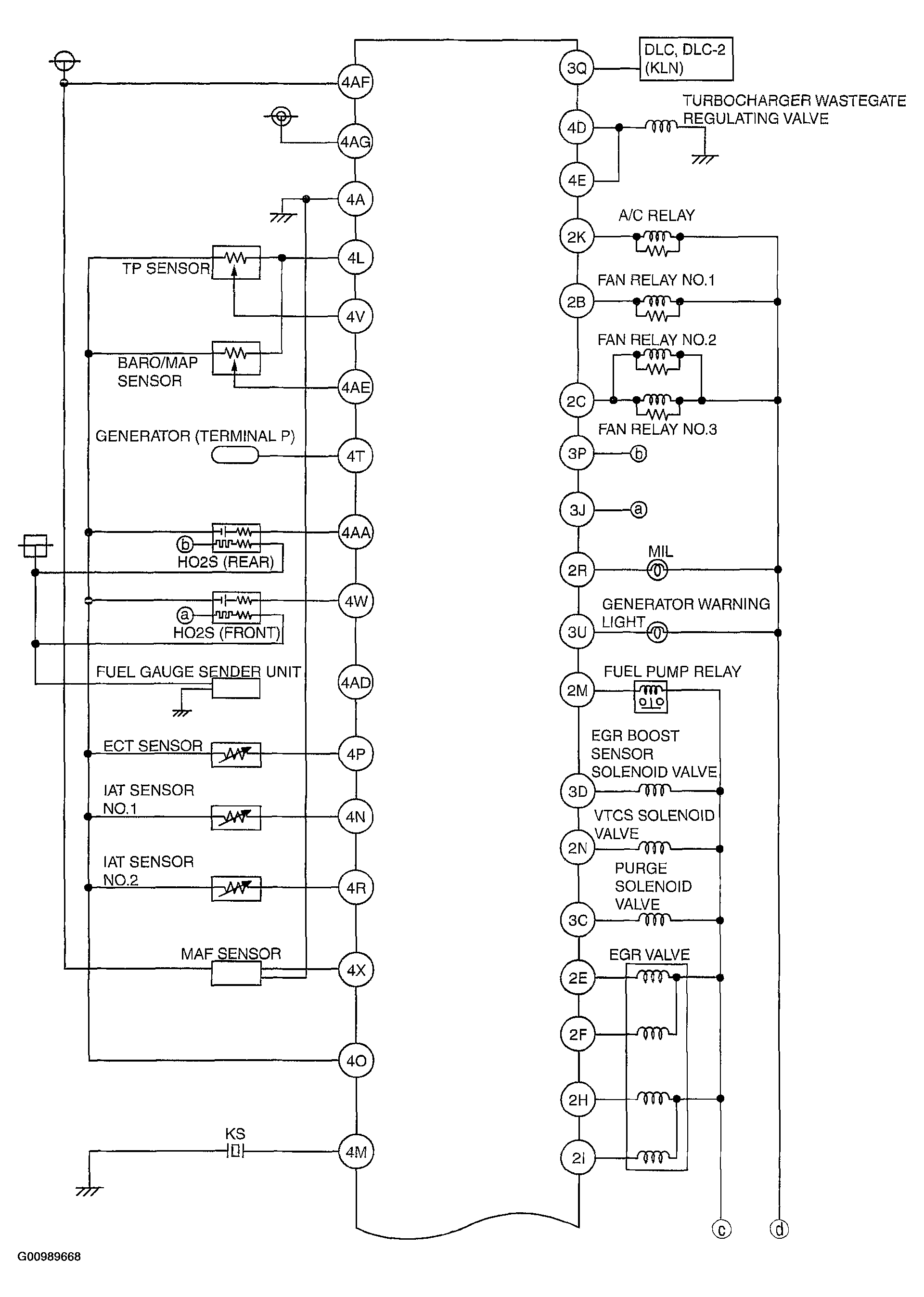

Fig 2: Identifying Control System Wiring Diagram [BP With TC] (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
