Pulsation Damper No.1 Removal/Installation

  1. Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION .
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the illustration.
    Fig 1: Removing/Installing Pulsation Damper No. 1 [BP, BP With TC]
    G00990112Courtesy of MAZDA MOTORS CORP.

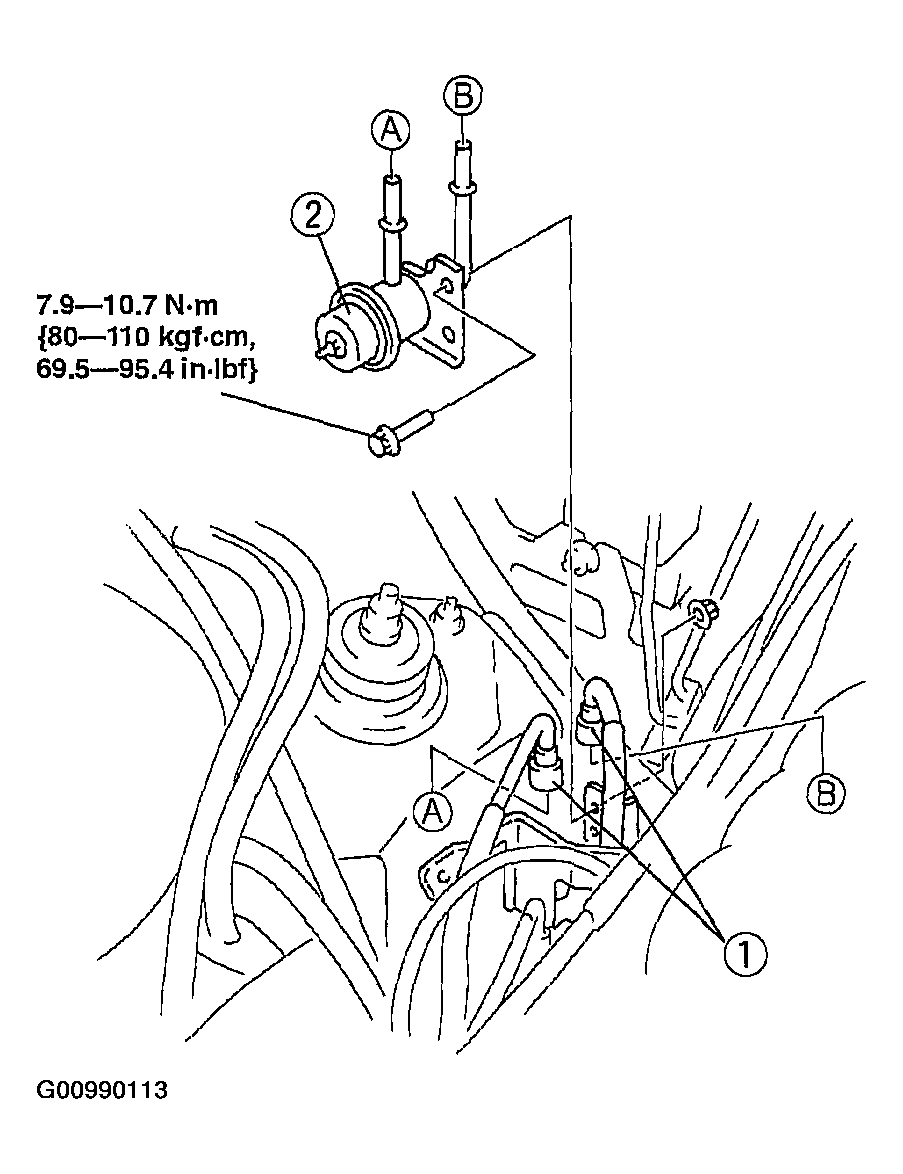

    Fig 2: Removing Pulsation Damper No. 1
    G00990113Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION .
