NONRETURN Valve Inspection

  1. Remove the nonreturn valve. See FUEL TANK REMOVAL/INSTALLATION .
  2. Verify that the nonreturn valve operates under its own weight.
    • If the valve does not operate, replace the nonreturn valve.

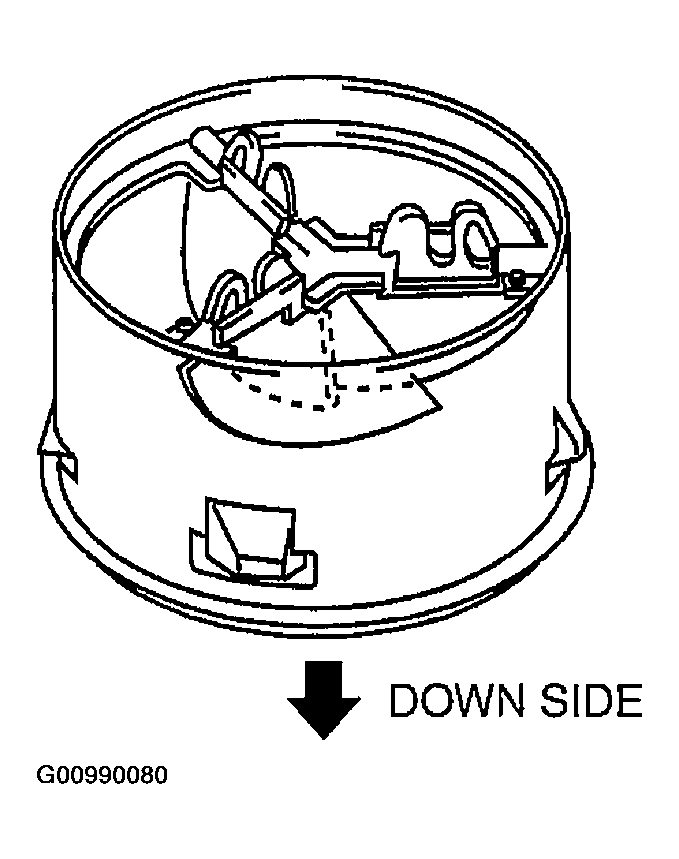

    Fig 1: Inspecting Non-Return Valve [BP, BP With TC]
    G00990080Courtesy of MAZDA MOTORS CORP.
