Valve Guide Inspection

Measure the inner diameter of each valve guide in X and Y directions at the three points (A, B, and C) shown. Replace the valve guide as necessary.
Standard Inner Diameter
1. 6.02-6.04 mm {0.2371-0.2377 in}

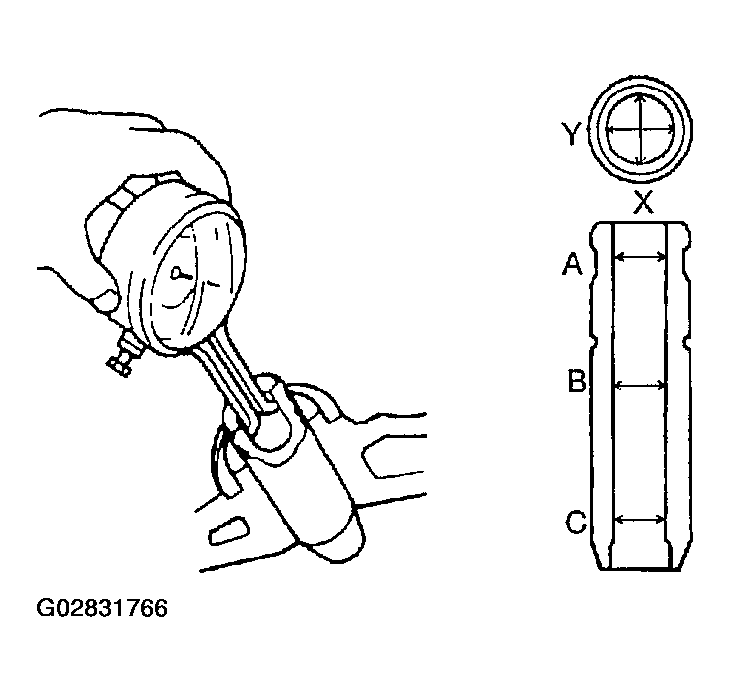

  Fig 1: Measuring Valve Guide Inner Diameter
  Courtesy of MAZDA MOTORS CORP.
Measure the protrusion height (dimension A) of each valve guide without the lower valve spring seat. Replace the valve guide as necessary.
Standard Height
1. 18.3-18.9 mm {0.721-0.744 in}

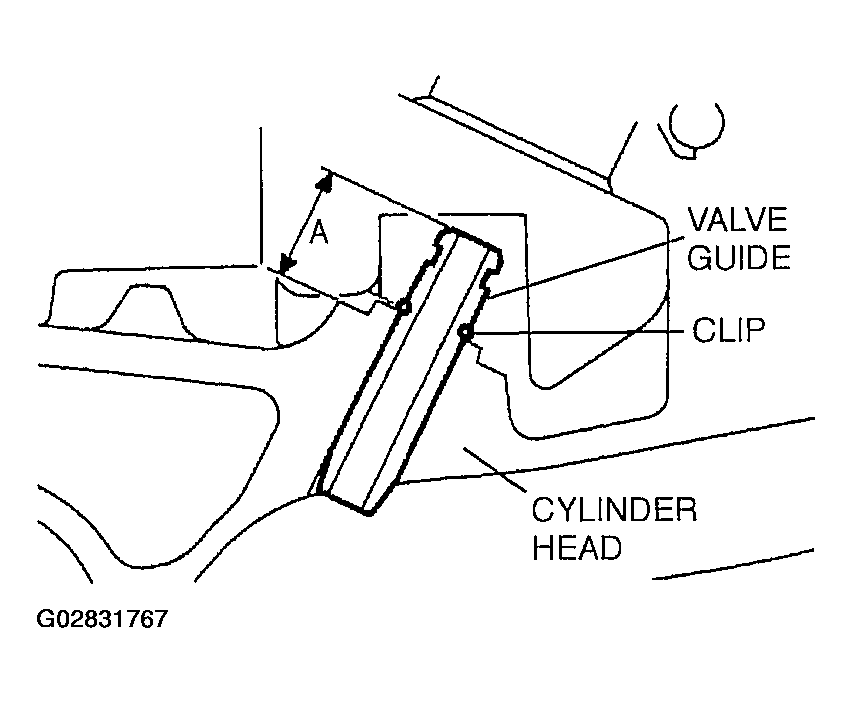

  Fig 2: Measuring Valve Guide Protrusion Height
  Courtesy of MAZDA MOTORS CORP.
