Timing Belt Pulley And Key Assembly Note

Insert the key into the timing belt pulley, facing the tapered side downward. Push the key until it stops.

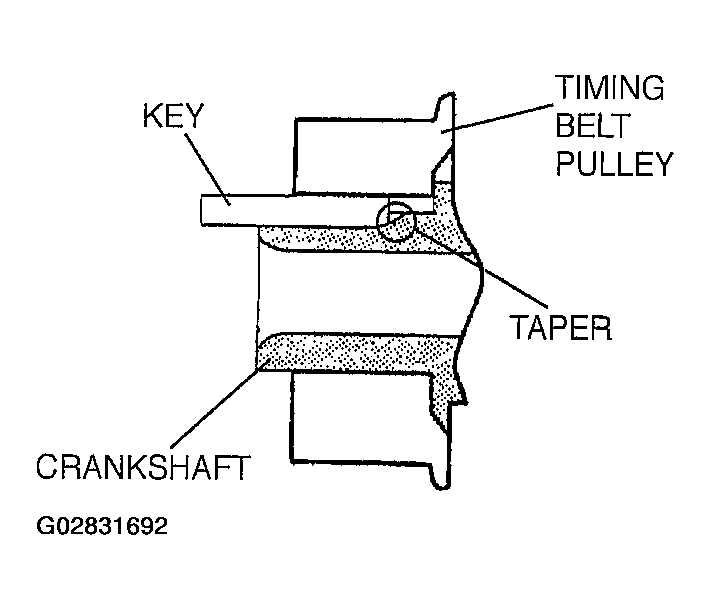

Fig 1: Installing Timing Belt Pulley Key
Courtesy of MAZDA MOTORS CORP.
